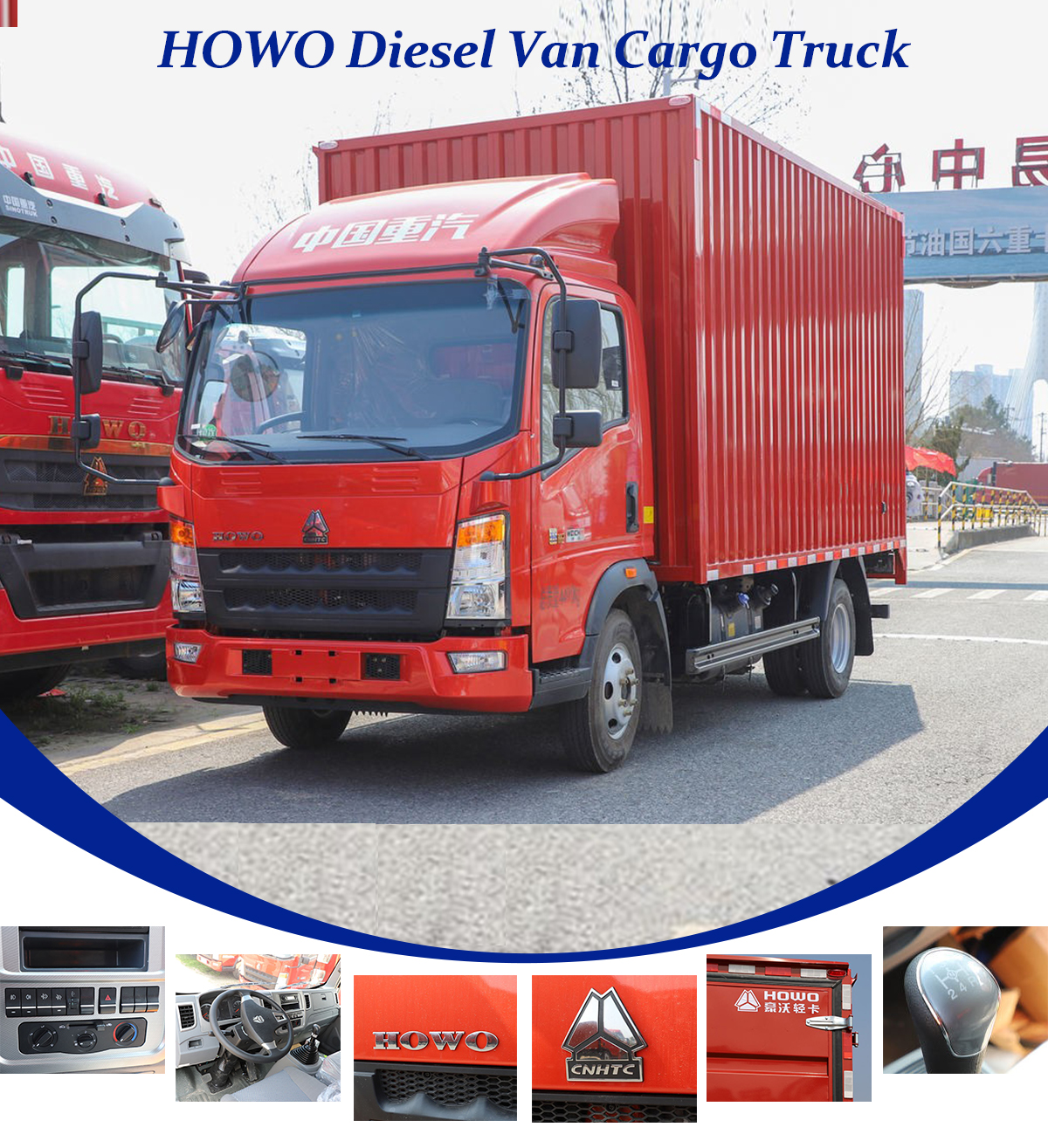

| Basic Information | |||
| Model number announced: | ZZ5047XXYG3215F144B | type: | Box truck |
| Drive type: | 4X2 | Wheelbase: | 3280mm |
| Container length level: | 4.2 meters | engine: | Weichai WP2.3Q140E62 |
| Transmission: | Wanliyang WLY5G32 | Rear axle ratio: | 4.875 |
| Vehicle length: | 5.99 meters | Vehicle width: | 2.17 meters |
| Vehicle height: | 3.1 meters | Front track: | 1670mm |
| Rear track: | 1555mm | Total vehicle weight: | 2.8 tons |
| Rated load: | 1.56 tons | Total mass: | 4.49 tons |
| Maximum speed: | 95km/h | Place of origin: | Zhangqiu, Shandong |
| Tonnage class: | light truck | Driver's license: | A1, A2, B1, B2, C1 |
| Approach angle: | 18 degrees | Departure angle: | 17 degrees |
| Front/Rear Suspension: | 1.16/1.47 meters | *License plate (yellow/blue): | Blue Plate |
| Energy type: | diesel fuel | ||
| Engine parameters | |||
| Engine brand: | Weichai | Engine model: | Weichai WP2.3Q140E62 |
| Engine information: | Weichai 2.3L | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.289L | Emission standards: | National VI |
| Maximum output power: | 103kW | Maximum horsepower: | 140 horsepower |
| Maximum torque: | 320Nm | Maximum torque speed: | 1600-2400rpm |
| Rated speed: | 3200rpm | Engine type: | High-pressure common rail |
| Engine oil change interval: | 50,000 kilometers | ||
| Transmission parameters | |||
| Transmission model: | Wanliyang WLY5G32 | Gearbox brand: | Wanliyang |

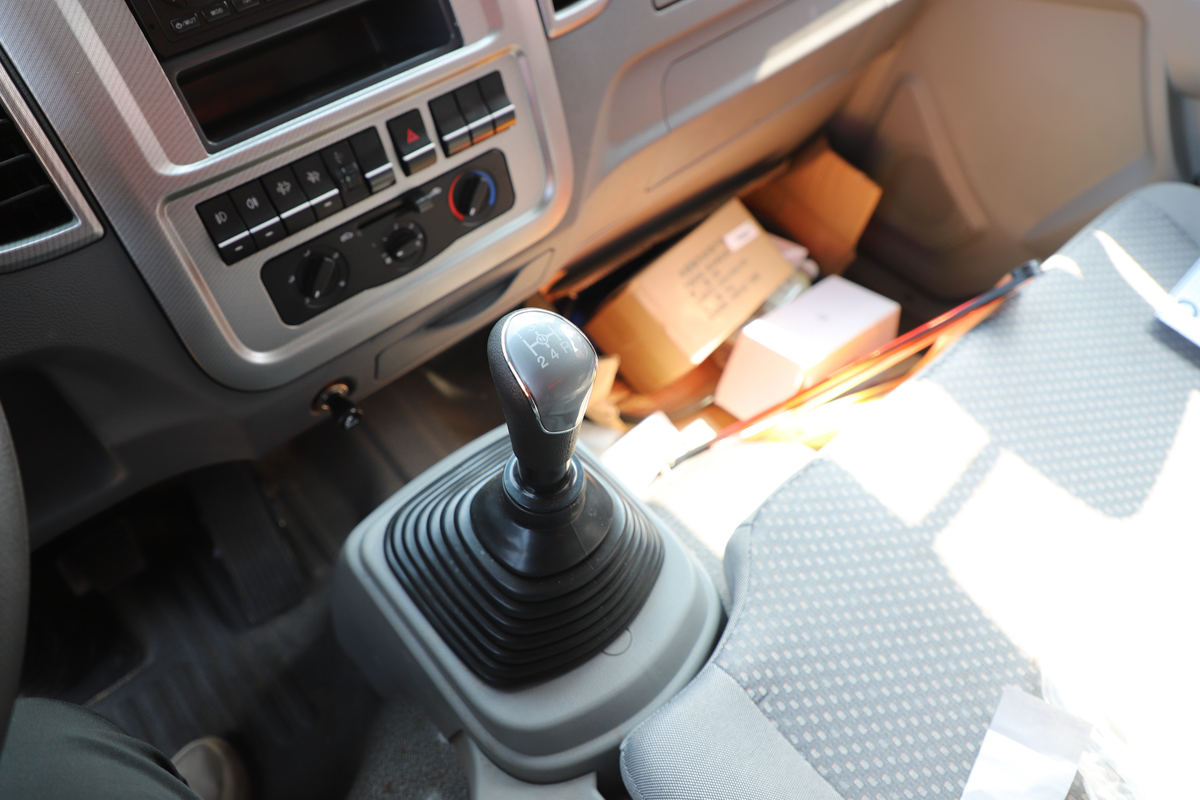

| Gear shifting method: | Manual | Forward gear: | 5 gears |
| Number of inverted boxes: | 1 | ||

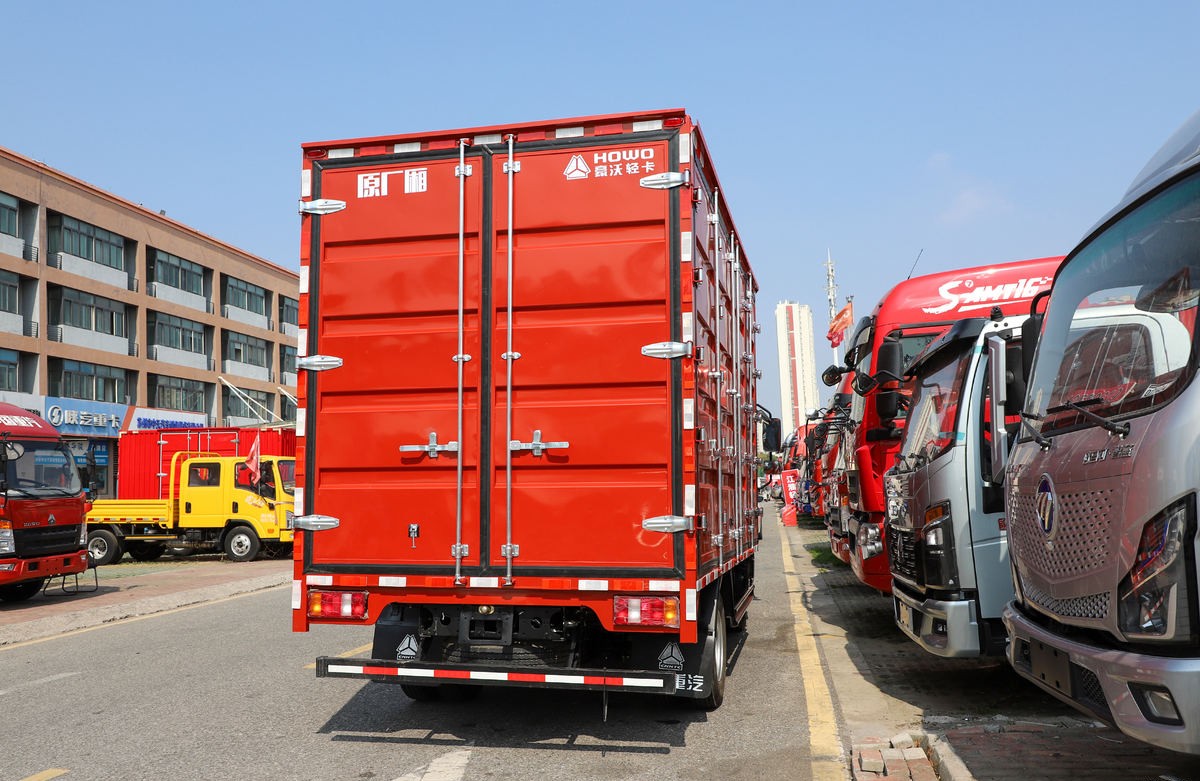

| Cargo box parameters | |||
| Cargo container type: | Box | Cargo box length: | 4.15 meters |
| Cargo box width: | 2.1 meters | Cargo box height: | 2.1 meters |
| * Cargo compartment internal width: | 2.1 | ||

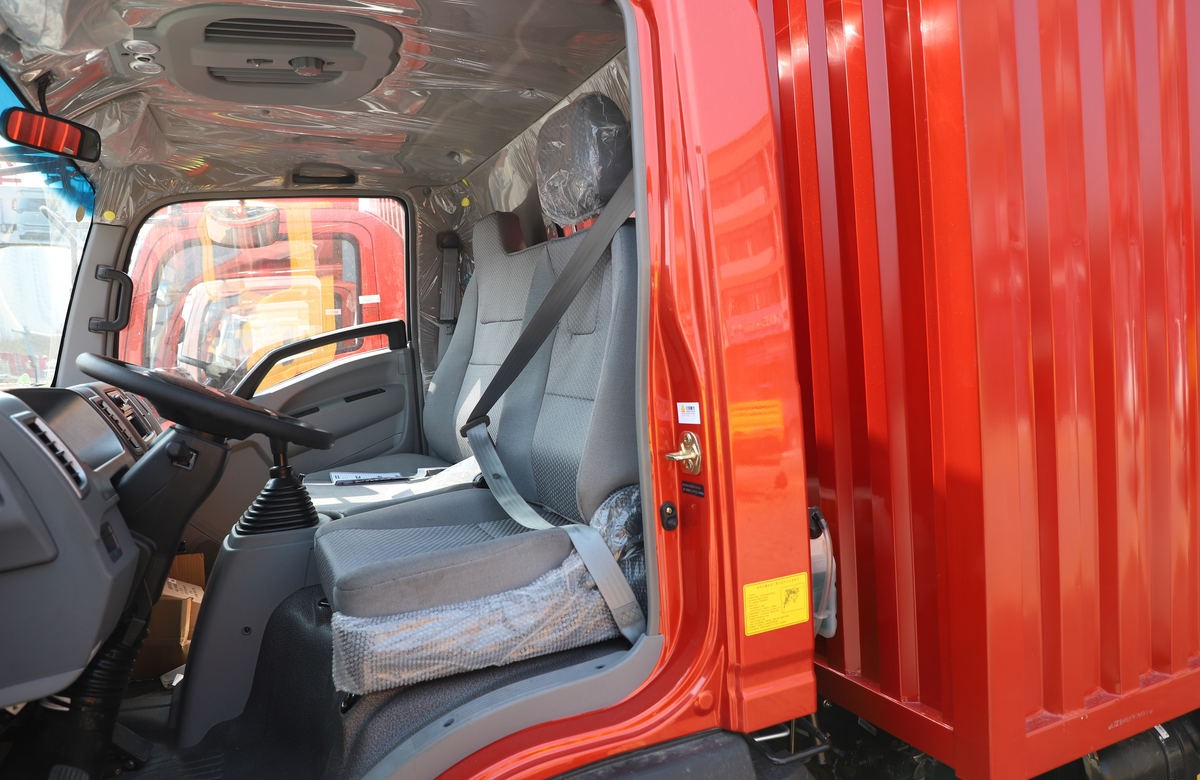

| Cab parameters | |||
| Passenger capacity: | 3 people | Number of rows of seats: | single row |
| Chassis parameters | |||
| Front axle allowable load: | 1790kg | Rear axle allowable load: | 2700kg |
| Speed atio: | 4.875 | Number of leaf springs: | 3/5+3 |
| tire | |||
| Tire specifications: | 7.00R16LT 10PR | Number of tires: | 6 |
| *Tire specifications (imperial units): | 7 | ||
| Internal configuration | |||
| Steering wheel material: | Genuine Leather | Steering wheel adjustment: | Manual |
| Lighting configuration | |||
| Headlight Brand: | Original parts for China National Heavy Duty Truck Group light trucks | Front fog lights: | /font |
| Braking | |||
| Vehicle braking type: | air brake | Parking brake: | Air brake |
| Engine braking: | In-cylinder braking | Exhaust braking: | /font |
| Hydraulic retarder: | - | Front wheel brakes: | Standard configuration includes drum brakes; disc brakes are optional. |
| Rear wheel brakes: | Drum | ||
