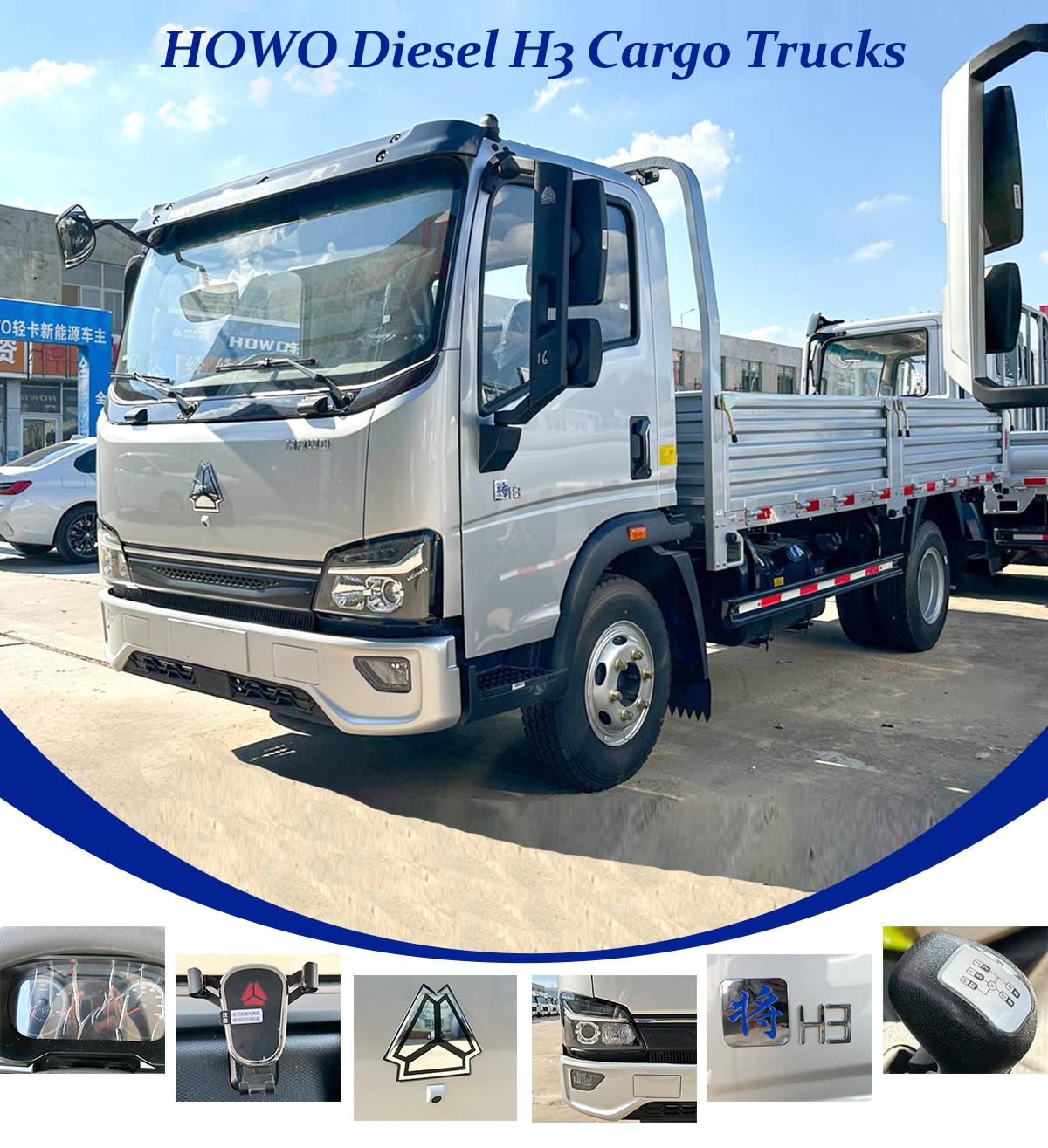

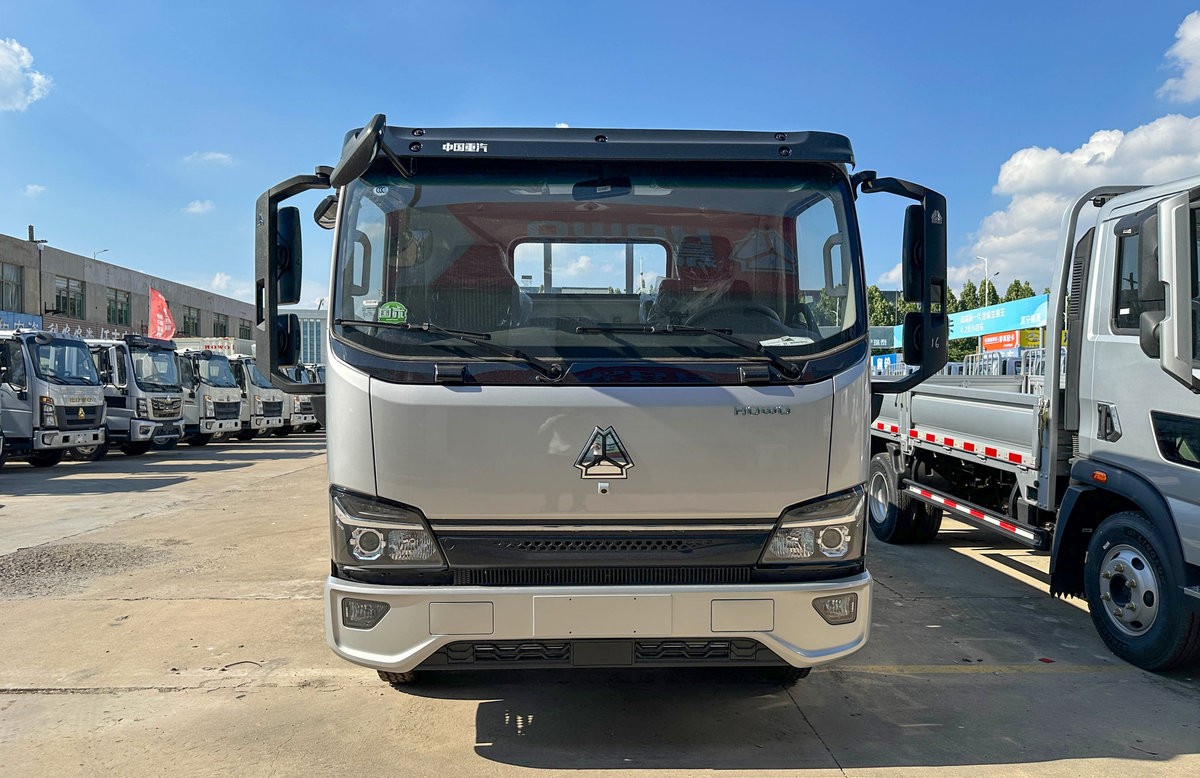

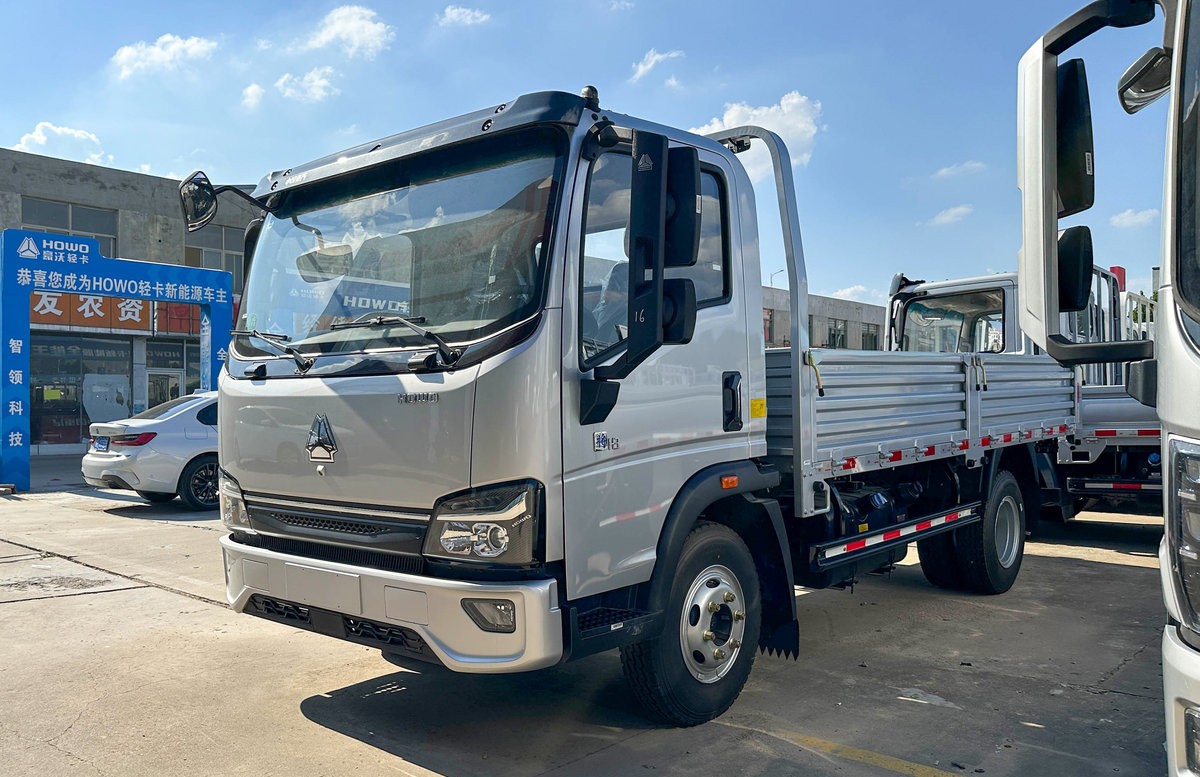

| Basic Information | |||
| Model number announced: | ZZ1047G3215F144B | type: | cargo trucks |
| Drive type: | 4X2 | Wheelbase: | 3280mm |
| Container length level: | 4.2 meters | engine: | Weichai WP25Q151E62 |
| Transmission: | Wanliyang WLY8GS46 | Rear axle ratio: | 4.875 |
| Vehicle length: | 5.99 meters | Vehicle width: | 2.2 meters |
| Vehicle height: | 2.5 meters | Front track: | 1620mm |
| Rear track: | 1645mm | Total vehicle weight: | 2.33 tons |
| Rated load: | 1.965 tons | Total mass: | 4.49 tons |
| Maximum speed: | 95km/h | Place of origin: | Zhangqiu, Shandong |
| Tonnage class: | light truck | Driver's license: | A1, A2, B1, B2, C1 |
| Approach angle: | 18 degrees (°) | Departure angle: | 17 degrees (°) |
| Front/Rear Suspension: | 1.16/1.55 meters | Version: | 2025 model |
| *License plate (yellow/blue): | Blue Plate | Energy type: | diesel fuel |
| Engine parameters | |||
| Engine brand: | Weichai | Engine model: | Weichai WP25Q151E62 |
| Engine information: | Weichai 2.3L | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.289L | Emission standards: | National VI |
| Maximum output power: | 109kW | Maximum horsepower: | 151 horsepower |
| Maximum torque: | 340N·m | Maximum torque speed: | 2200-2400rpm |
| Rated speed: | 3200rpm | Engine type: | Electronically controlled high-voltage common rail + Hi-SCR |

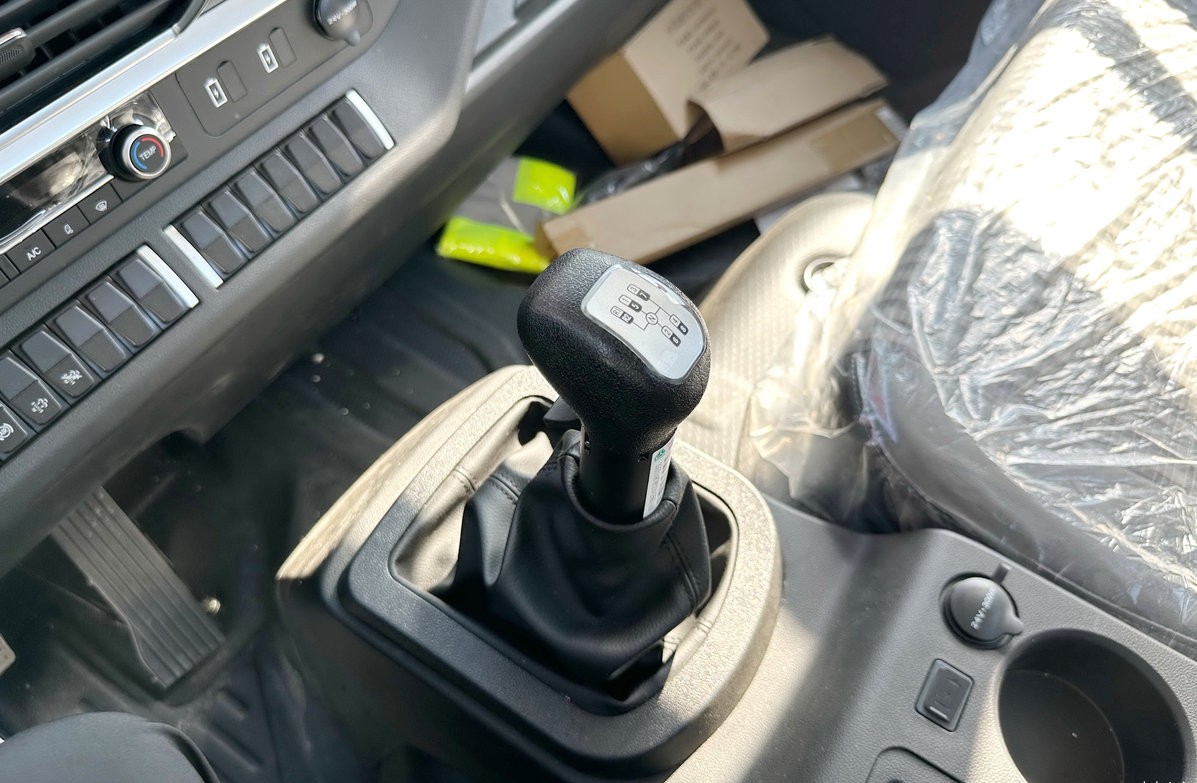

| Transmission parameters | |||
| Transmission model: | WLY8GS46 | Gearbox brand: | Wanliyang |
| Gear shifting method: | Manual | Forward gear: | 8 gears |
| Number of inverted boxes: | 2 | ||

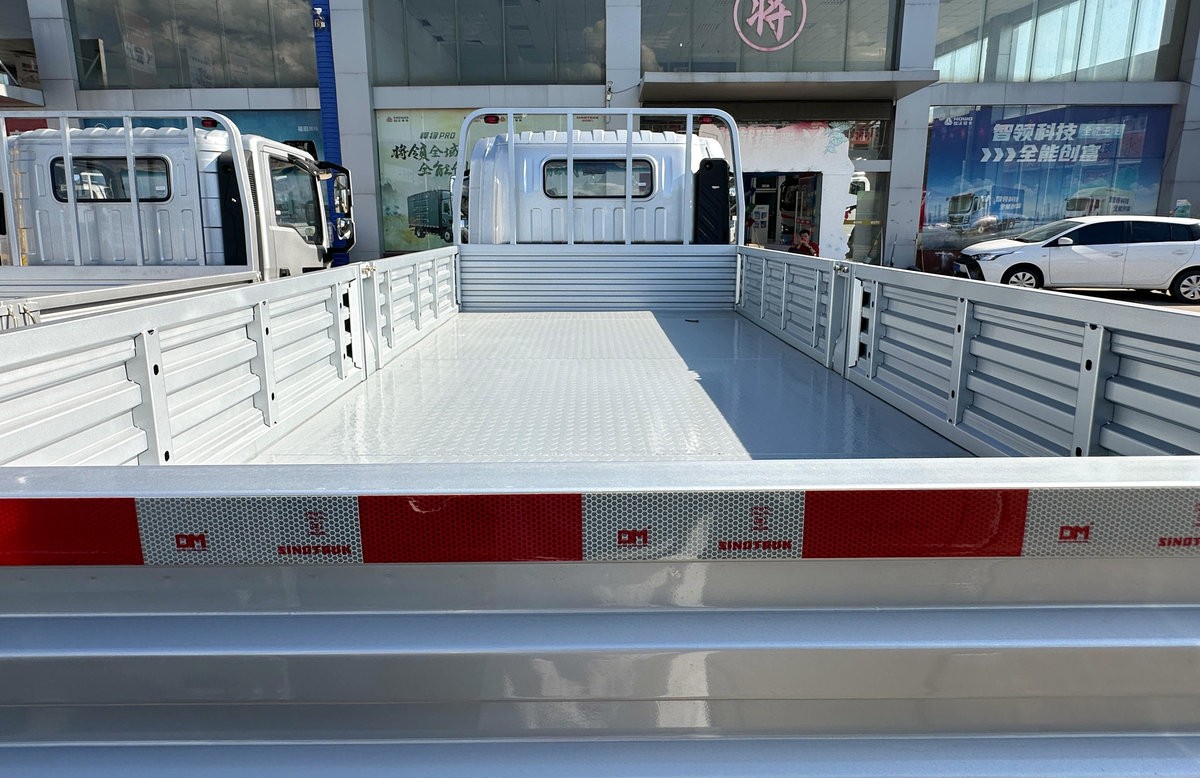

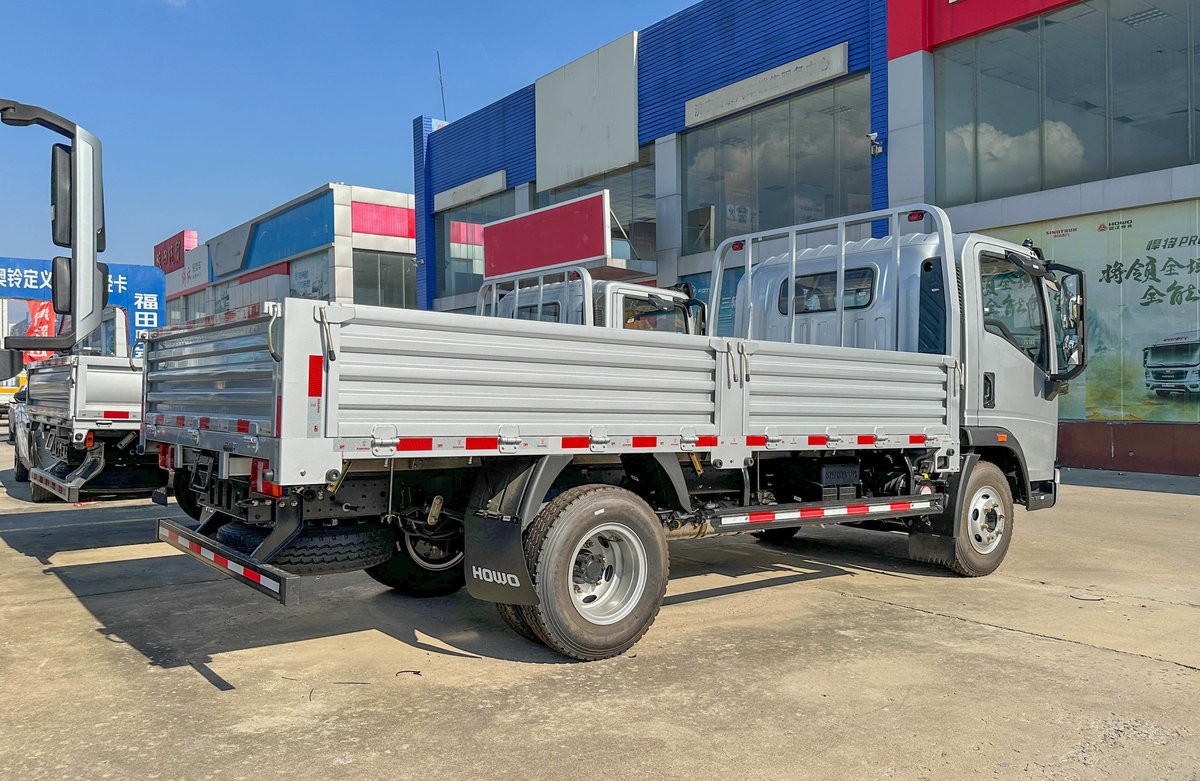

| Cargo box parameters | |||
| Cargo container type: | Parapet | Cargo box length: | 4.15 meters |
| Cargo box width: | 2.1 meters | Cargo box height: | 0.4 meters |
| Cab parameters | |||
| Cab width: | 2080mm | Passenger capacity: | 3 people |
| Number of rows of seats: | single row | ||
| Fuel tank | |||
| Fuel tank capacity: | 120L | ||
| Chassis parameters | |||
| Front axle allowable load: | 1790kg | Rear axle description: | 5T |
| Rear axle allowable load: | 2700kg | Speed ratio: | 4.875 |
| Number of leaf springs: | 3/5+3,3/8+6 | Aluminum alloy wheels: | ○ |
| Tire | |||
| Tire specifications: | 7.00R16LT 8PR | Number of tires: | 6 |
| *Tire specifications (imperial units): | 7 | ||

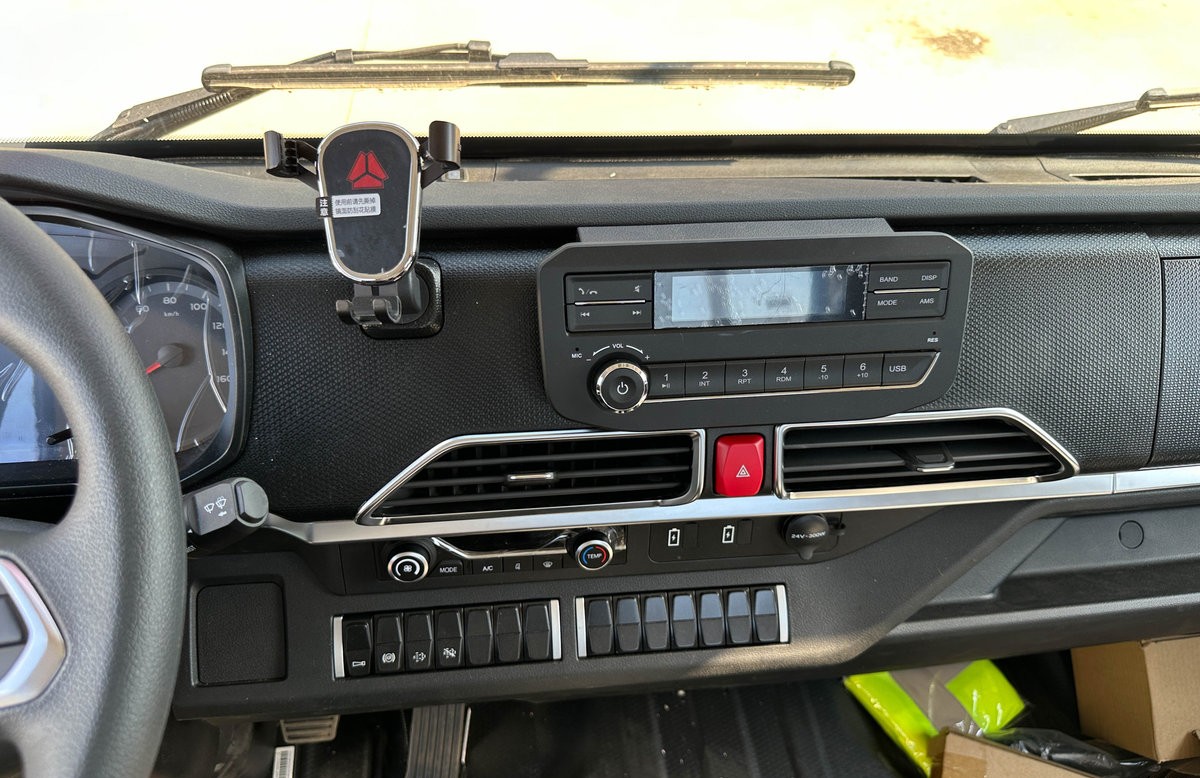

| Internal configuration | |||
| Steering wheel material: | Genuine Leather | Steering wheel adjustment: | Manual |

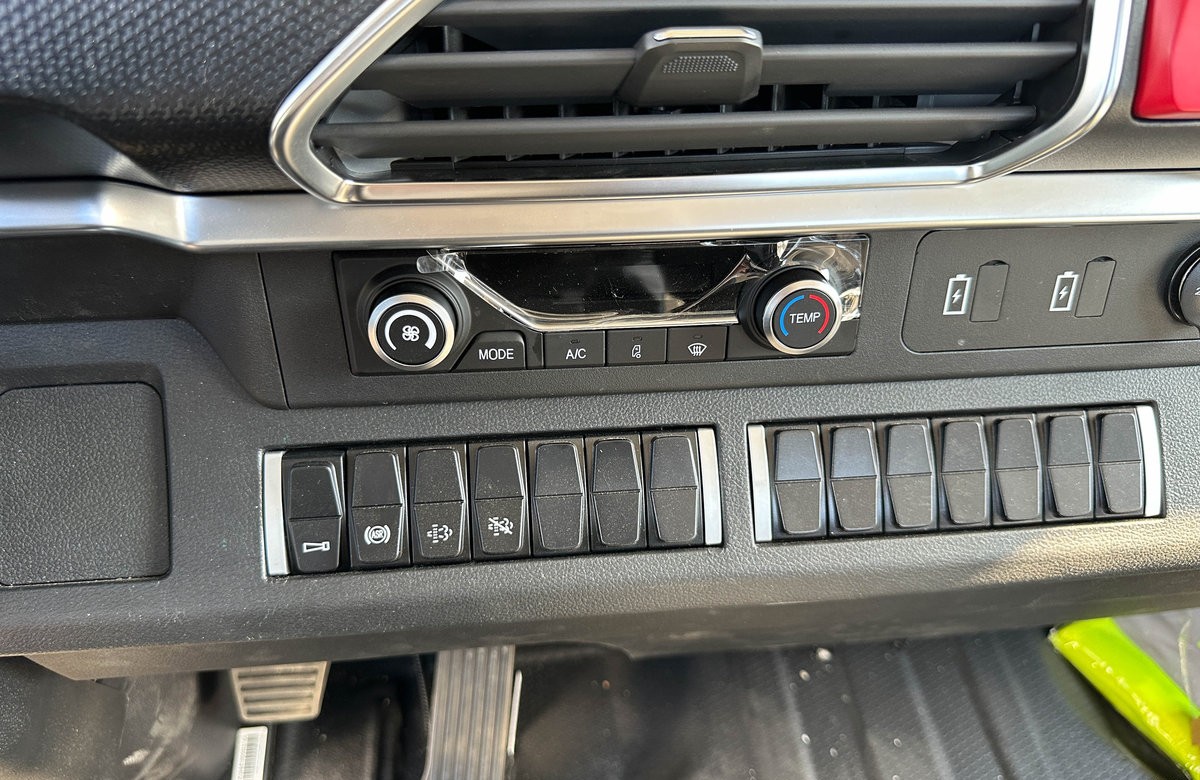

| Multi-function steering wheel: | ● | Air conditioning control methods: | Manual |
| Braking | |||
| Vehicle braking type: | air brake | Parking brake: | Air brake |
| Engine braking: | In-cylinder braking | Exhaust braking: | ○ |
| Hydraulic retarder: | - | Front wheel brakes: | Standard configuration includes drum brakes; disc brakes are optional. |
| Rear wheel brakes: | Drum | ||
