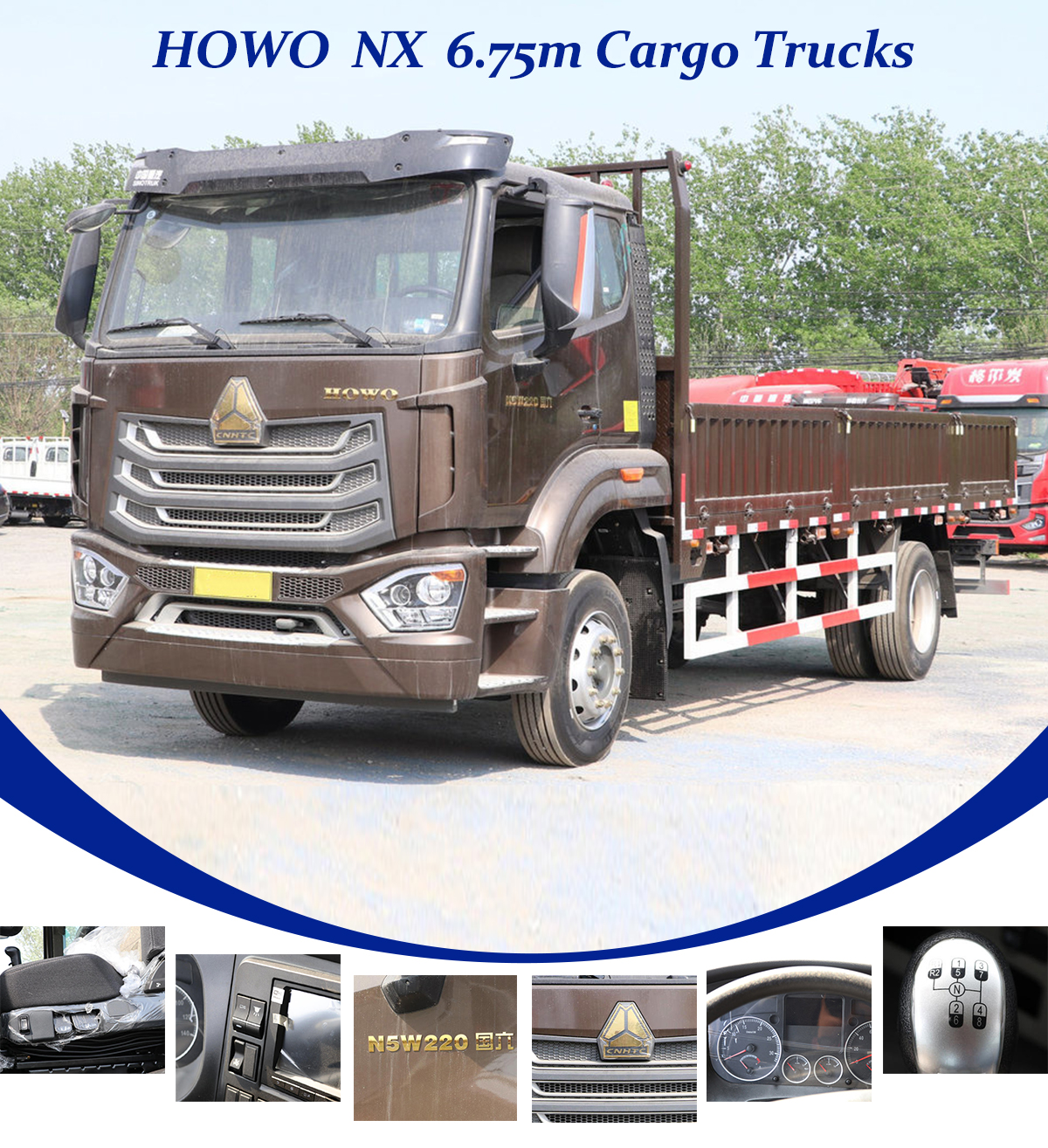

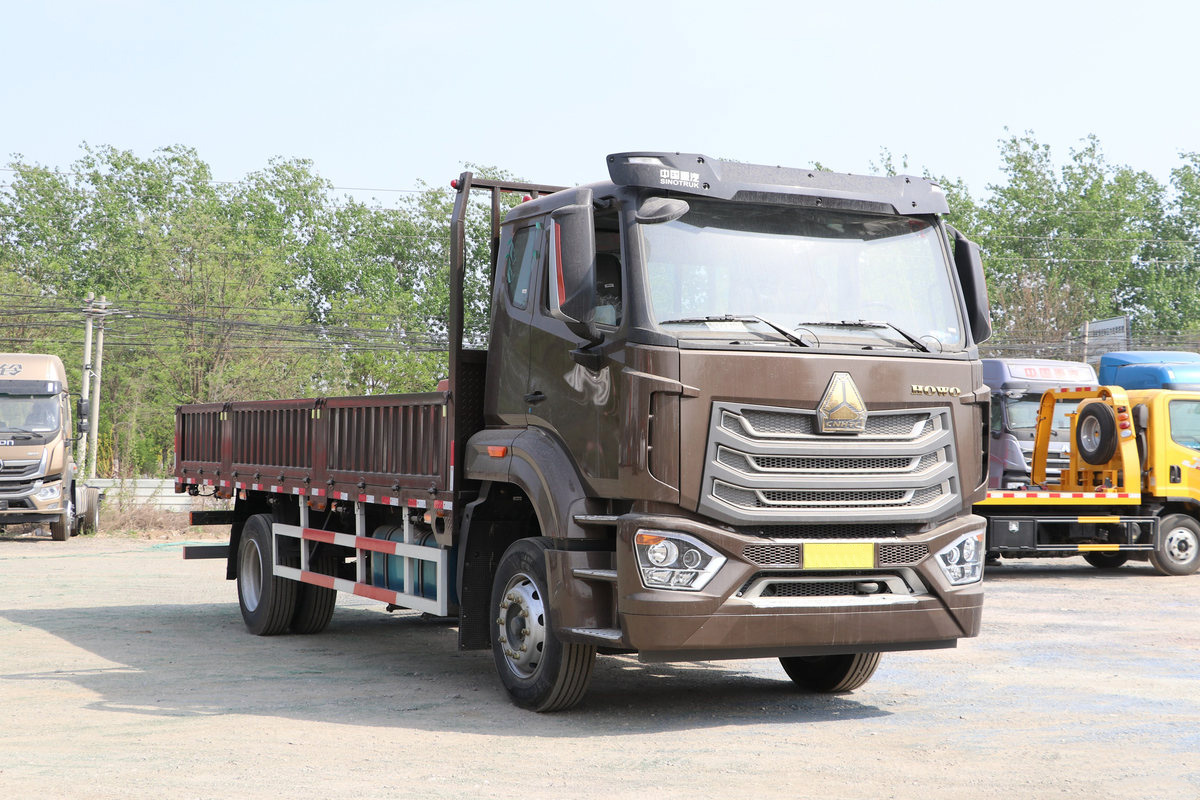

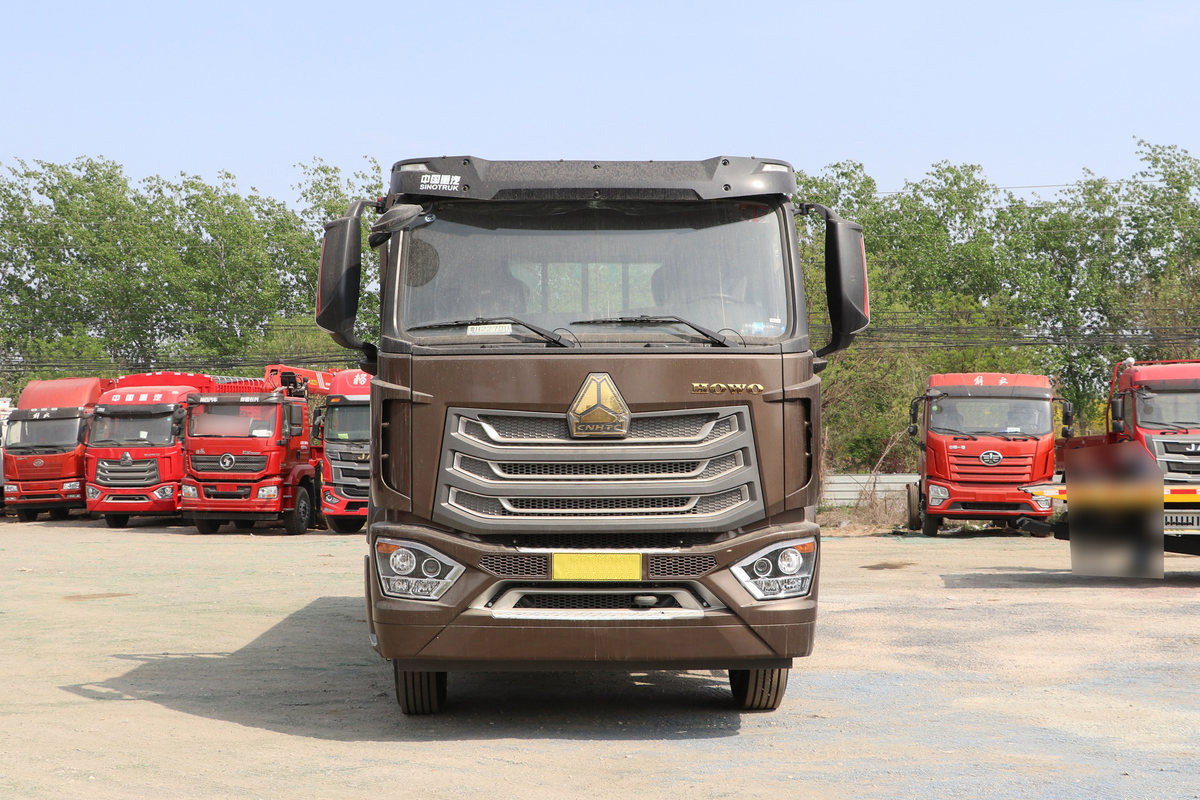

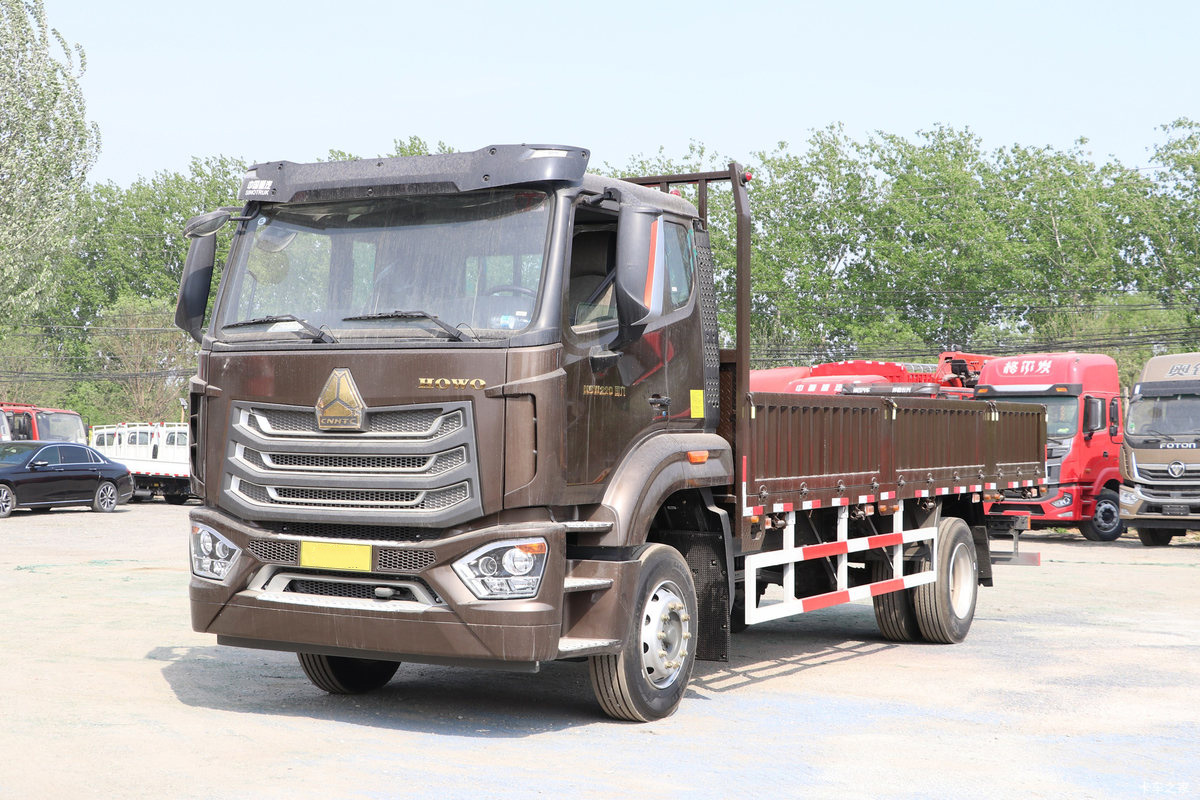

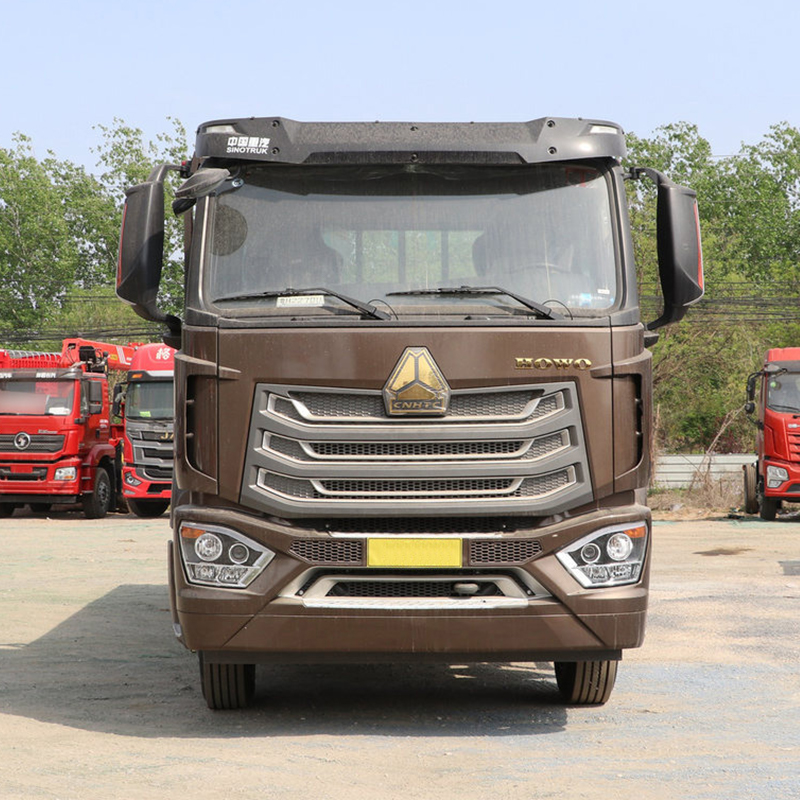

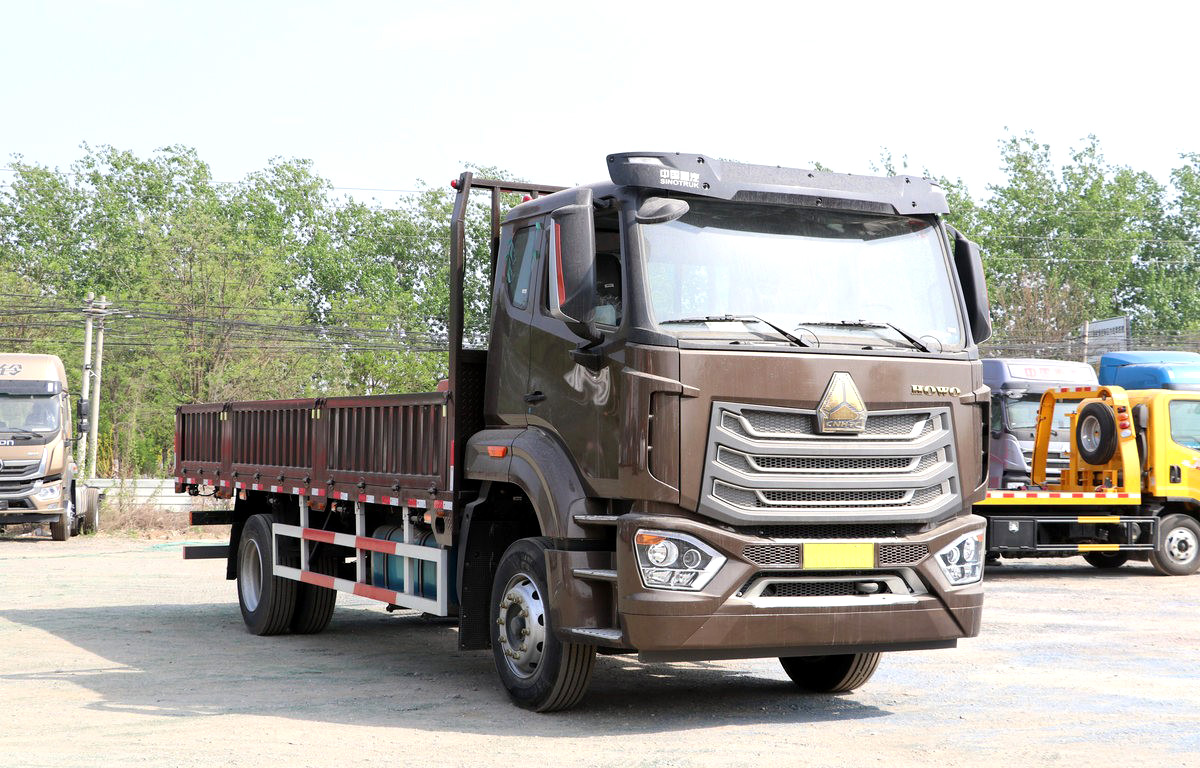

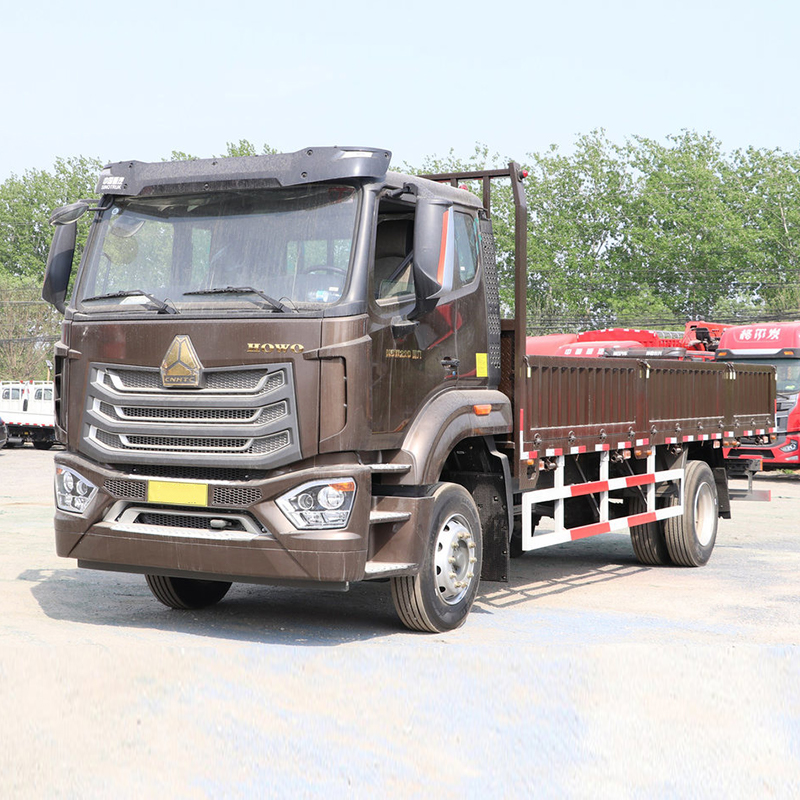

Howo N5W 6.8m Cargo Truck

Introduction

Introduction


Basic Information
Model number announced:	ZZ1167K511JF1	type:	cargo trucks
Drive type:	4X2	Wheelbase:	5100mm
Container length level:	6.8 meters	engine:	Weichai WP4.6NQ220E61
Transmission:	China National Heavy Duty Truck 8-speed	Vehicle length:	9 meters
Vehicle width:	2.55 meters	Vehicle height:	3 meters
Front track:	1956mm	Rear track:	1800mm
Total vehicle weight:	7.35 tons	Rated load:	8.52 tons
Total mass:	16 tons	Maximum speed:	102km/h
Place of origin:	Jining, Shandong	Tonnage class:	medium-sized truck
Driver's license:	A1, A2, B2	Approach angle:	17 degrees
Departure angle:	13 degrees	Energy type:	diesel fuel
Engine parameters
Engine brand:	Weichai	Engine model:	Weichai WP4.6NQ220E61
Engine information:	Weichai WP4.6	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	4.58L	Emission standards:	National VI
Maximum output power:	162kW	Maximum horsepower:	220 horsepower
Maximum torque:	800N m	Maximum torque speed:	1200-1800rpm
Rated speed:	2300rpm	Engine type:	Four-valve, high-pressure common rail, turbocharged intercooler, EGR+DPF+DOC+SCR
Transmission parameters
Transmission model:	China National Heavy Duty Truck 8-speed	Gearbox brand:	China National Heavy Duty Truck Group
Gear shifting method:	Manual	Forward gear:	8 gears
Number of inverted boxes:	2

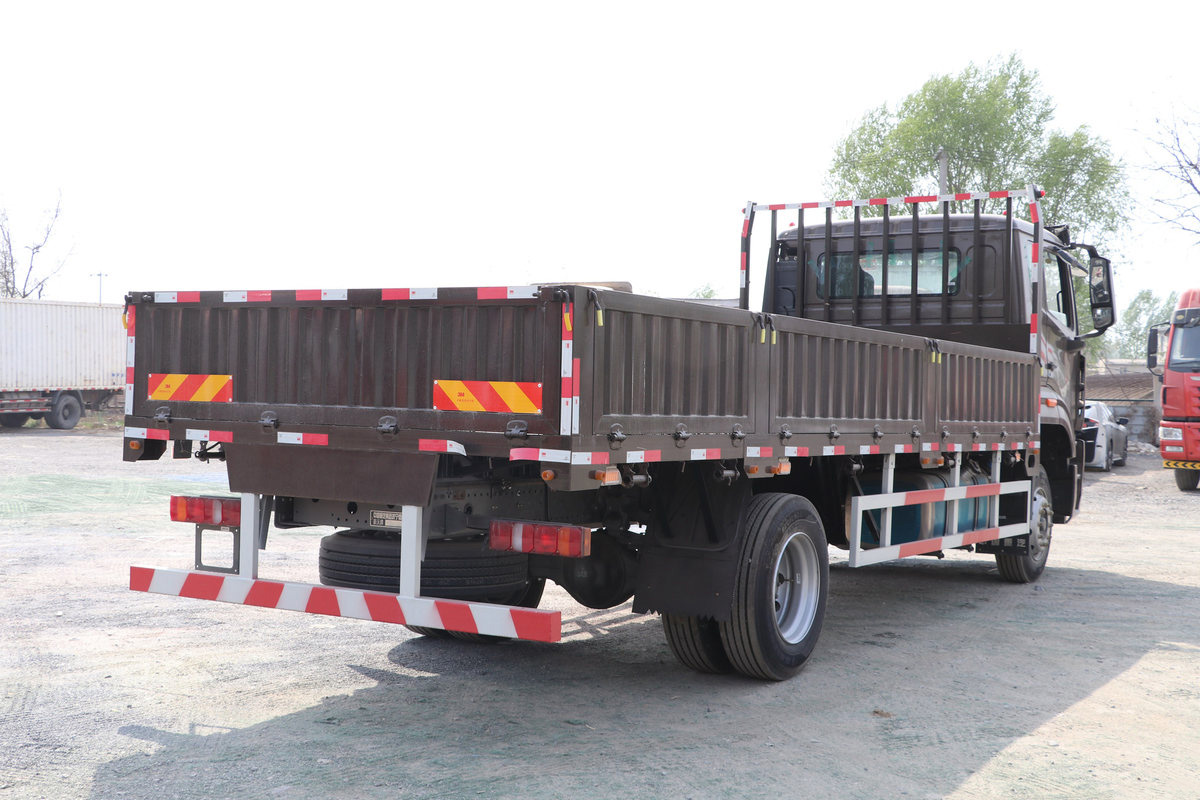

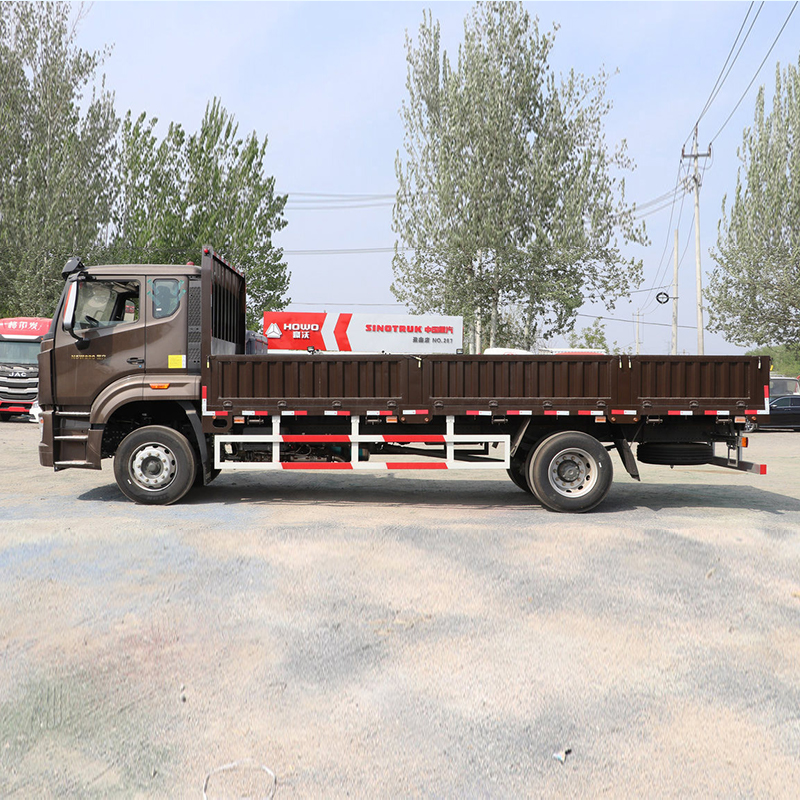

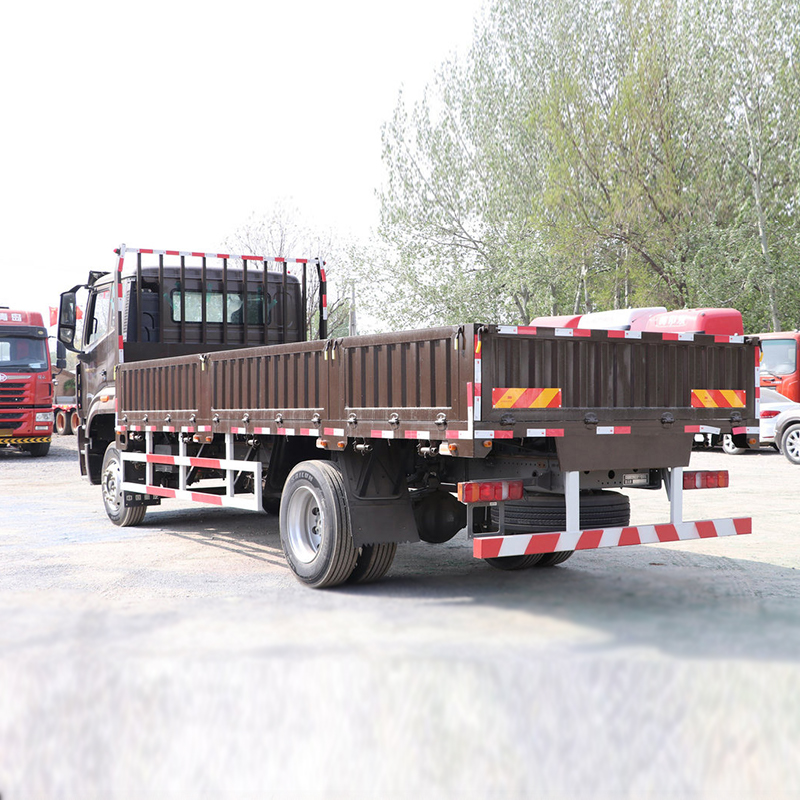

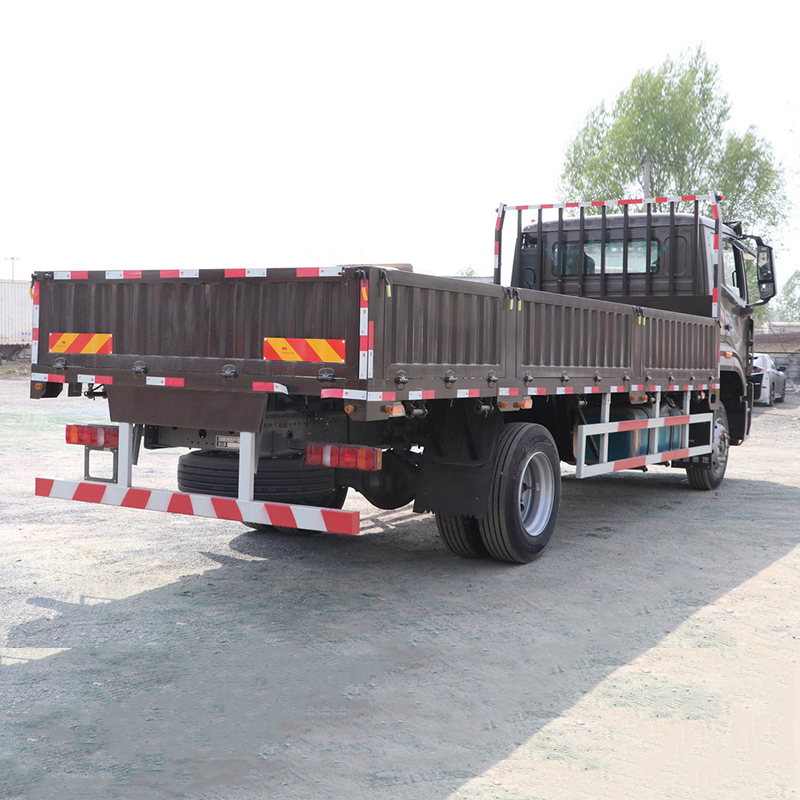

Cargo box parameters
Cargo container type:	Parapet	Cargo box length:	6.75 meters
Cargo box width:	2.46 meters	Cargo box height:	0.6 meters
* Cargo compartment internal width:	2.460000038

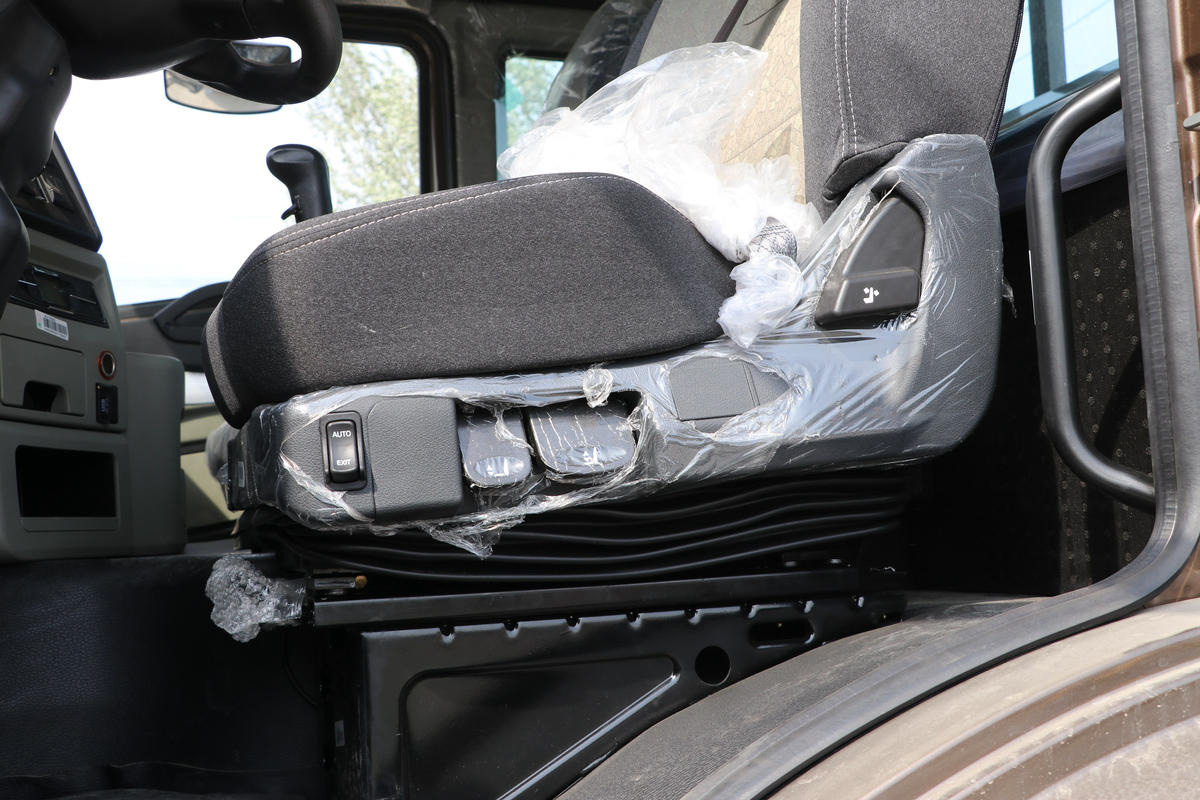

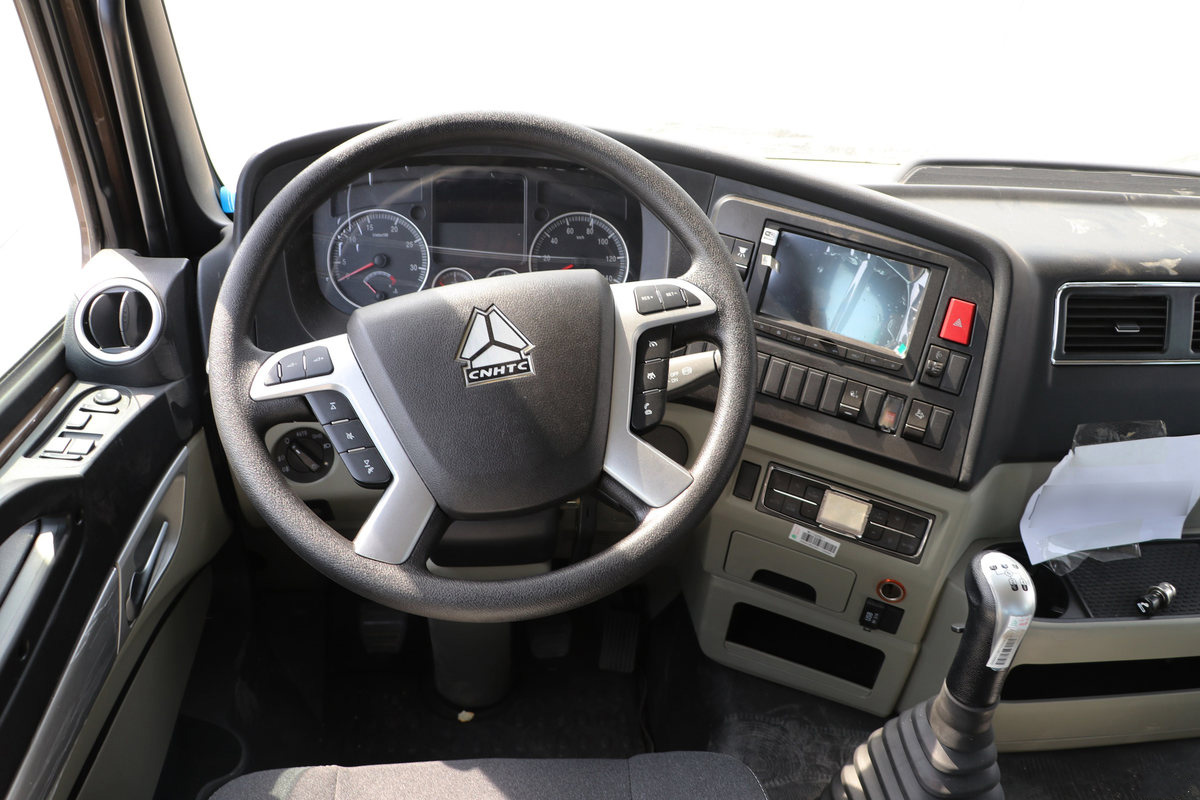

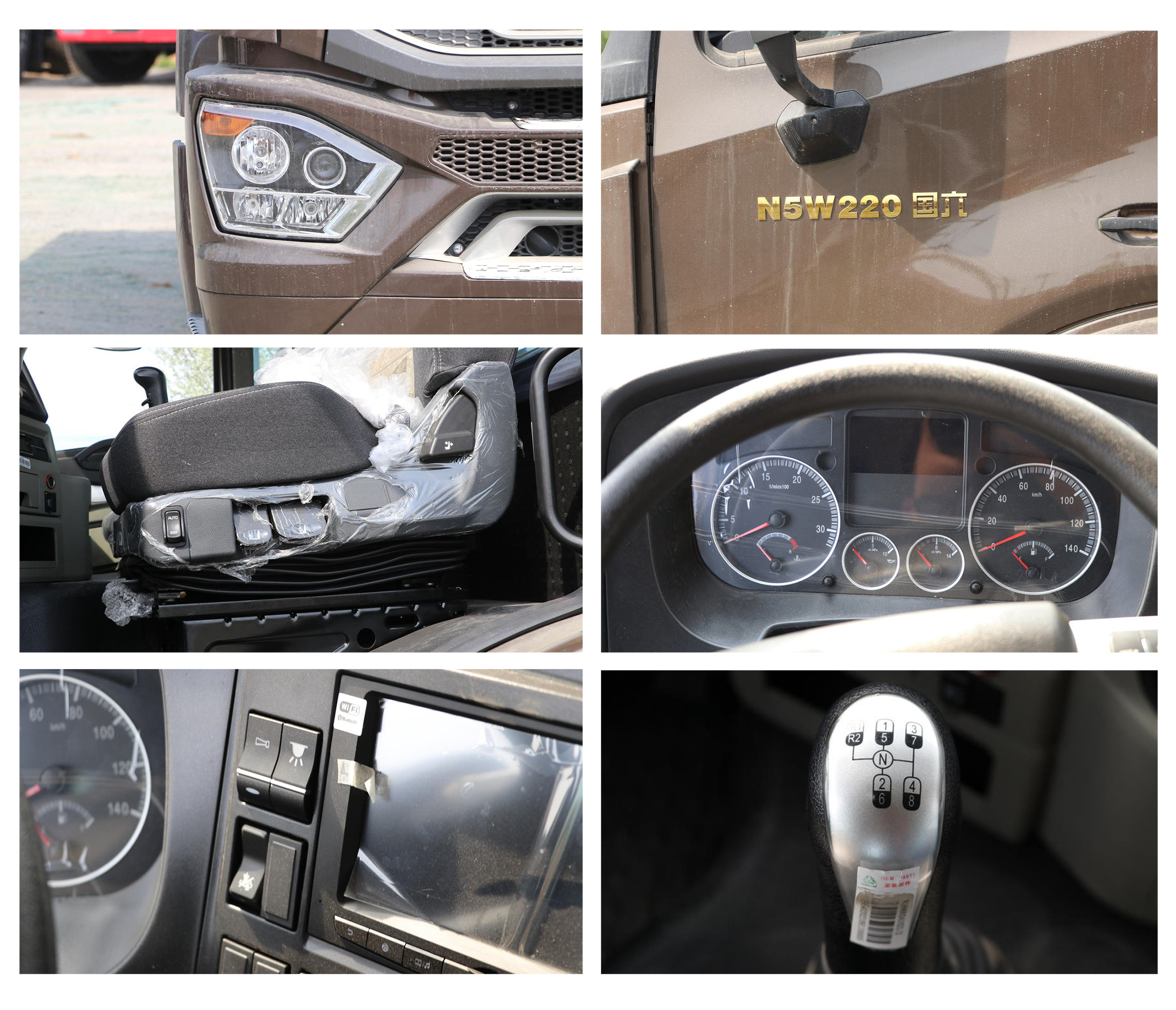

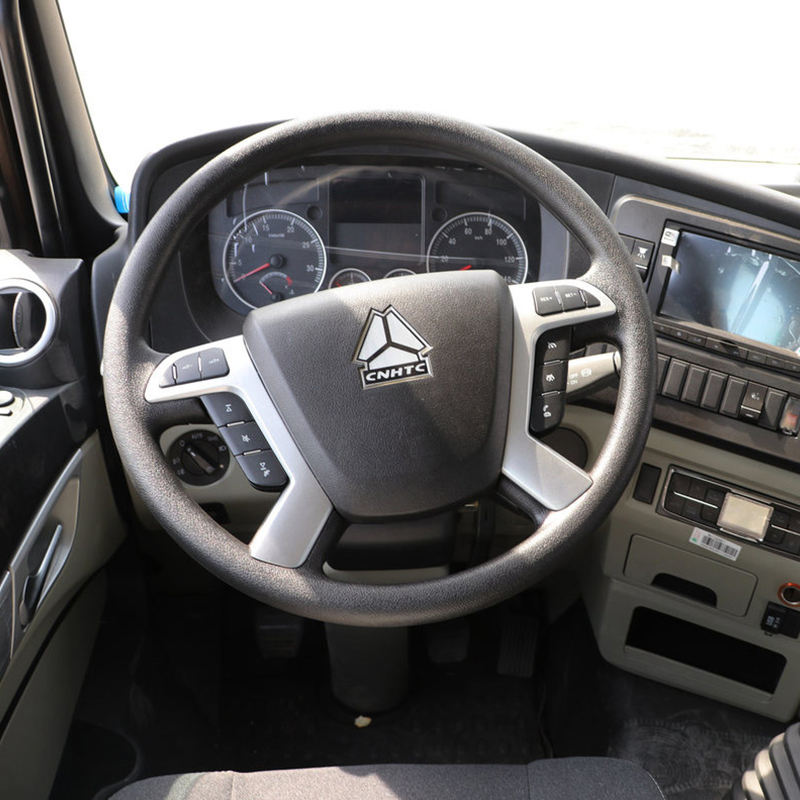

Cab parameters
Passenger capacity:	3 people	Number of rows of seats:	Half
Chassis parameters
Front axle allowable load:	5500kg	Rear axle allowable load:	10500kg
Number of leaf springs:	7/7+3

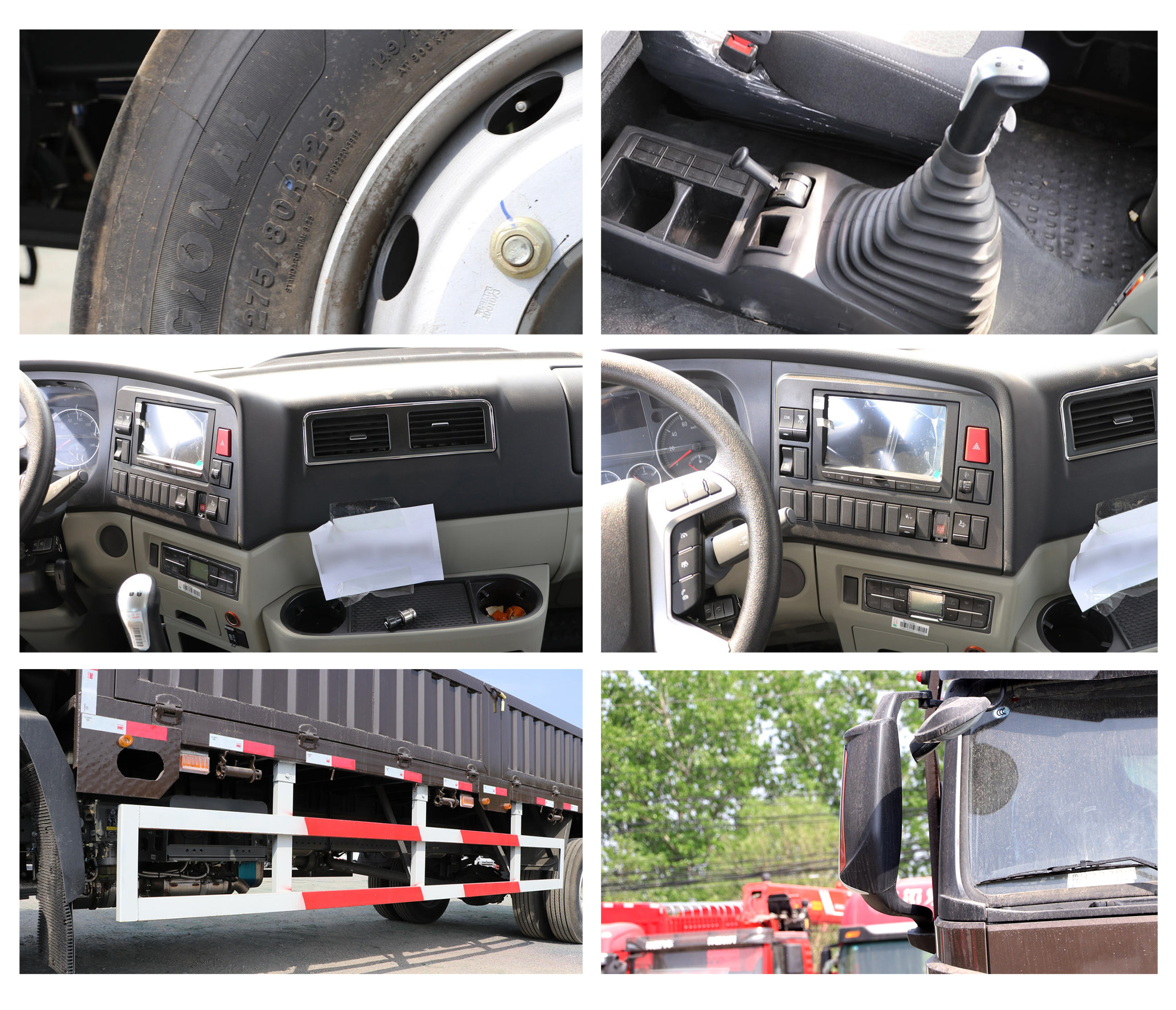

tire
Tire specifications:	275/80R22.5 18PR	Number of tires:	6
