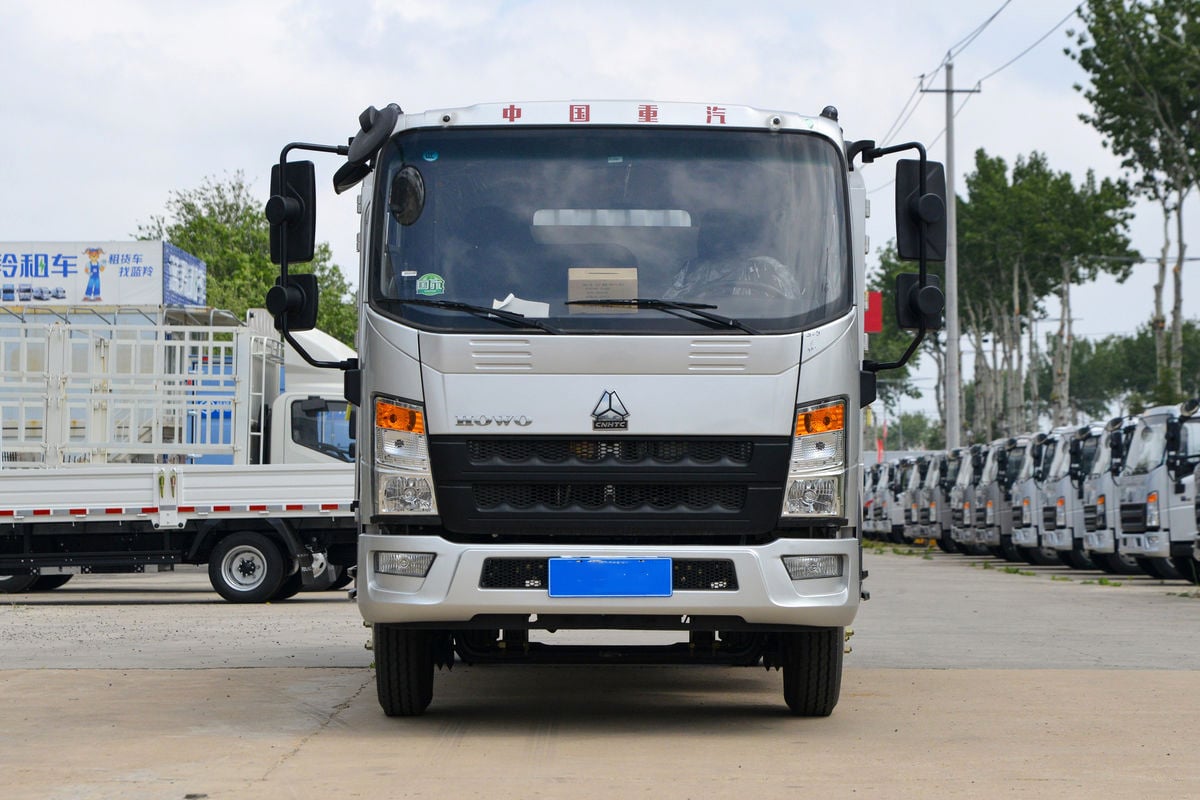

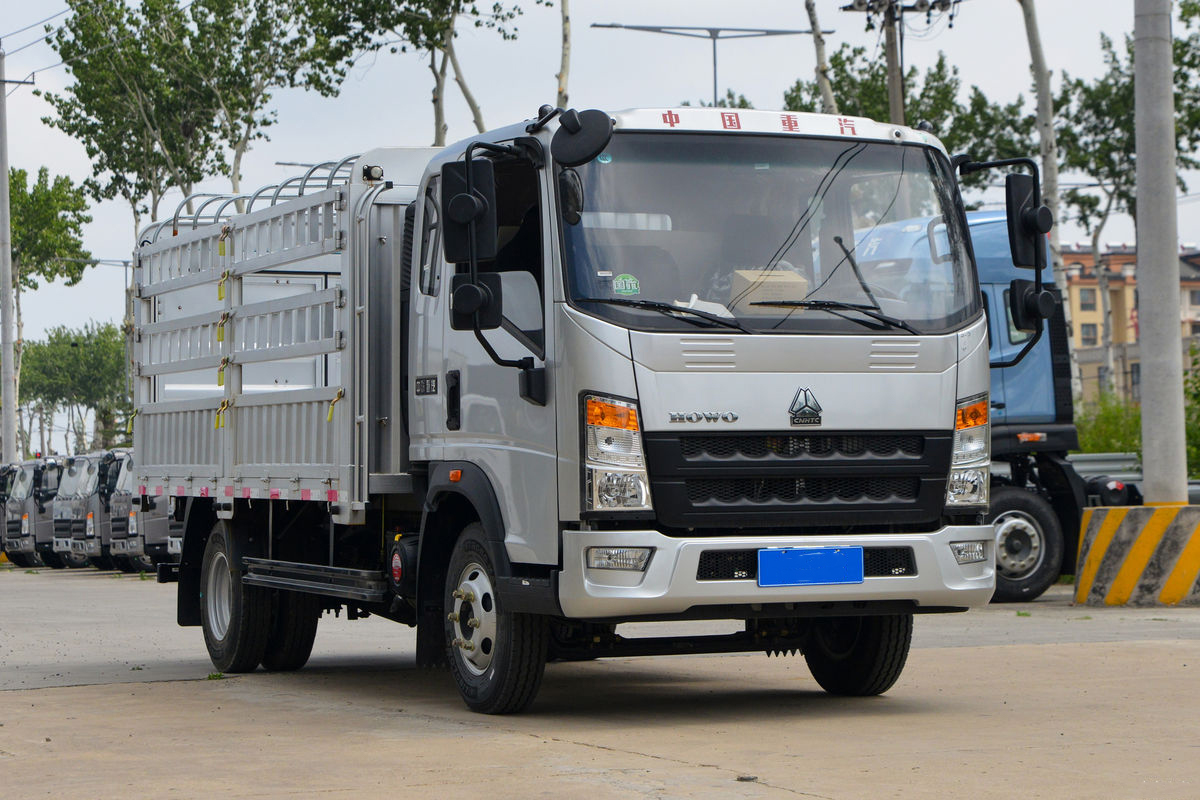

HOWO Stake Cargo Truck

Introduction

Introduction


Basic Information
Model number announced:	ZZ5047CCYC3314F145	type:	Cargo truck
Drive type:	4X2	Wheelbase:	3360mm
Container length level:	4.2 meters	engine:	Weichai WP2.3Q140E62
Transmission:	8-speed gearbox	Vehicle length:	5.99 meters
Vehicle width:	2.2 meters	Vehicle height:	2.85 meters
Front track:	1640mm	Rear track:	1560mm
Total vehicle weight:	2.715 tons	Rated load:	1.58 tons
Total mass:	4.49 tons	Maximum speed:	95km/h
Place of origin:	Zhangqiu, Shandong	Tonnage class:	light truck
Driver's license:	A1, A2, B1, B2, C1	Approach angle:	18 degrees
Departure angle:	17 degrees	Front/Rear Suspension:	1.18/1.45 meters
Energy type:	diesel fuel
Engine parameters
Engine brand:	Weichai	Engine model:	Weichai WP2.3Q140E62
Engine information:	Weichai 2.3L	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	2.289L	Emission standards:	National VI
Maximum output power:	103kW	Maximum horsepower:	140 horsepower
Maximum torque:	320Nm	Maximum torque speed:	1600-2400rpm
Rated speed:	3200rpm	Engine type:	High-pressure common rail
Engine oil change interval:	50,000 kilometers
Transmission parameters

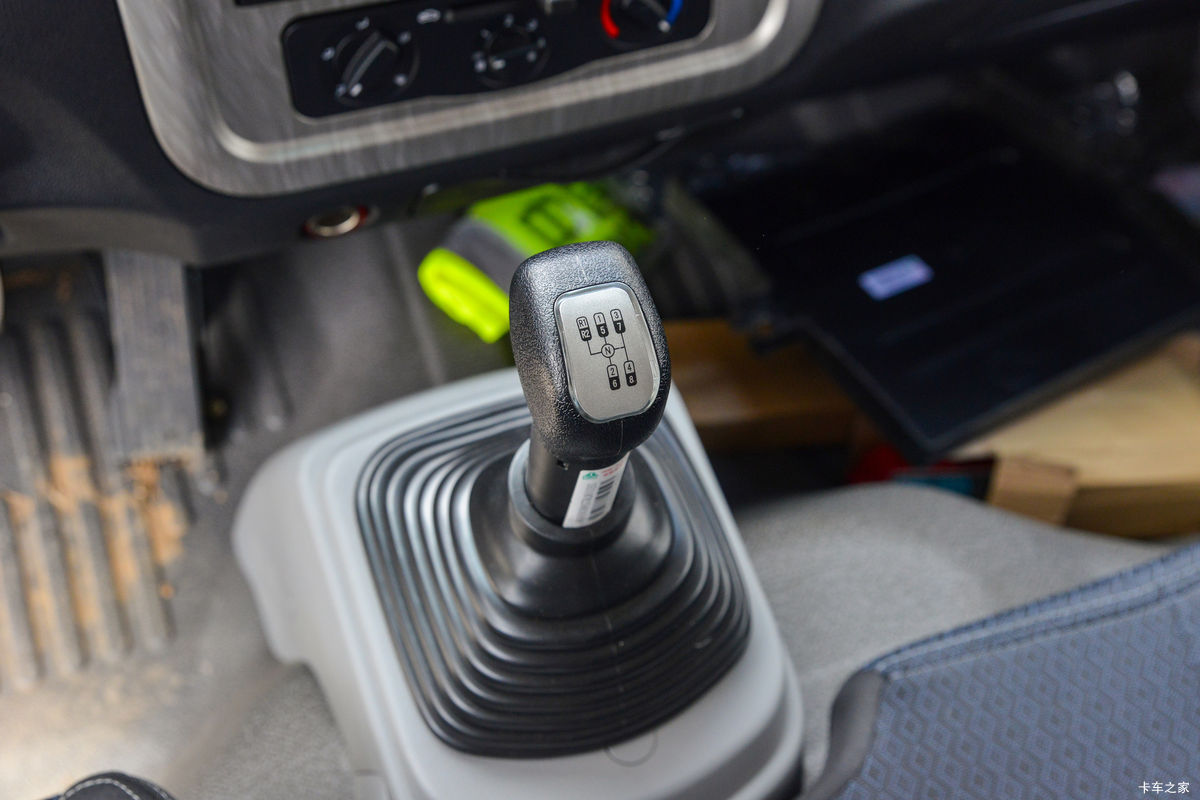

Transmission model:	8-speed gearbox	Gear shifting method:	Manual
Forward gear:	8 gears	Number of inverted boxes:	2

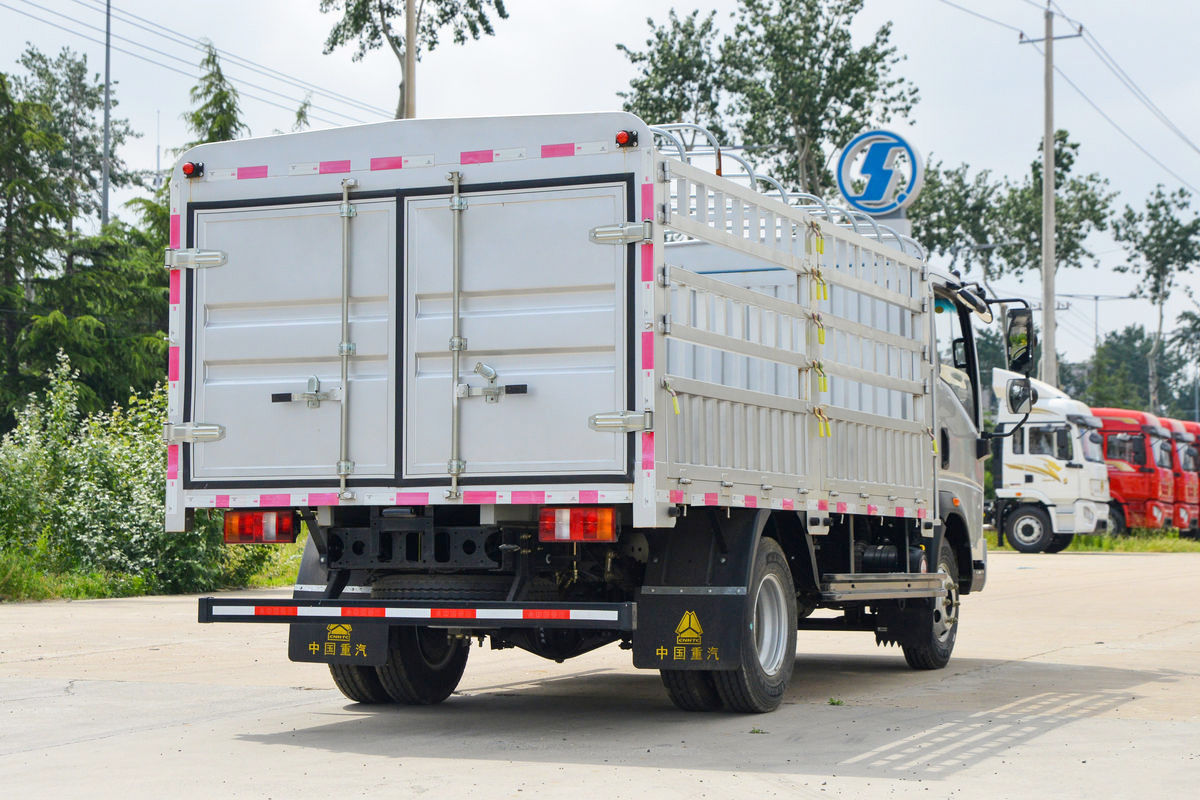

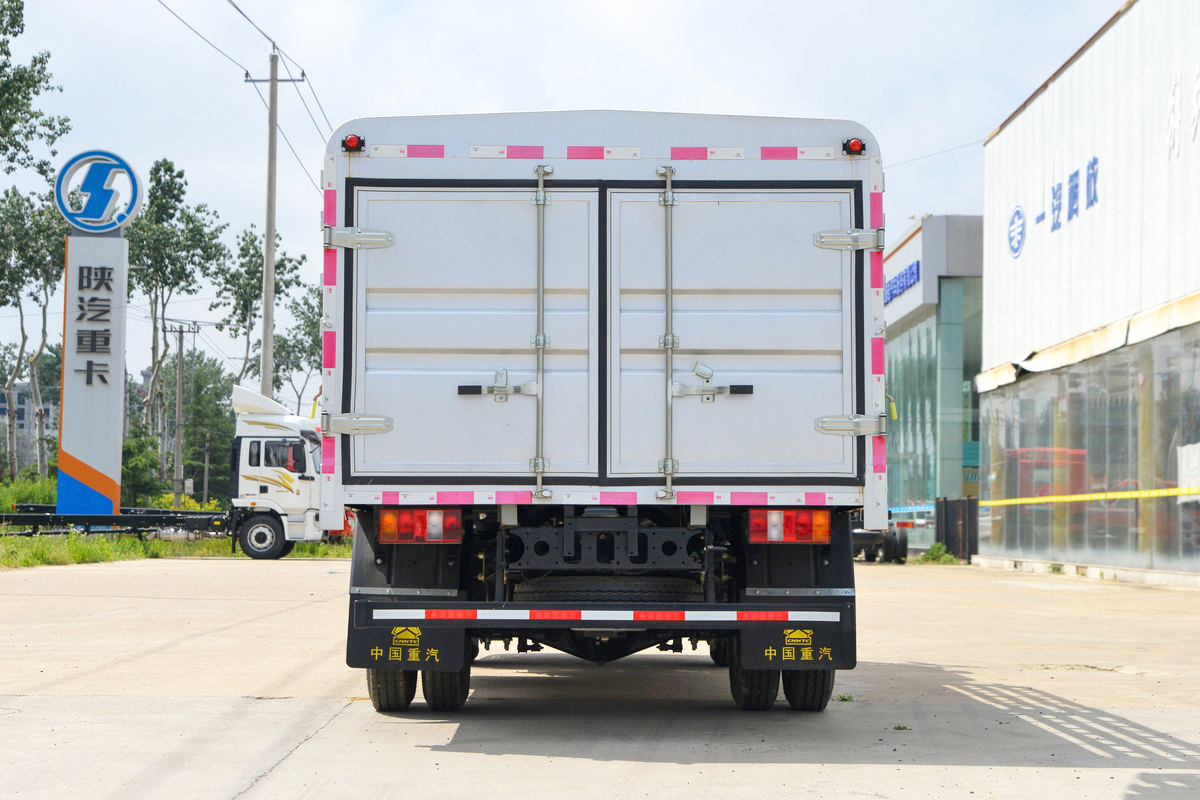

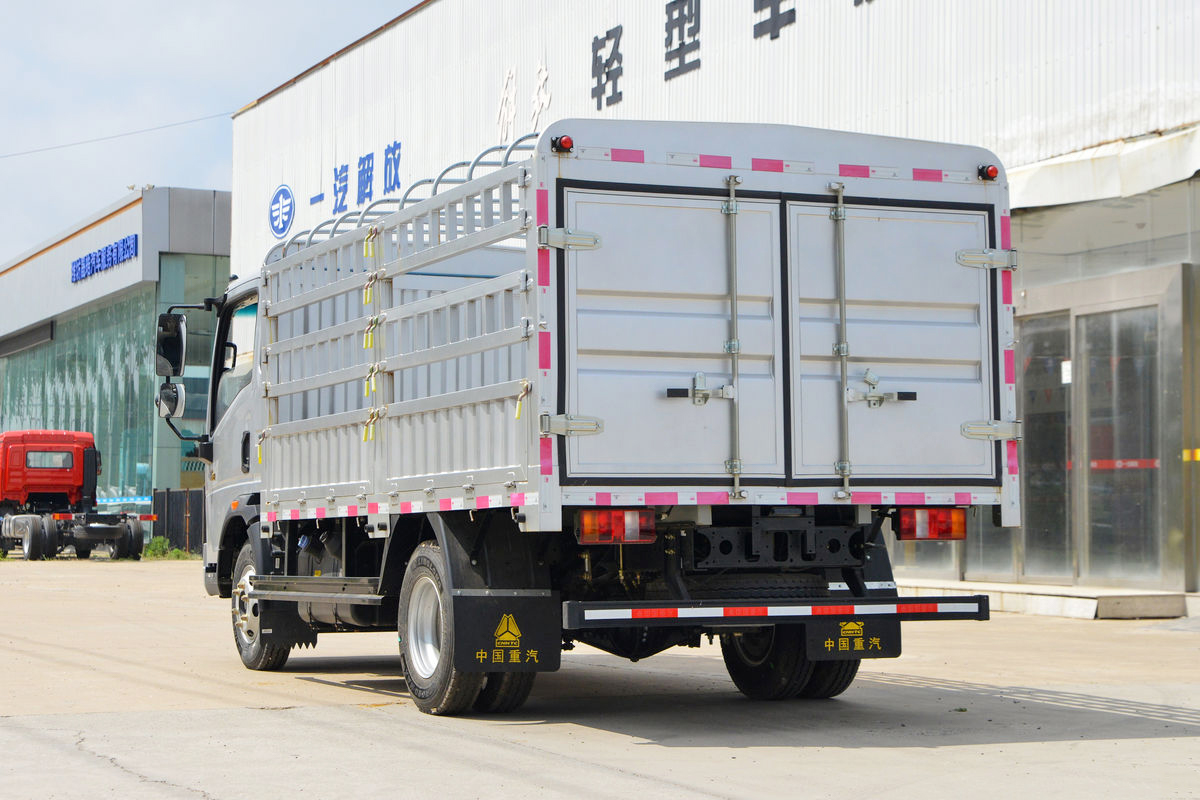

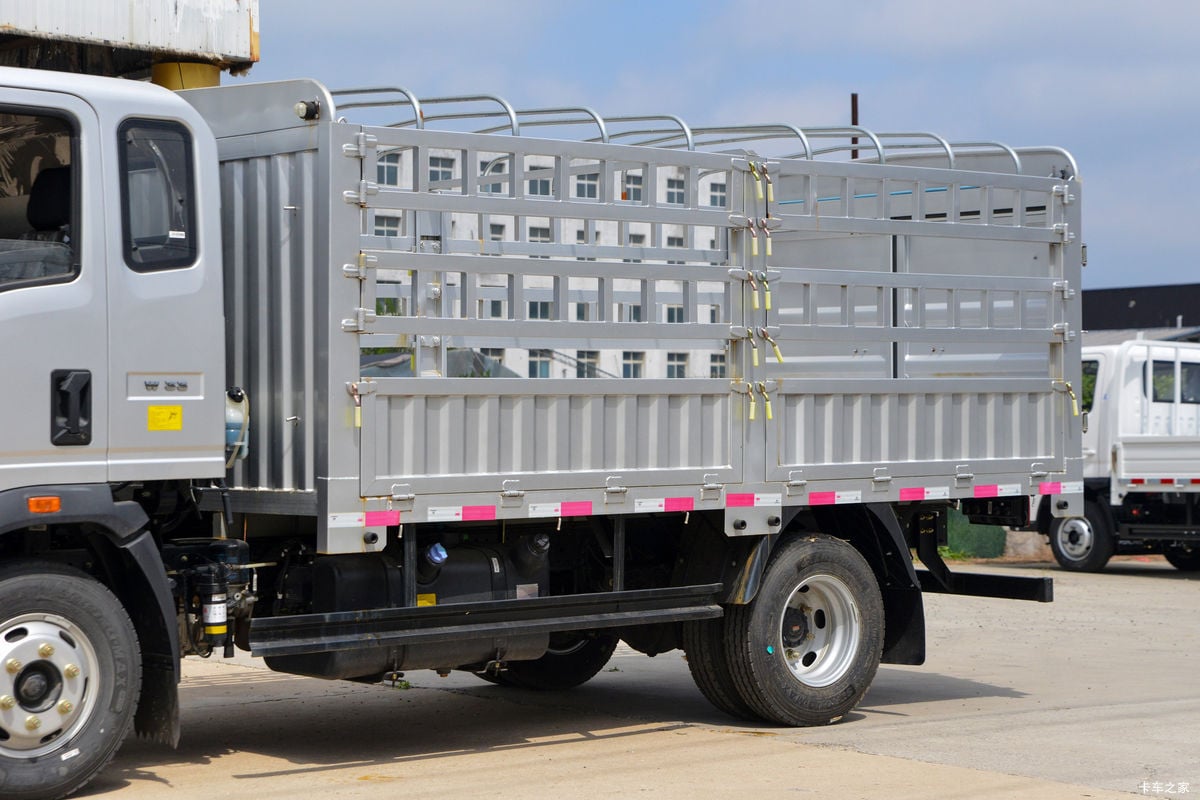

Cargo box parameters
Cargo container type:	Silo	Cargo box length:	4.15 meters
Cargo box width:	2.1 meters	*Internal width of the cargo compartment:	2.1

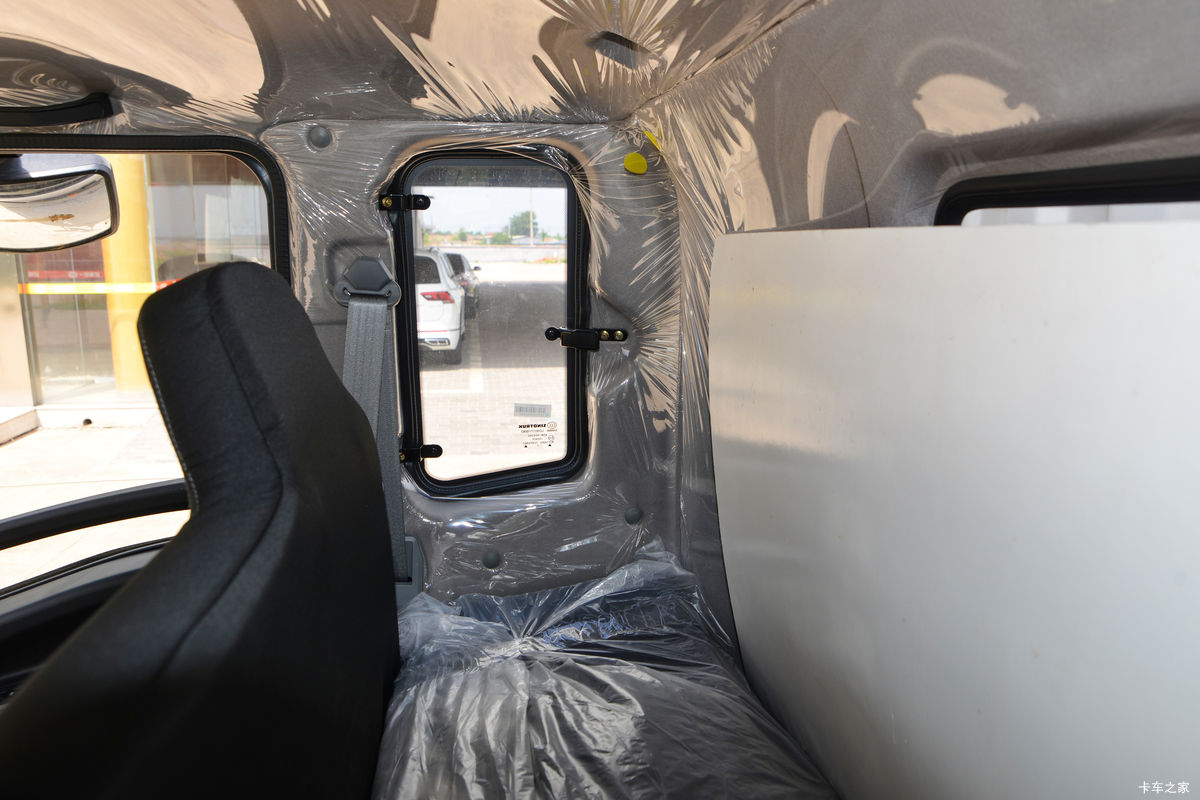

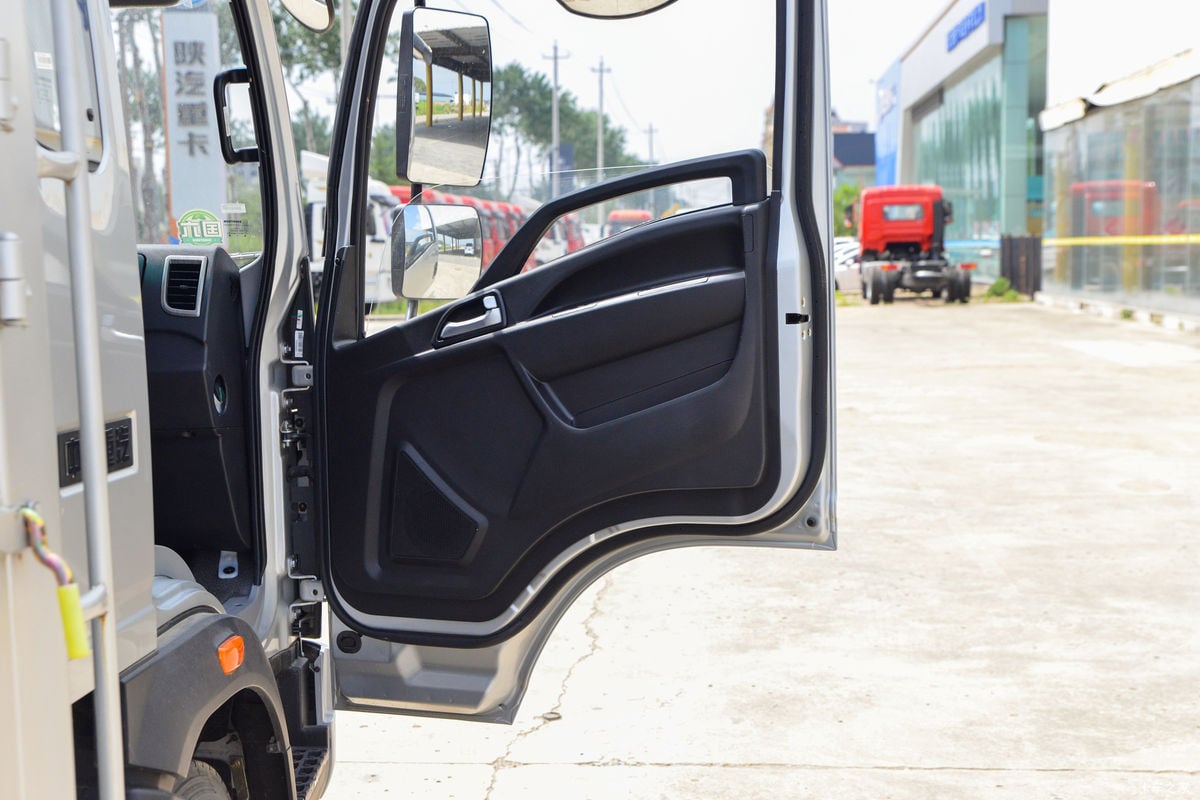

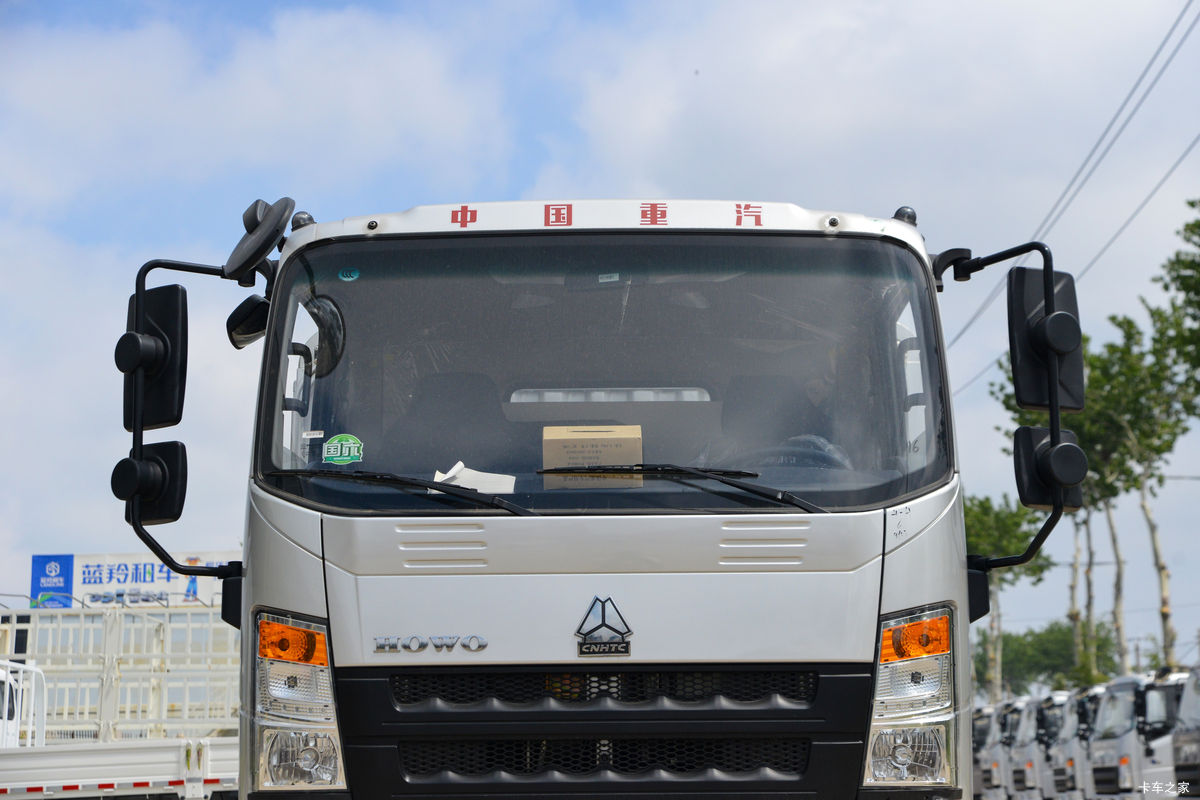

Cab parameters
Passenger capacity:	3 people	Number of rows of seats:	single row
Chassis parameters
Front axle allowable load:	1790kg	Rear axle allowable load:	2700kg
Number of leaf springs:	3/8+6	Aluminum alloy wheels:

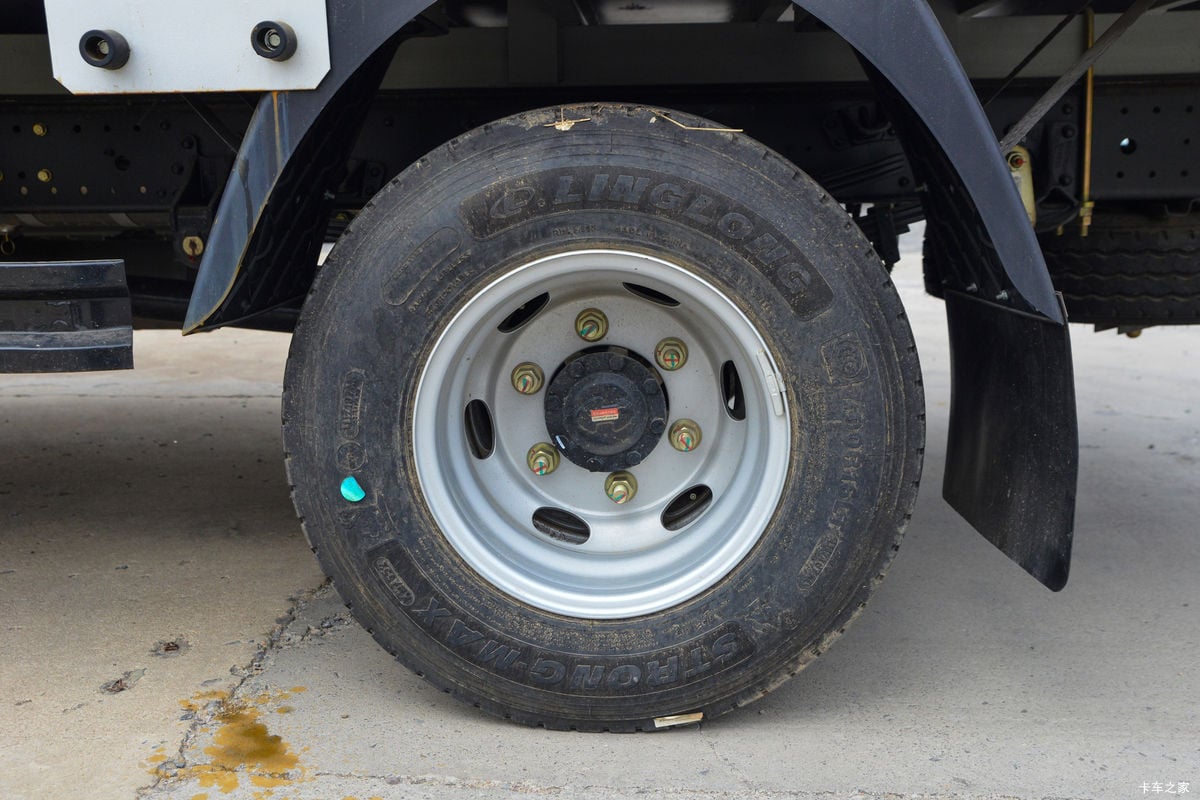

tire
Tire specifications:	7.00R16LT 10PR	Number of tires:	6
Braking
Vehicle braking type:	air brake	Parking brake:	Air brake
Engine braking:	In-cylinder braking	Exhaust braking:
Hydraulic retarder:	-	Front wheel brakes:	Standard configuration includes drum brakes; disc brakes are optional.
Rear wheel brakes:	Drum
