| Basic Information | |||
| type: | cargo trucks | Drive type: | 4X2 |
| Rear axle ratio: | 3.91 | Tonnage class: | heavy trucks |
| Energy type: | diesel fuel | ||
| Engine parameters | |||
| Engine brand: | China National Heavy Duty Truck Group | Engine model: | MC07H.35-61 |
| Engine information: | China National Heavy Duty Truck Group 7.4L | Number of cylinders: | 6 cylinders |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 7.36L | Maximum output power: | 254kW |
| Maximum horsepower: | 350 horsepower | Maximum torque: | 1400N·m |
| Rated speed: | 2200rpm | Engine type: | Inline six-cylinder, water-cooled, four-stroke, turbocharged and intercooled, high-pressure common rail |
| Transmission parameters | |||
| Transmission model: | HW12712ACL | Gearbox brand: | China National Heavy Duty Truck Group |
| Gear shifting method: | AMT (Automatic Manual Transmission) | Forward gear: | 12 gears |
| Number of inverted boxes: | 2 | ||

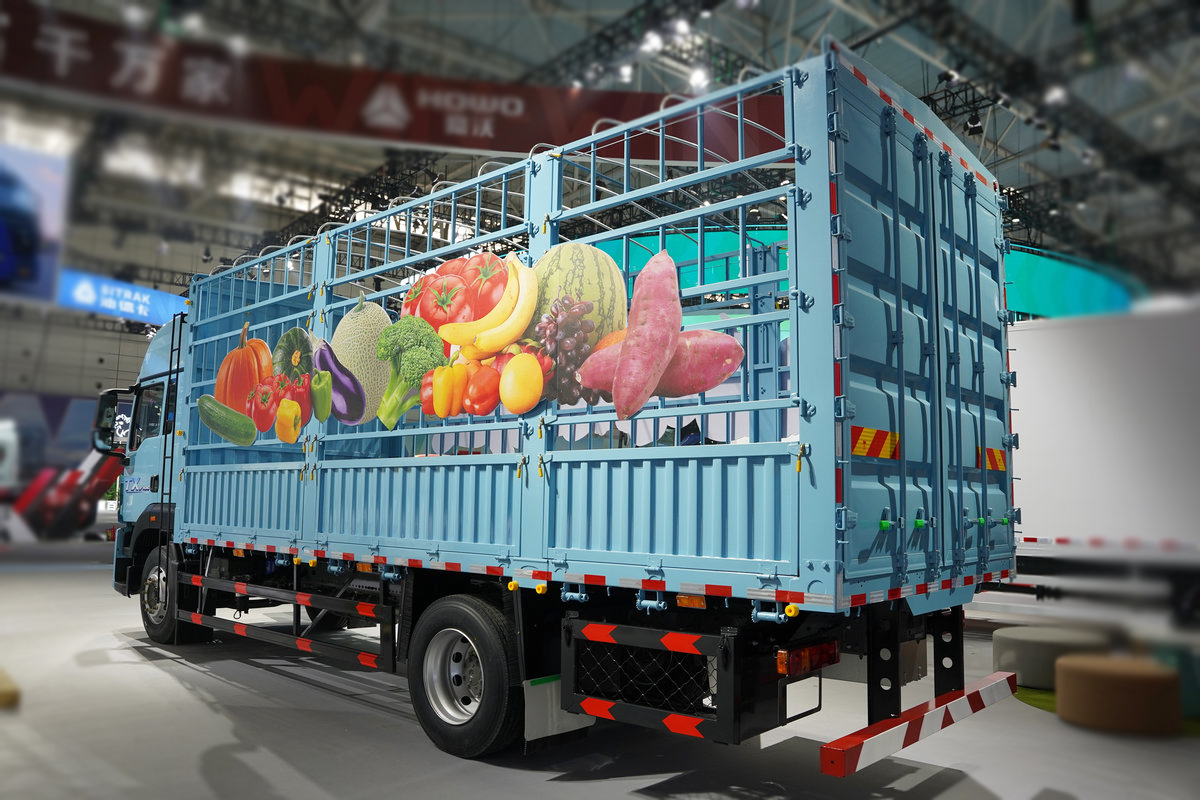

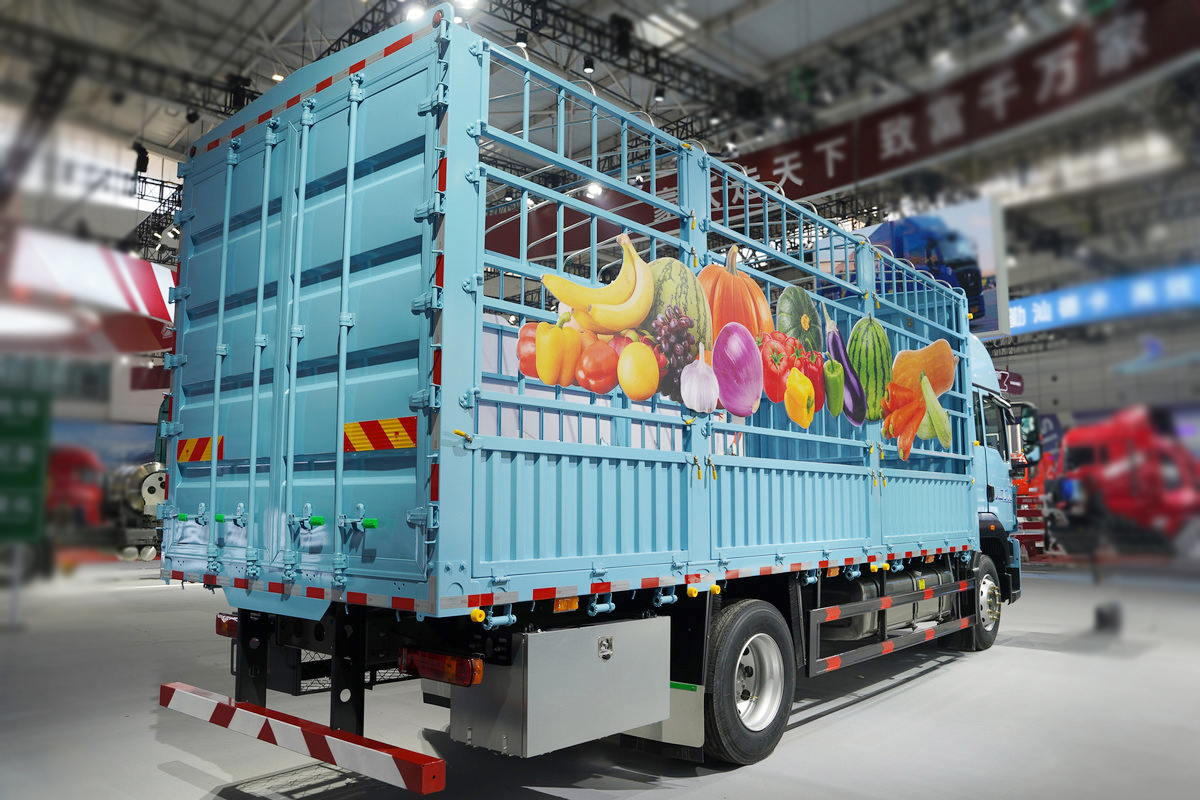

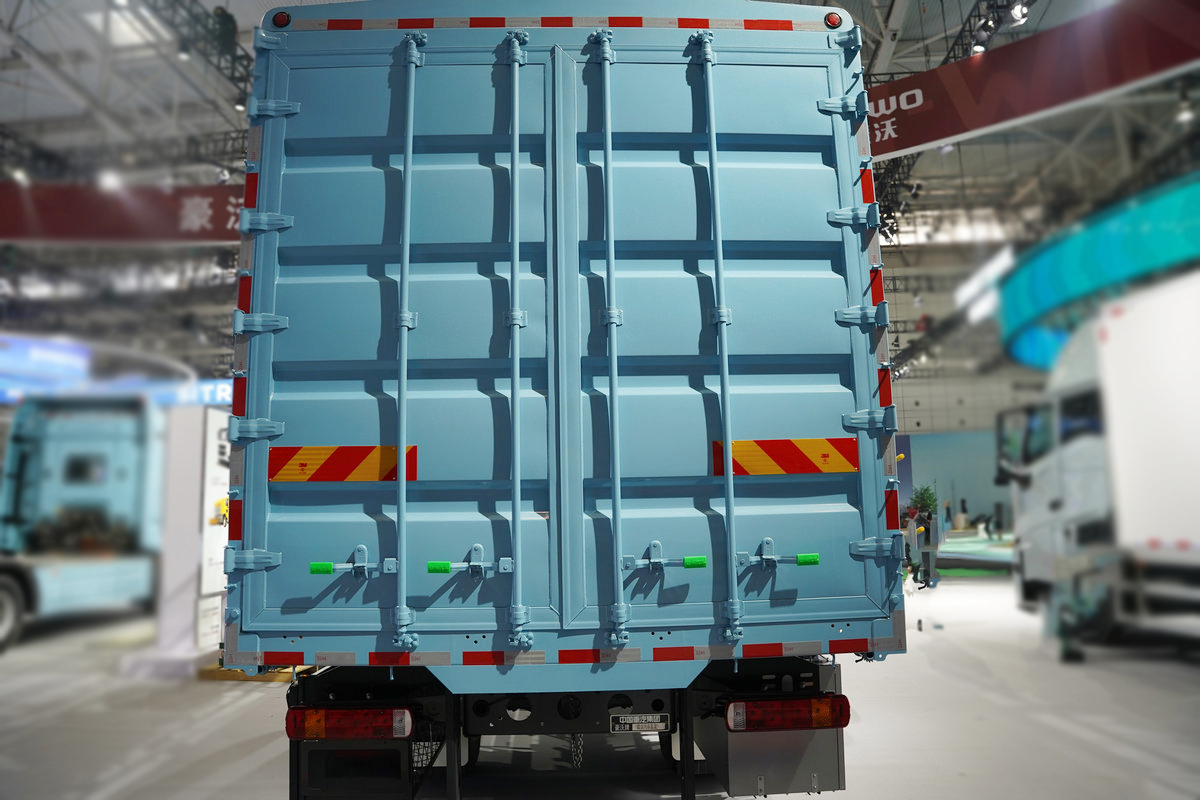

| Cargo box parameters | |||
| Cargo container type: | Silo type | ||

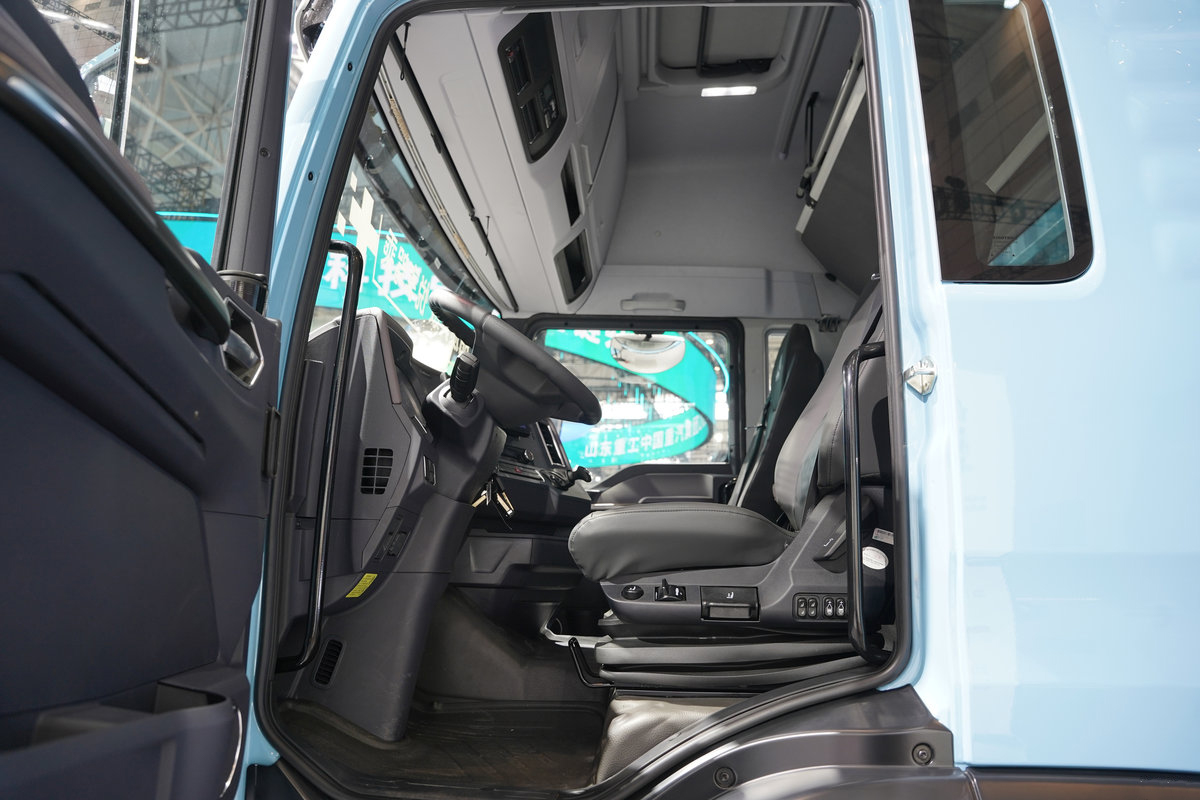

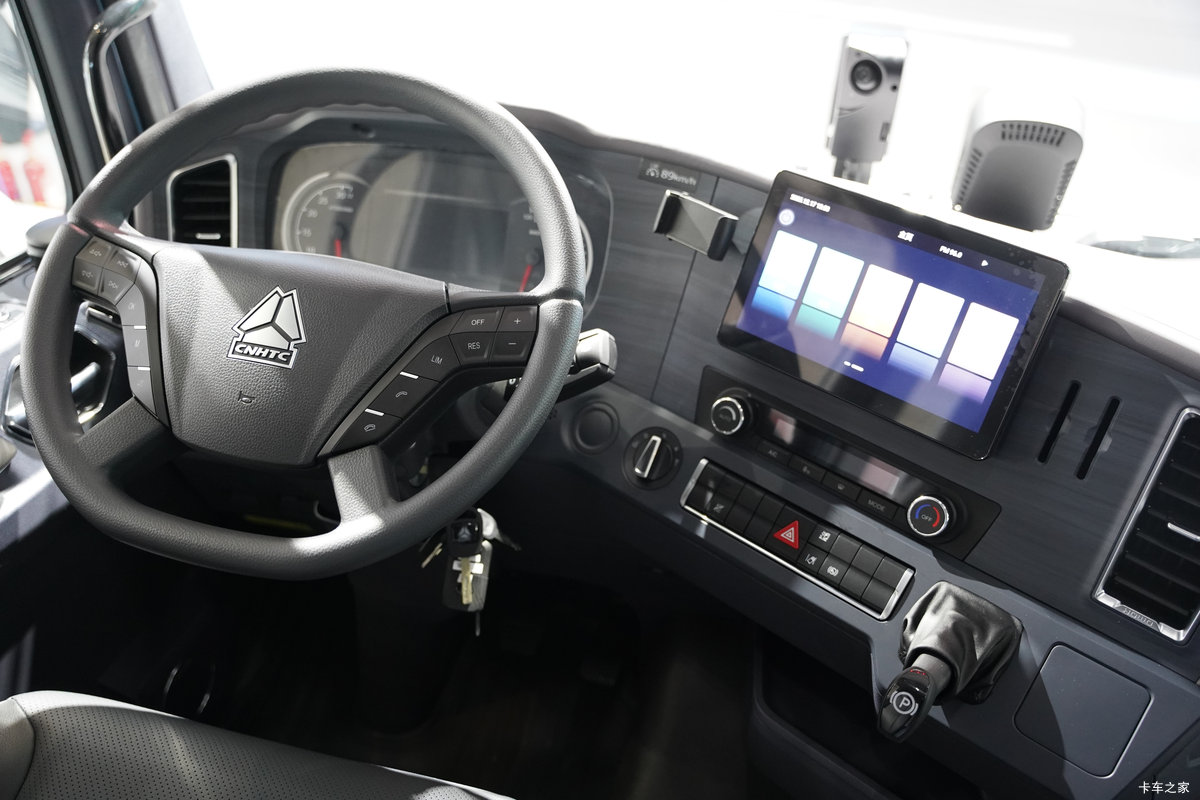

| Cab parameters | |||
| Passenger capacity: | 2 people | Number of rows of seats: | Half |
| Driver's seat configuration: | Airbag suspension seat | ||
| Chassis parameters | |||
| Front axle description: | 1094Q front axle | Frame dimensions: | 6/232mm |
| Rear axle description: | MCJO9BGQ | Speed ratio: | 3.91 |
| Number of leaf springs: | 7/7+3 | Frame type: | Single-layer frame |
| tire | |||
| Number of tires: | 6 | ||
