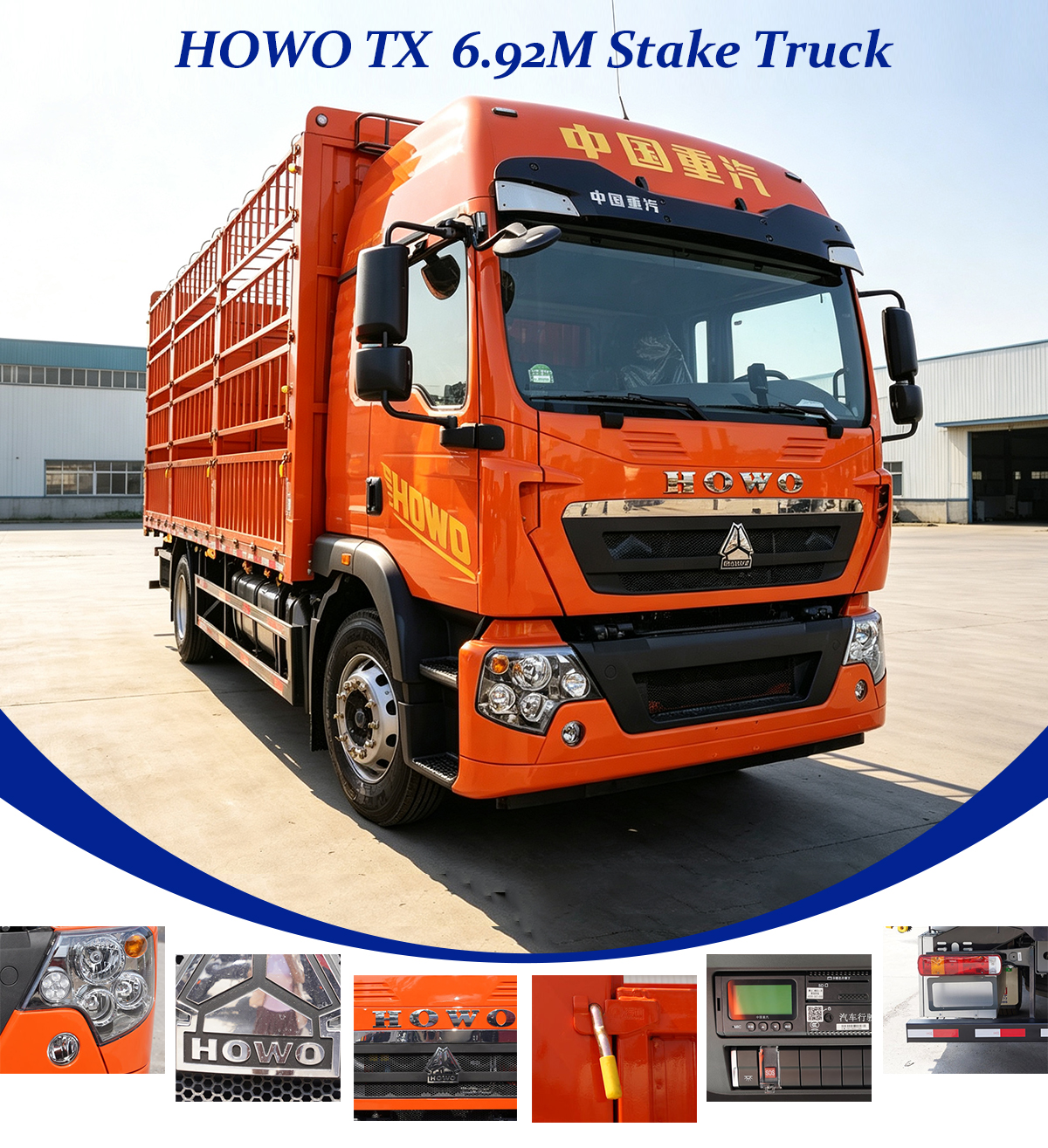

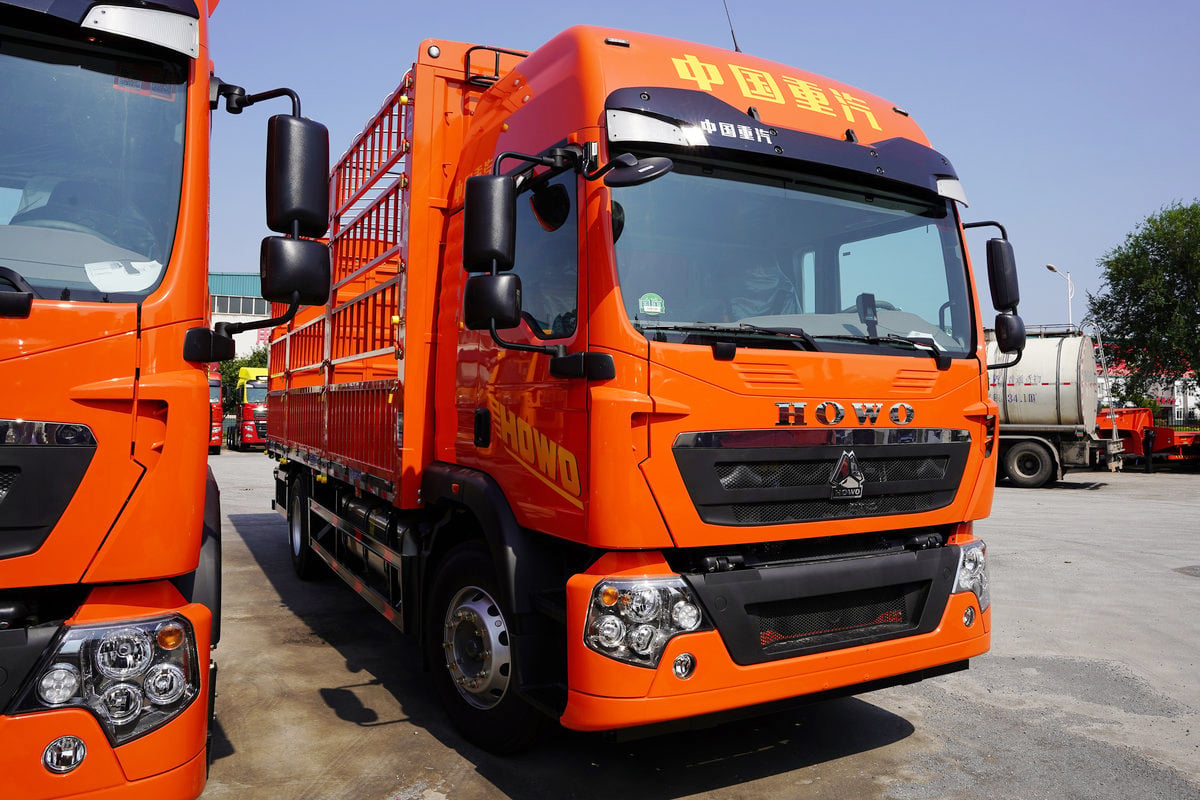

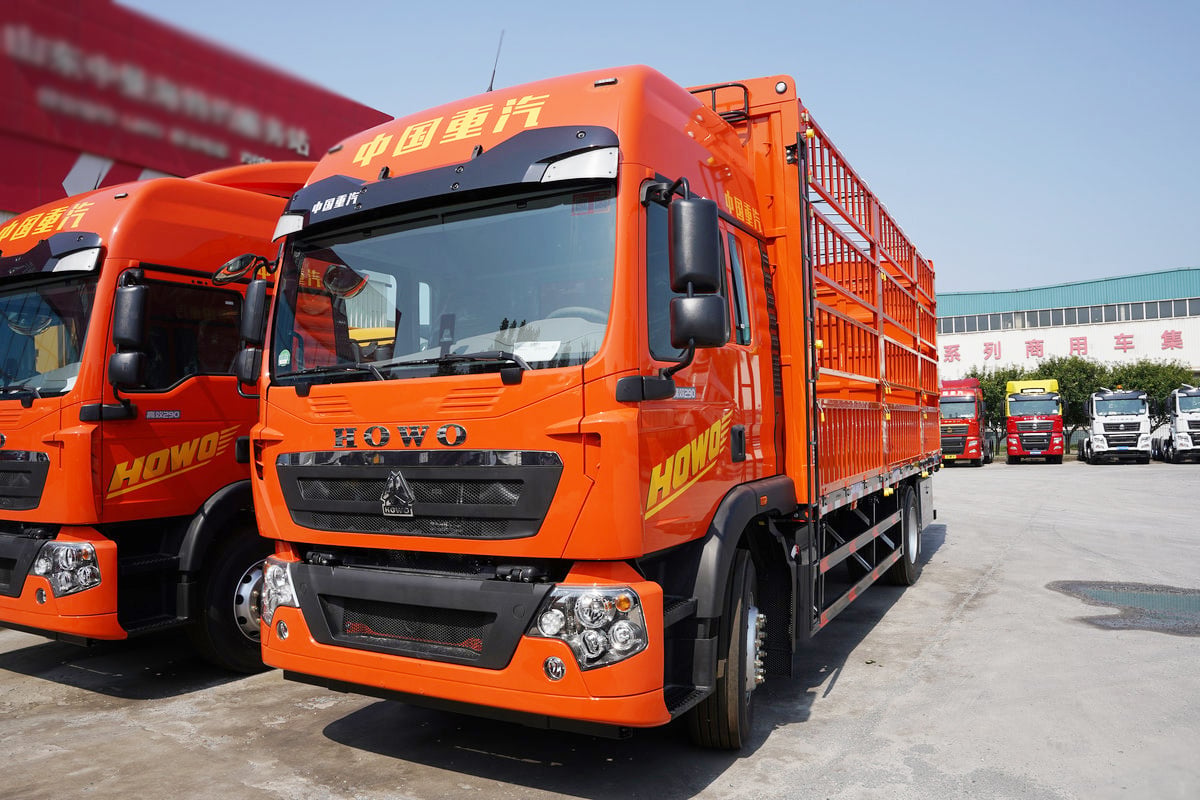

HOWO TX Stake Medium Truck

Introduction

Introduction


Basic Information
Model number announced:	ZZ5187CCYK501GF1B	type:	cargo trucks
Drive type:	4X2	Wheelbase:	5000mm
Container length level:	6.9 meters	engine:	China National Heavy Duty Truck Group MC07.29-61
Transmission:	China National Heavy Duty Truck 8-speed	Vehicle length:	9 meters
Vehicle width:	2.55 meters	Vehicle height:	3.95 meters
Front track:	2060mm	Rear track:	1880mm
Total vehicle weight:	6.88 tons	Rated load:	10.99 tons
Total mass:	18 tons	Maximum speed:	89km/h
Place of origin:	Jinan, Shandong	Tonnage class:	medium-sized truck
Driver's license:	A1, A2, B2	Approach angle:	19 degrees
Departure angle:	17 degrees	Front/Rear Suspension:	1.43/2.32 meters
Version:	High-efficiency version	Energy type:	diesel fuel
Engine parameters
Engine brand:	China National Heavy Duty Truck Group	Engine model:	MC07.29-61
Engine information:	China National Heavy Duty Truck Group 6.9L	Number of cylinders:	6 cylinders
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	6.87L	Emission standards:	National VI
Maximum output power:	213kW	Maximum horsepower:	290 horsepower
Maximum torque:	1200Nm	Maximum torque speed:	1200-1800rpm
Rated speed:	2200rpm
Transmission parameters
Transmission model:	China National Heavy Duty Truck 8-speed	Gearbox brand:	China National Heavy Duty Truck Group
Gear shifting method:	Manual	Forward gear:	8 gears
Number of inverted boxes:	2

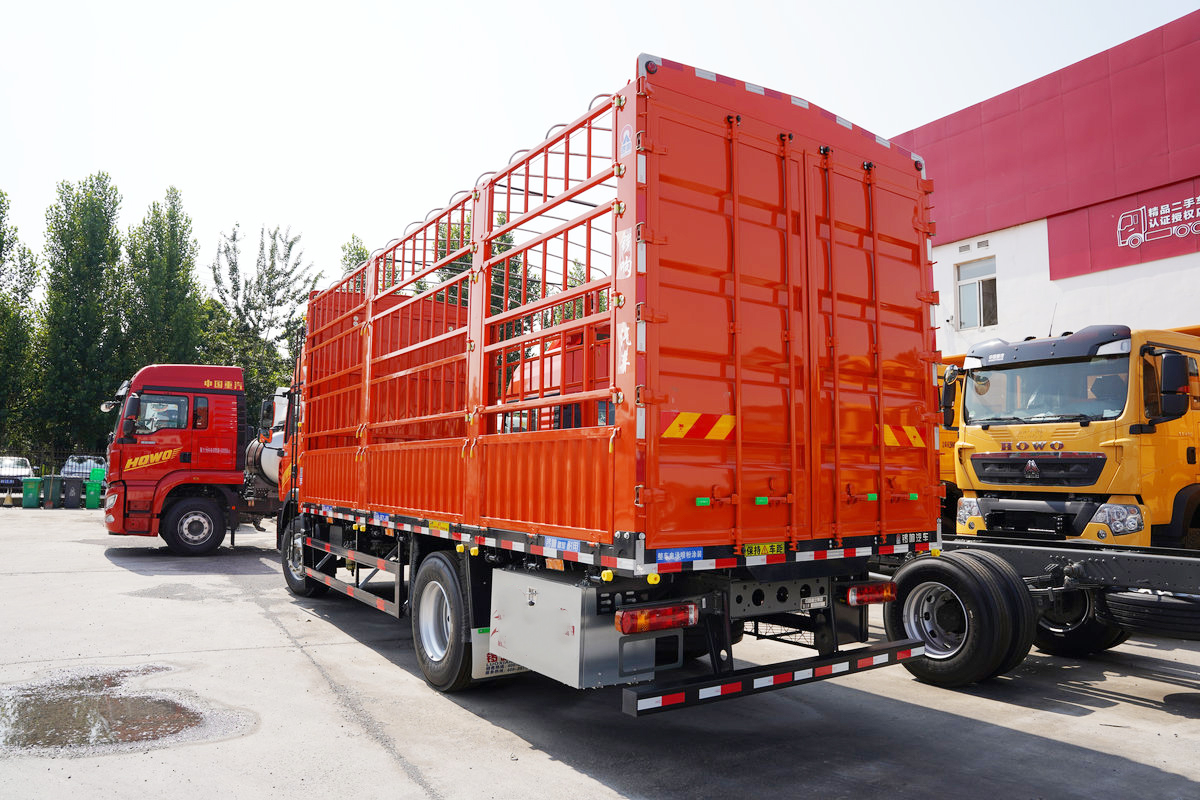

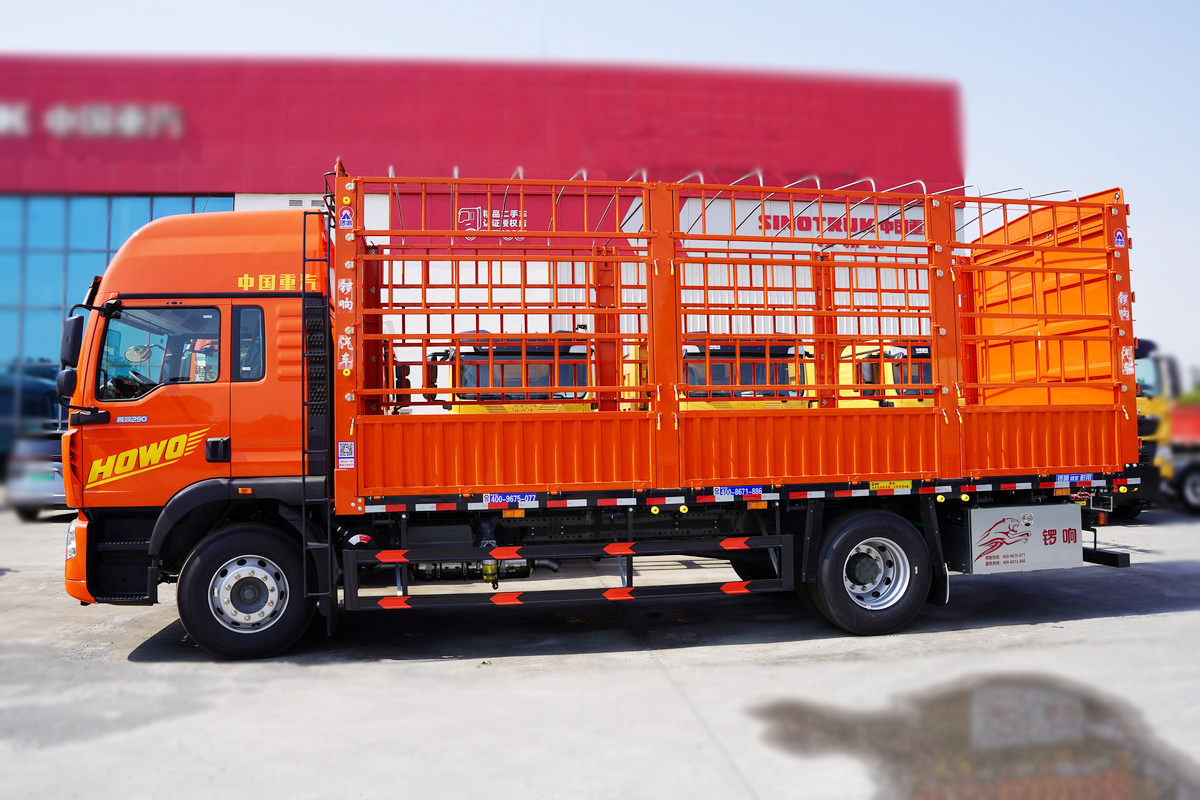

Cargo box parameters
Cargo container type:	Silo type	Cargo box length:	6.92 meters
Cargo box width:	2.47 meters	* Cargo compartment internal width:	2.47

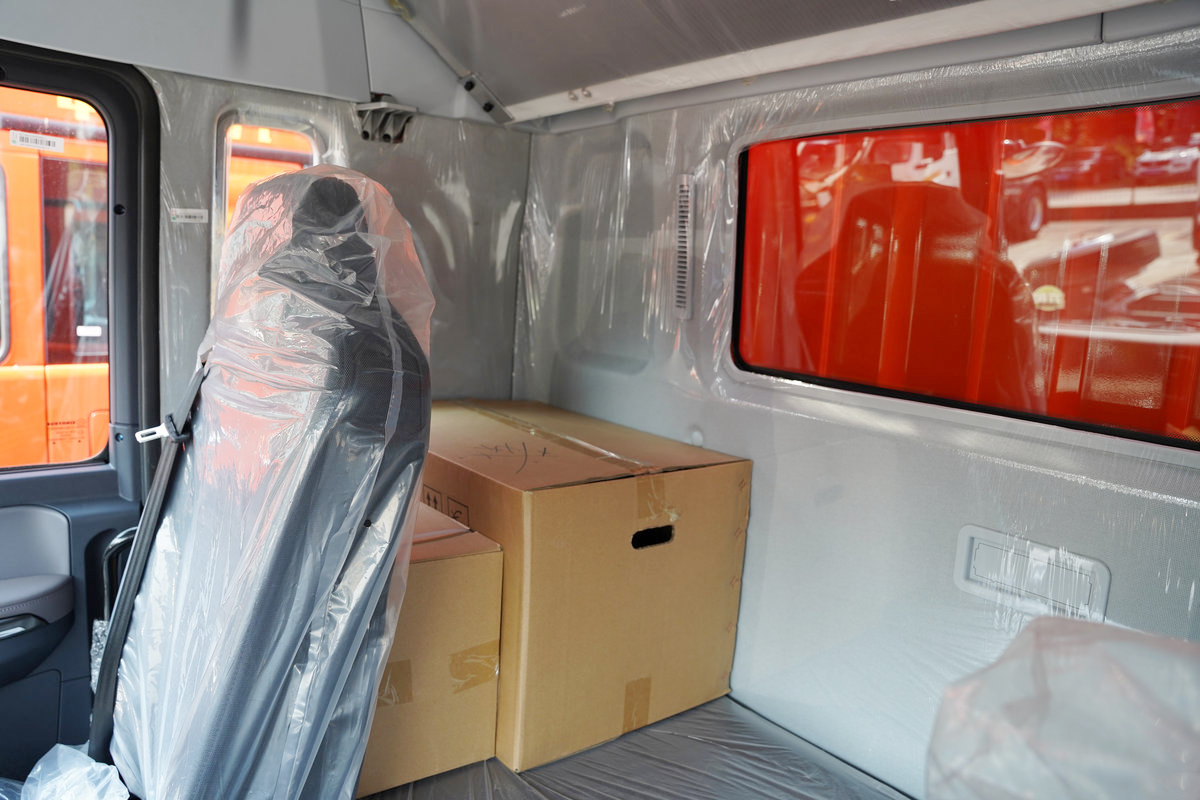

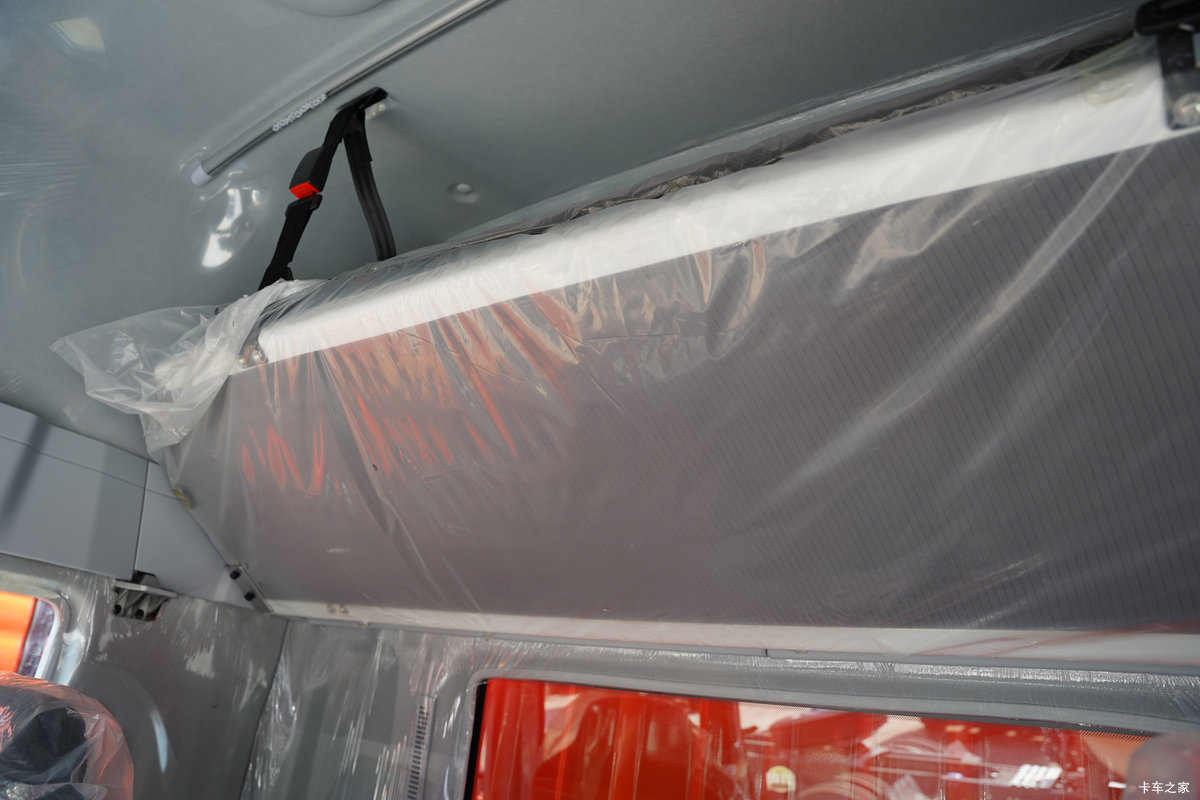

Cab parameters
Passenger capacity:	3 people	Number of rows of seats:	Half
Chassis parameters
Front axle allowable load:	6500kg	Rear axle allowable load:	11500kg
Number of leaf springs:	7/7+6
tire
Tire specifications:	295/80R22.5 18PR	Number of tires:	6
