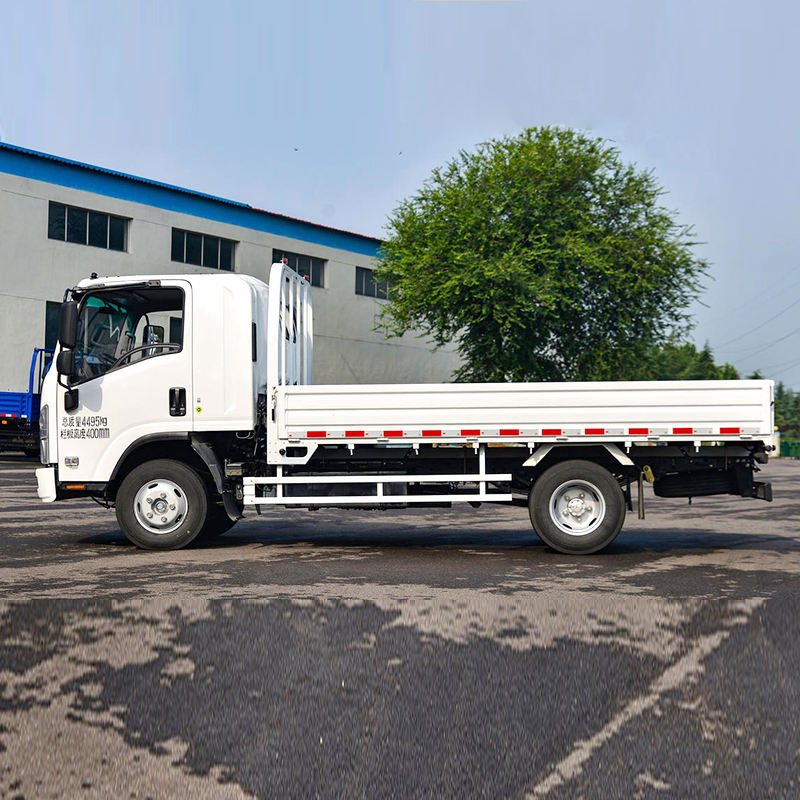

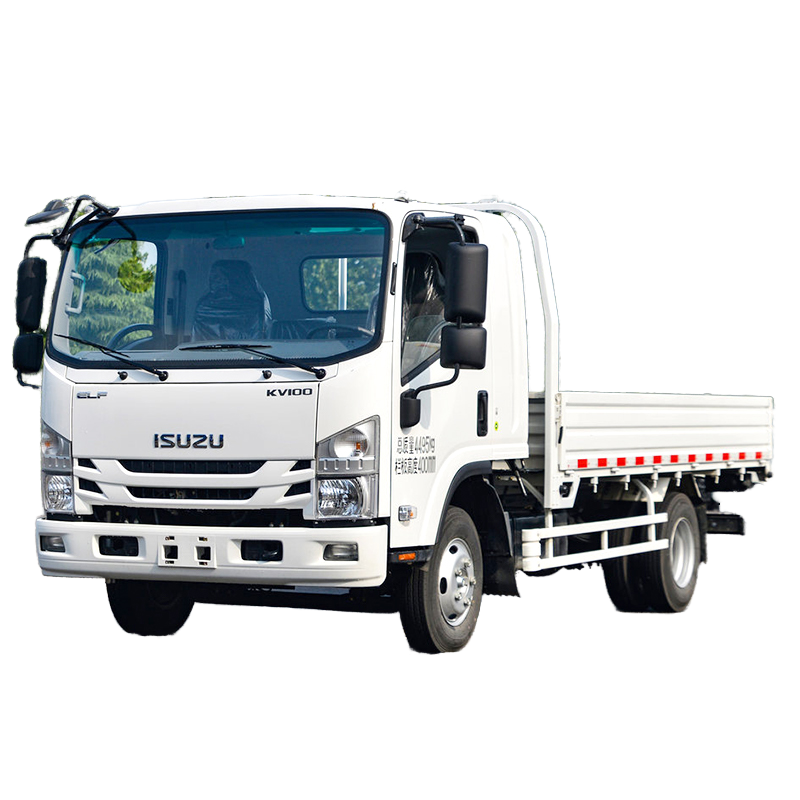

Isuzu KV100 120HP 3.79M Cargo Truck

Introduction

Introduction



Basic Information
Model number announced:	QL1043FMHA	type:	cargo trucks
Drive type:	4X2	Wheelbase:	3360mm
Container length level:	3.8 meters	engine:	Qingling Isuzu 4KH1CN6LB
Transmission:	Isuzu MSB-5MT	Rear axle ratio:	5.571
Vehicle length:	5.995 meters	Vehicle width:	2.15 meters
Vehicle height:	2.38 meters	Front track:	1685mm
Rear track:	1525mm	Total vehicle weight:	2.565 tons
Rated load:	1.735 tons	Total mass:	4.495 tons
Maximum speed:	115km/h	Place of origin:	Jiulongpo District, Chongqing
Tonnage class:	light truck	Driver's license:	A1, A2, B1, B2, C1
Approach angle:	19 degrees ()	Departure angle:	16 degrees ()
Front/Rear Suspension:	1.11/1.525 meters	*License plate (yellow/blue):	Yellow card
Energy type:	diesel fuel
Engine parameters
Engine brand:	Qingling Isuzu	Engine model:	Qingling Isuzu 4KH1CN6LB
Engine information:	Qingling Isuzu 4KH1	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	2.999L	Emission standards:	National VI
Maximum output power:	88kW	Maximum horsepower:	120 horsepower
Maximum torque:	290Nm
Transmission parameters
Transmission model:	Isuzu MSB-5MT	Gearbox brand:	Isuzu
Gear shifting method:	Manual	Forward gear:	5 gears
Number of archives:	1

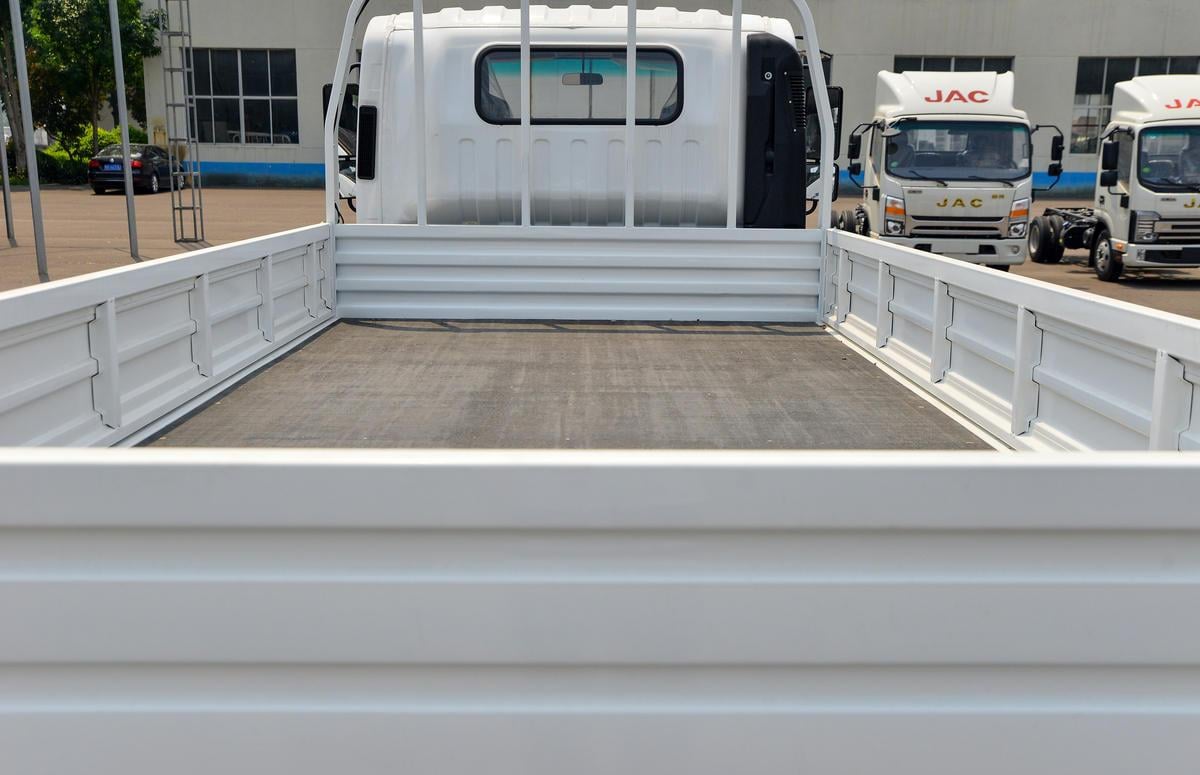

Cargo box parameters
Cargo container type:	Parapet	Cargo box length:	3.79 meters
Cargo box width:	2.05 meters	Cargo box height:	0.6 meters
* Cargo compartment internal width:	2.049999952

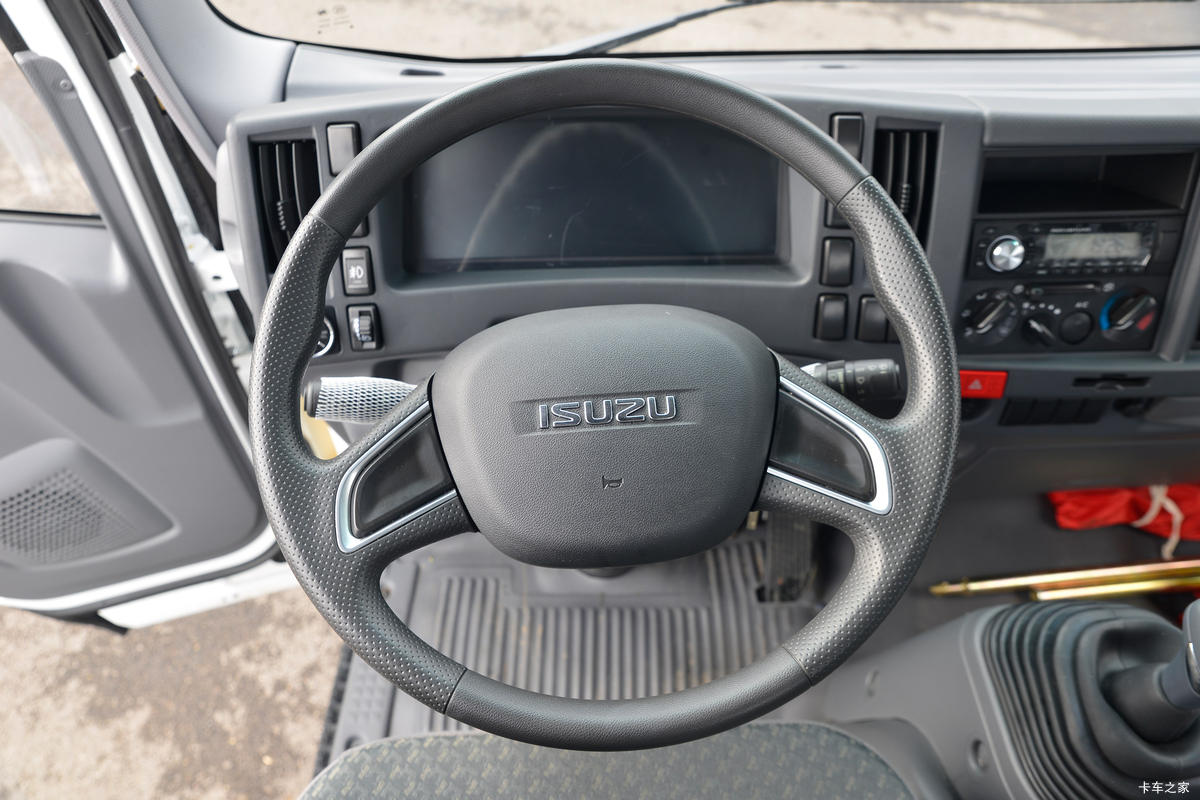

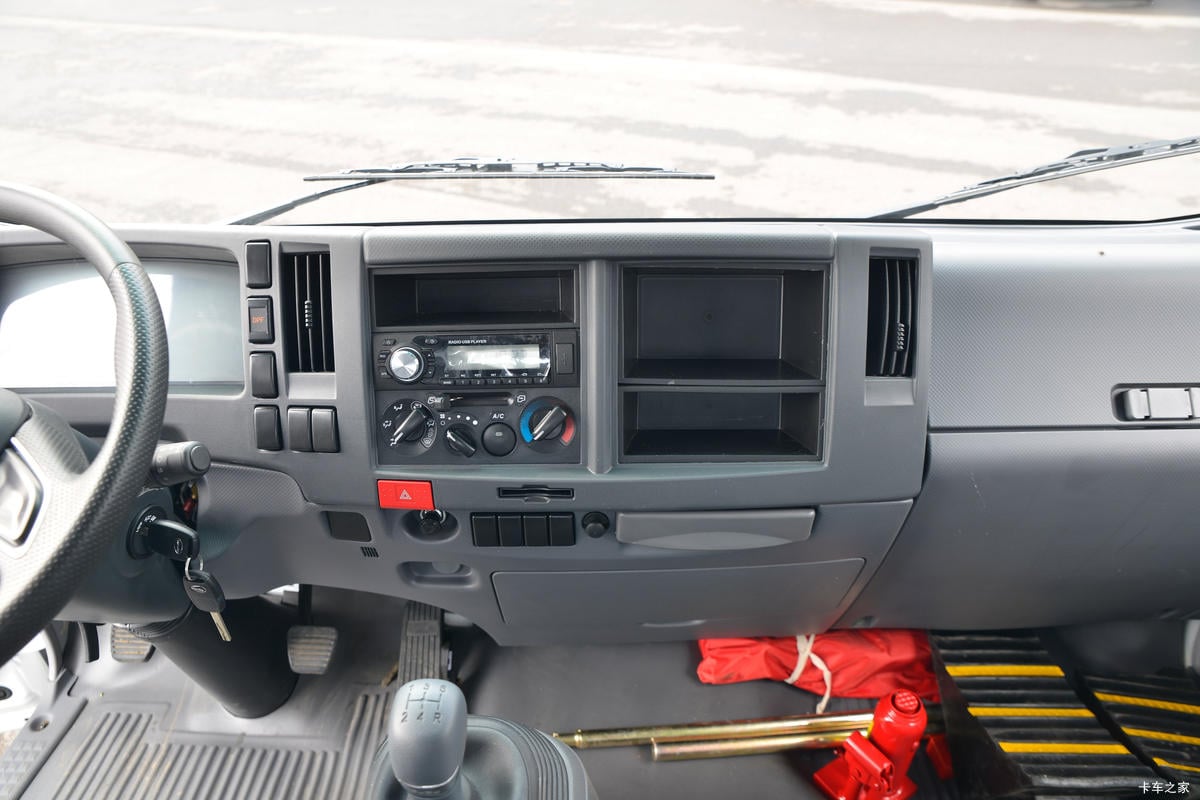

Cab parameters
Cab width:	1995mm	Passenger capacity:	3 people
Number of rows of seats:	Half
Chassis parameters
Front axle allowable load:	1750kg	Rear axle allowable load:	2745kg
Speed atio:	5.571	Number of leaf springs:	3/3+2
tire

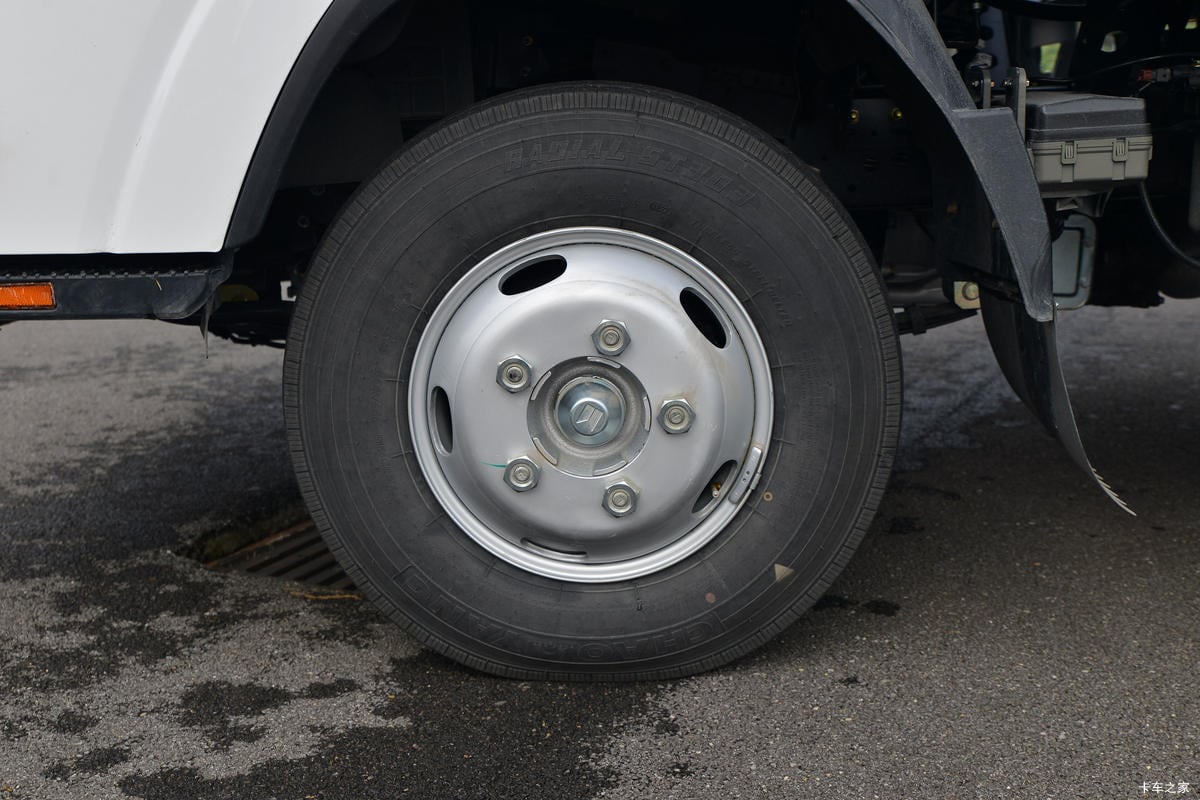

Tire specifications:	7.00R16LT 6PR	Tire type:	tubeless tire
Number of tires:	6	*Tire specifications (metric):	7
Air conditioning control methods	Manual	Vehicle braking type	air brake
