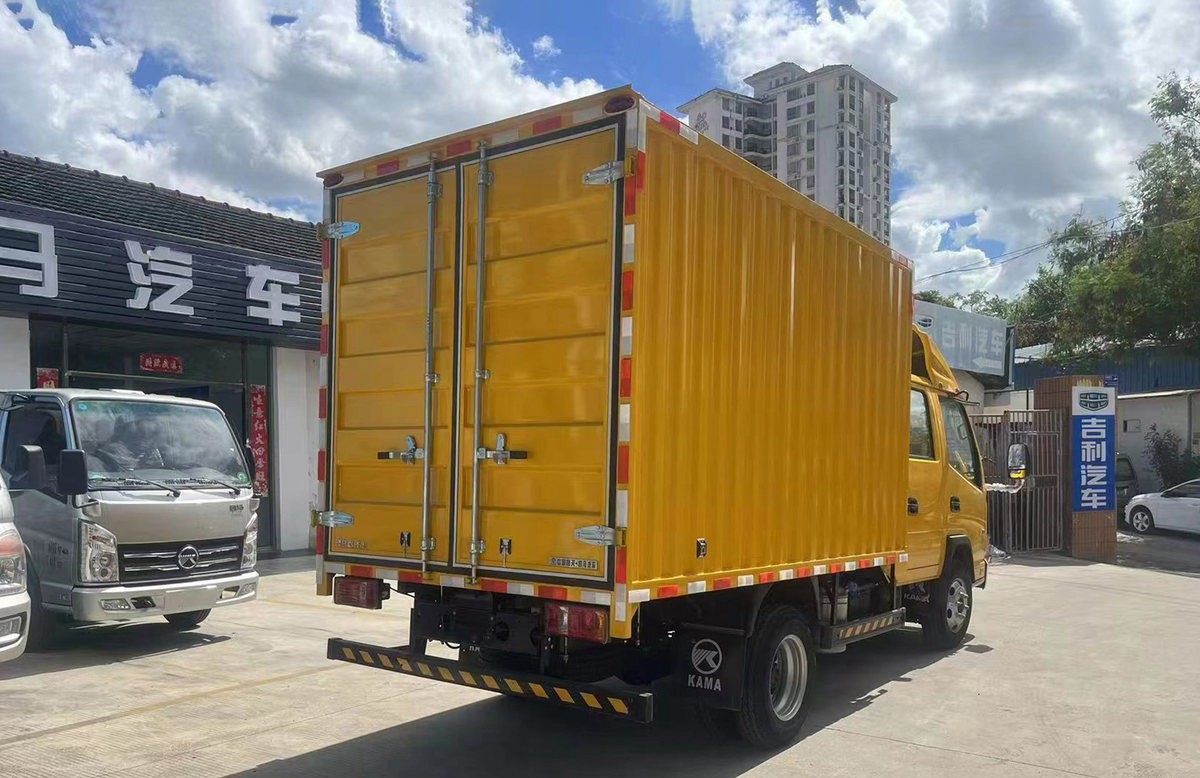

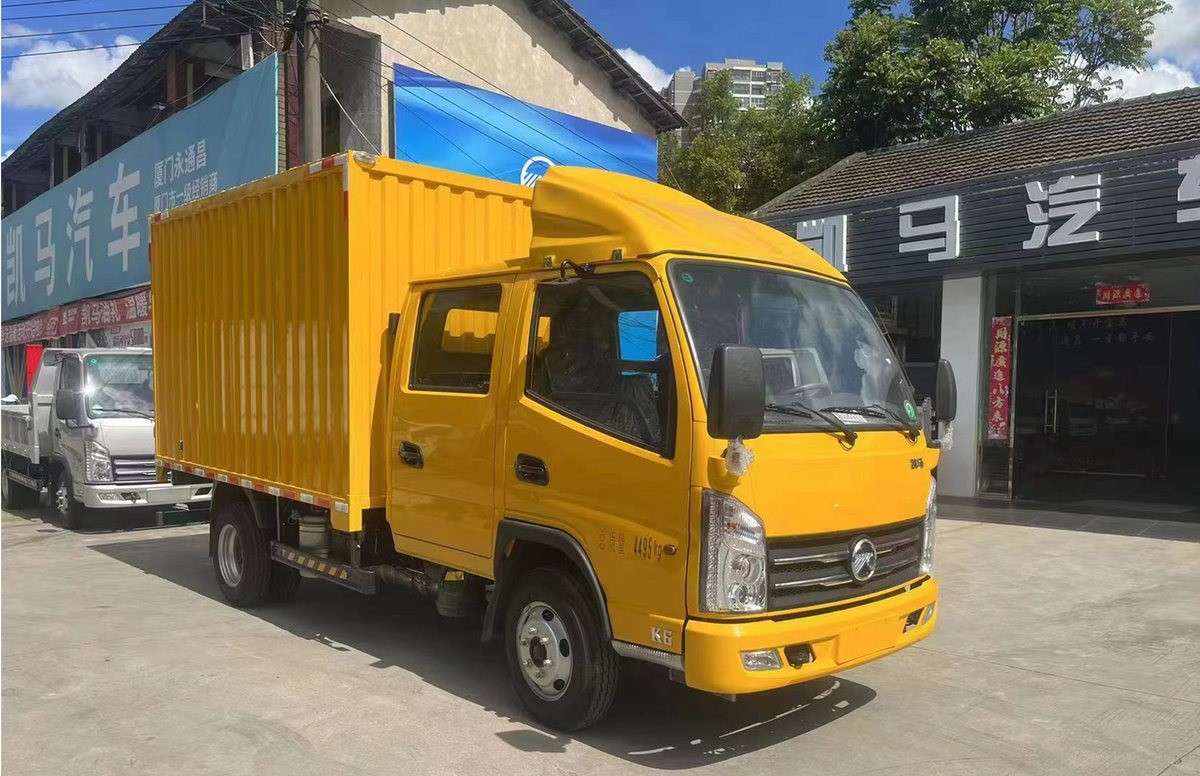

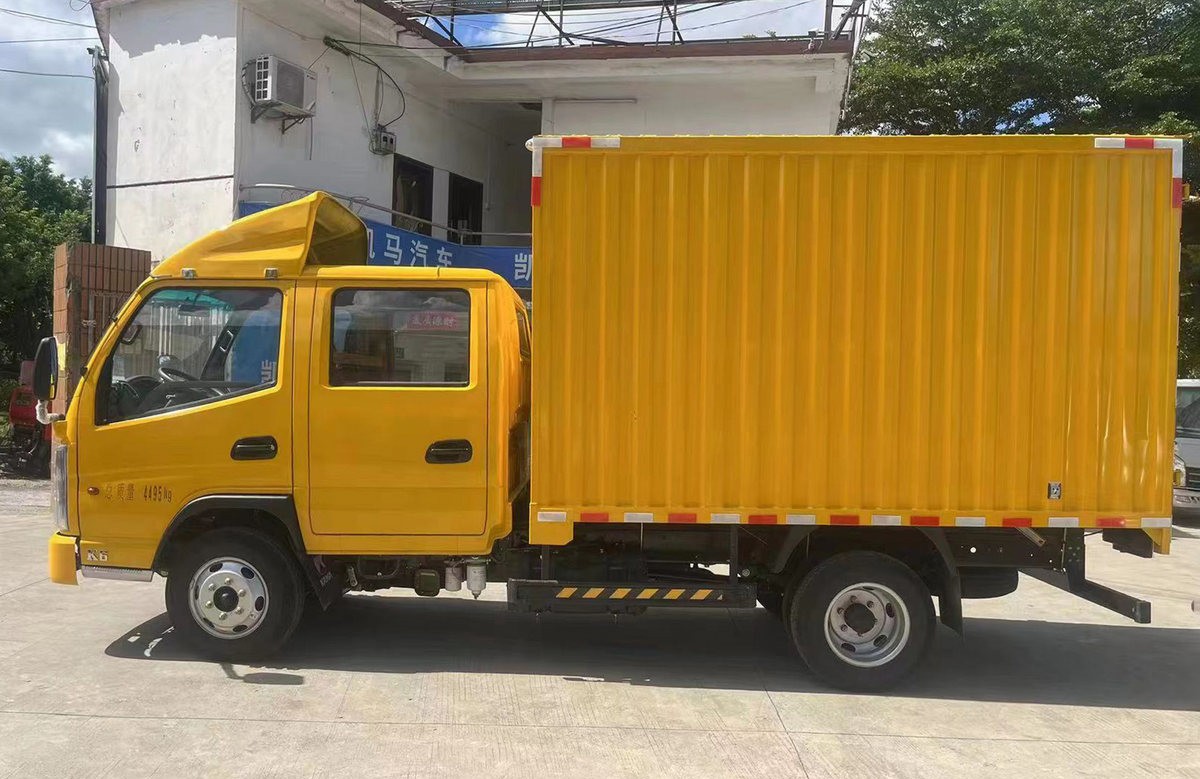

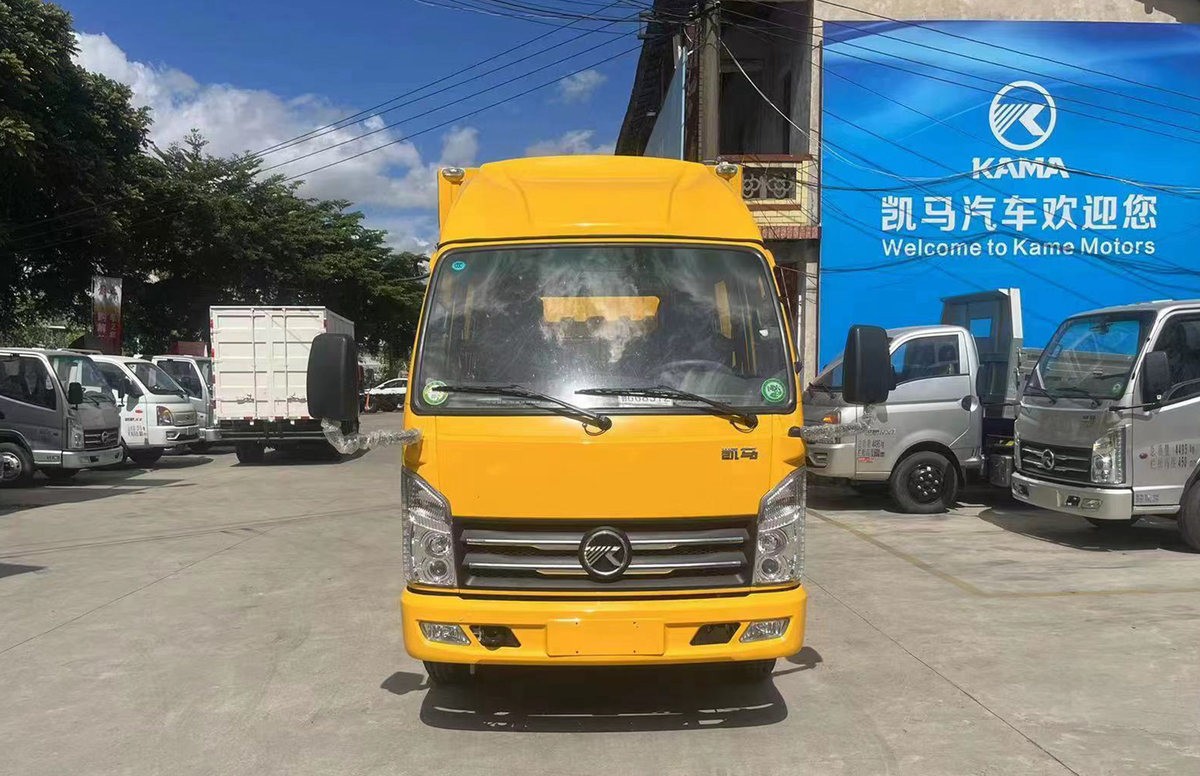

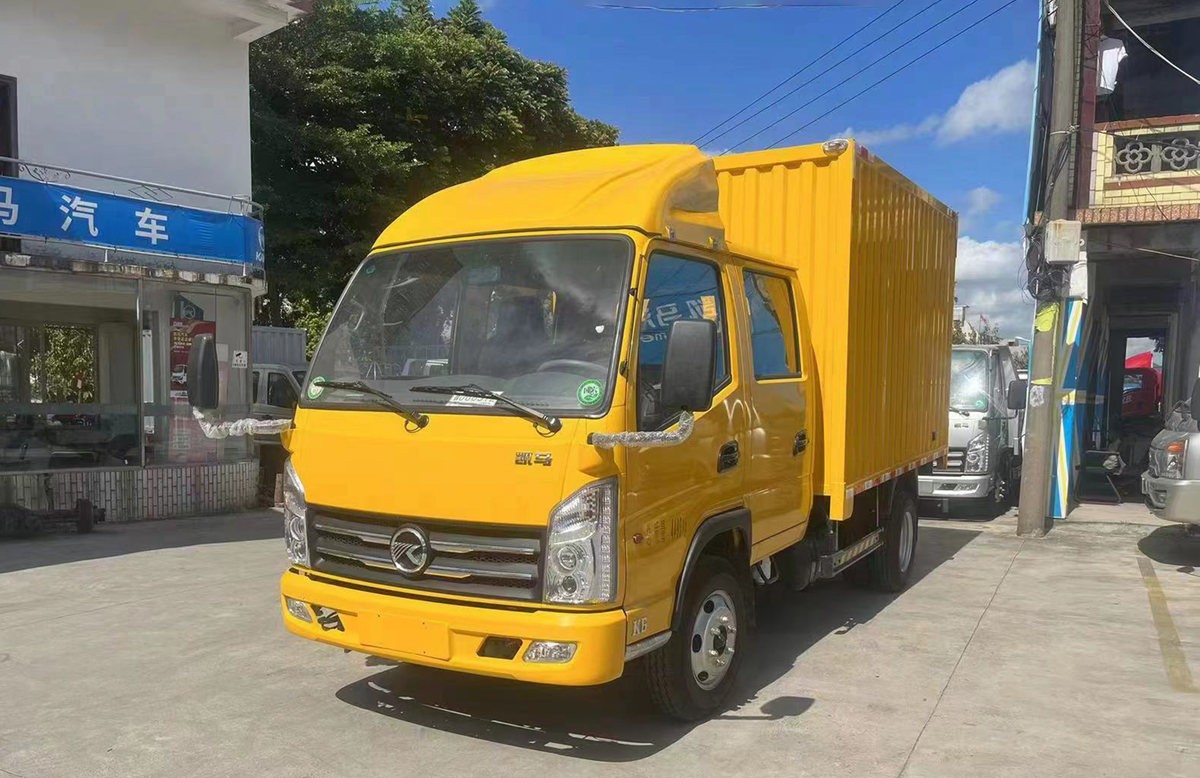

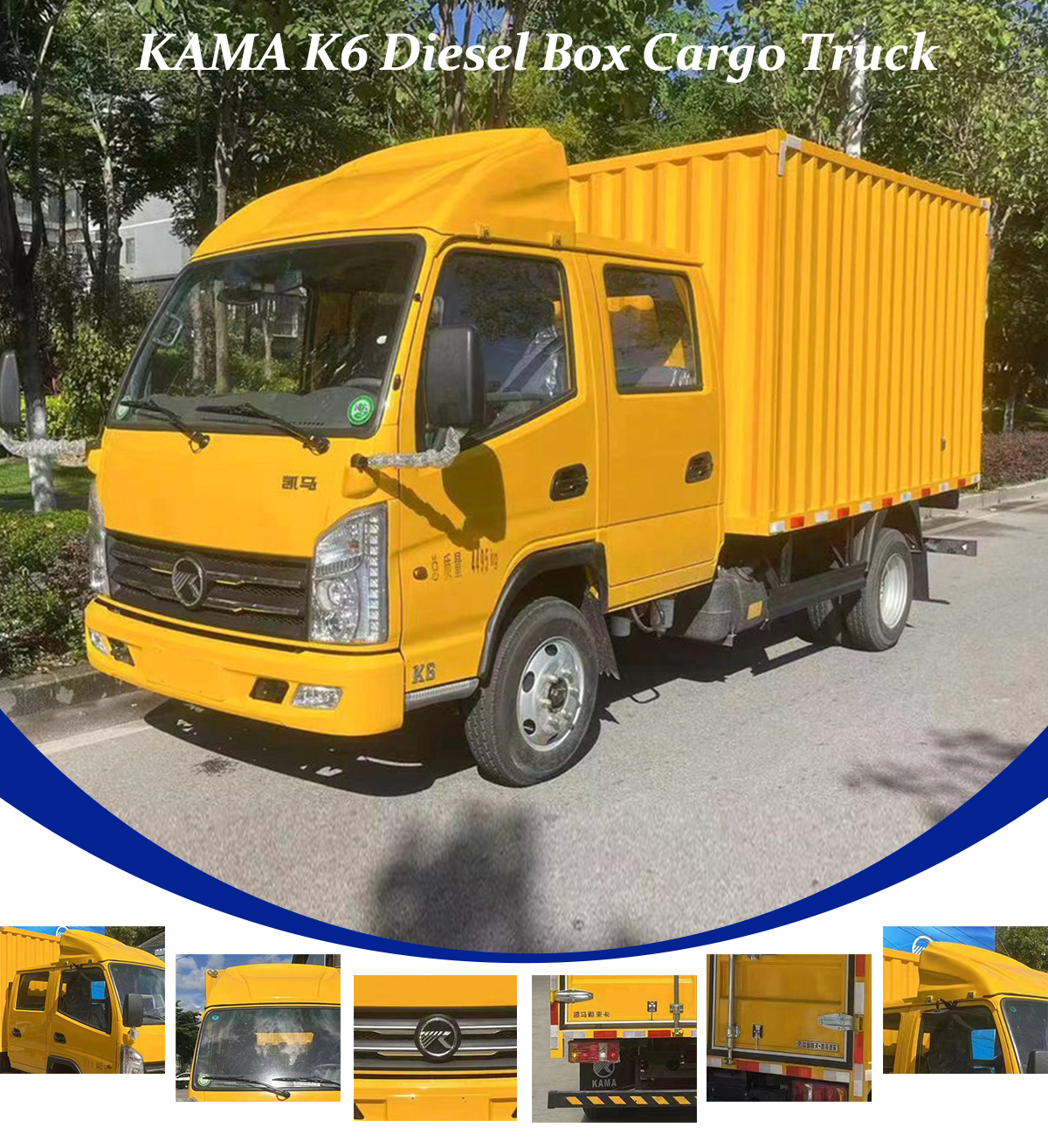

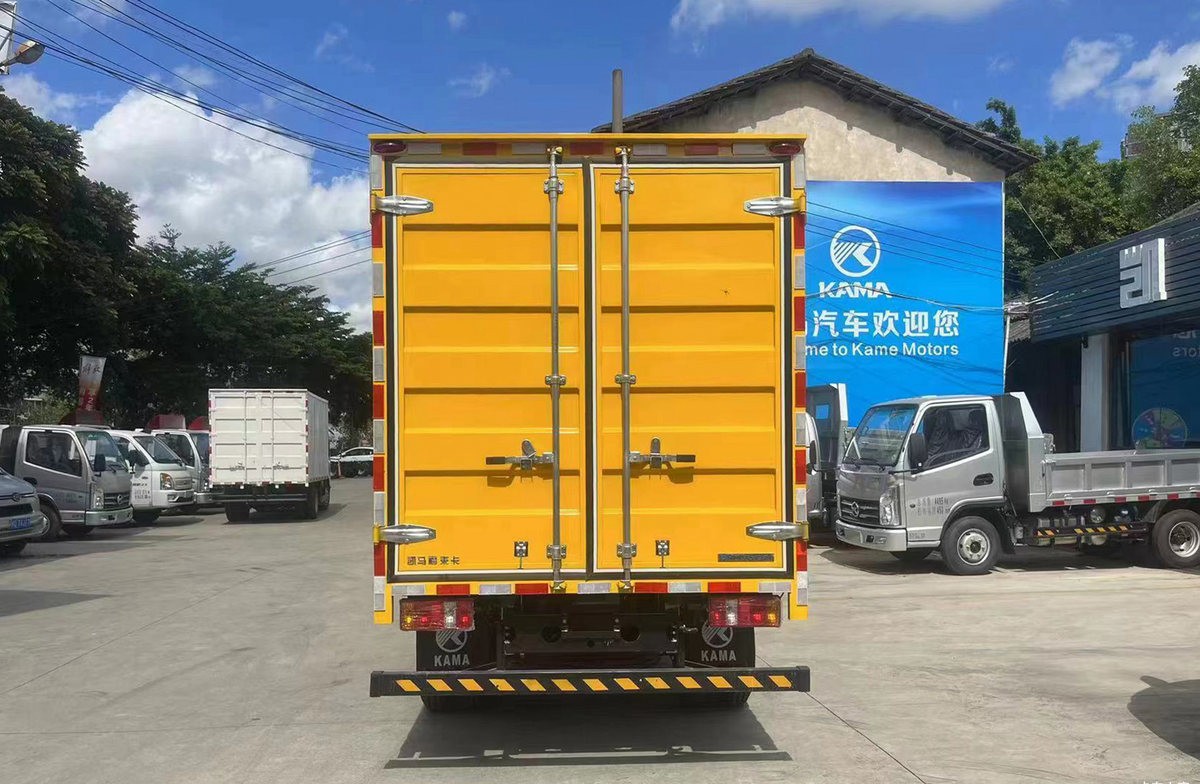

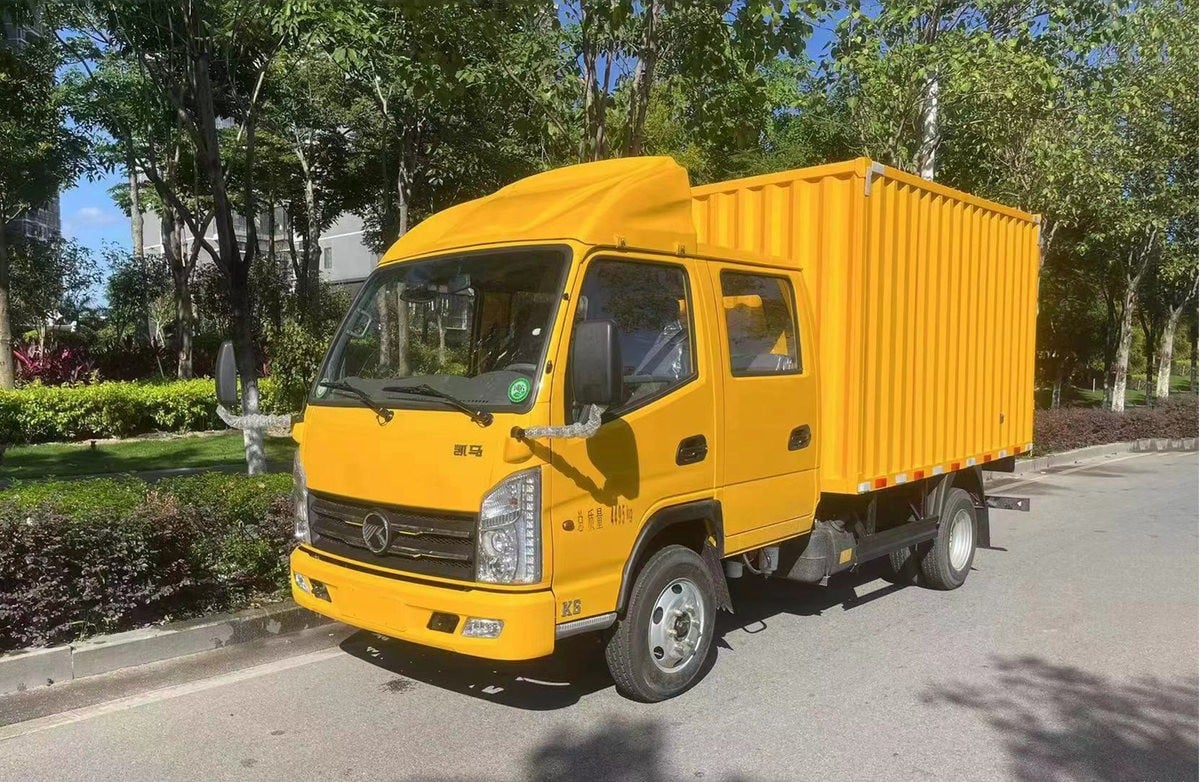

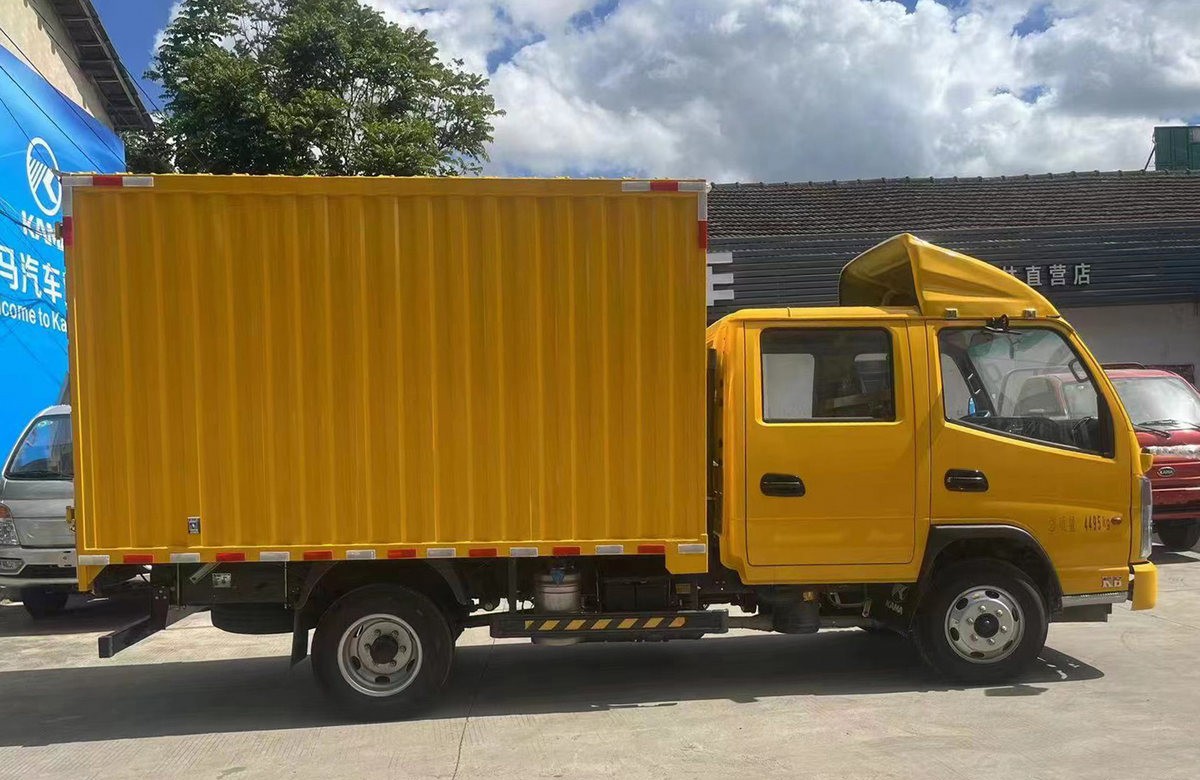

KAMA K6 Double Cab Box Truck

Introduction

Introduction


Basic Information
Model number announced:	KMC5042XXYA336S6	type:	Box truck
Drive type:	4X2	Wheelbase:	3360mm
Container length level:	3.2 meters	engine:	Xichai CA4DB1-13E6
Transmission:	Wanliyang 6TS40	Rear axle ratio:	4.875
Vehicle length:	5.995 meters	Vehicle width:	1.96 meters
Vehicle height:	2.94 meters	Front track:	1510mm
Rear track:	1590mm	Total vehicle weight:	2.805 tons
Rated load:	1.365 tons	Total mass:	4.495 tons
Maximum speed:	100km/h	Place of origin:	Shouguang, Shandong
Tonnage class:	light truck	Driver's license:	A1, A2, B1, B2, C1
Approach angle:	19 degrees	Departure angle:	17 degrees
Front/Rear Suspension:	1.125/1.51 meters	Energy type:	diesel fuel
Engine parameters
Engine brand:	Xichai	Engine model:	Xichai CA4DB1-13E6
Engine information:	Xichai 2.2L	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	2.2L	Emission standards:	National VI
Maximum output power:	95kW	Maximum horsepower:	130 horsepower
Maximum torque:	350N路m	Maximum torque speed:	1600-2400rpm
Rated speed:	3200rpm	Engine type:	Inline 4-cylinder, four-stroke, water-cooled, turbocharged and intercooled, BOSCH 1800BAR common rail system, EGR, DOC, DPF
Transmission parameters
Transmission model:	Wanliyang 6TS40	Gearbox brand:	Wanliyang
Gear shifting method:	Manual	Forward gear:	6 gears
Number of inverted boxes:	1
Cargo box parameters
Cargo container type:	Box	Cargo box length:	3.2 meters
Cargo box width:	1.86 meters	Cargo box height:	1.9 meters
* Cargo compartment internal width:	1.86
Cab parameters
Cab width:	1680mm	Passenger capacity:	5 people
Number of rows of seats:	Double row
Chassis parameters
Front axle allowable load:	1860kg	Rear axle allowable load:	2635kg
Speed atio:	4.875	Number of leaf springs:	7/9+5
tire
Tire specifications:	6.50R16LT 10PR	Number of tires:	6
