| Basic Information | |||
| Model number announced: | KMC1041Q306DP6 | type: | cargo trucks |
| Drive type: | 4X2 | Wheelbase: | 3360mm |
| Container length level: | 3.8 meters | engine: | Quanchai Q23-115E60 |
| Transmission: | 5-speed gearbox | Rear axle ratio: | 4.875 |
| Vehicle length: | 5.995 meters | Vehicle width: | 2.15 meters |
| Vehicle height: | 2.38 meters | Front track: | 1530mm |
| Rear track: | 1490mm | Total vehicle weight: | 2.565 tons |
| Rated load: | 1.8 tons | Total mass: | 4.495 tons |
| Maximum speed: | 100km/h | Place of origin: | Shouguang, Shandong |
| Tonnage class: | light truck | Driver's license: | A1, A2, B1, B2, C1 |
| Approach angle: | 19 degrees | Departure angle: | 19 degrees |
| Front/Rear Suspension: | 1.125/1.51 meters | *License plate (yellow/blue): | Blue Plate |
| Energy type: | diesel fuel | ||
| Engine parameters | |||
| Engine brand: | All Shiba | Engine model: | Quanchai Q23-115E60 |
| Engine information: | Quanchai 2.3L | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.3L | Emission standards: | National VI |
| Maximum output power: | 85kW | Maximum horsepower: | 115 horsepower |
| Maximum torque: | 320N m | Maximum torque speed: | 2000rpm |
| Rated speed: | 3000rpm | Engine type: | Inline four-cylinder, water-cooled, four-stroke, turbocharged and intercooled, high-pressure common rail |
| Transmission parameters | |||
| Transmission model: | 5-speed gearbox | Gear shifting method: | Manual |
| Forward gear: | 5 gears | Number of inverted boxes: | 1 |

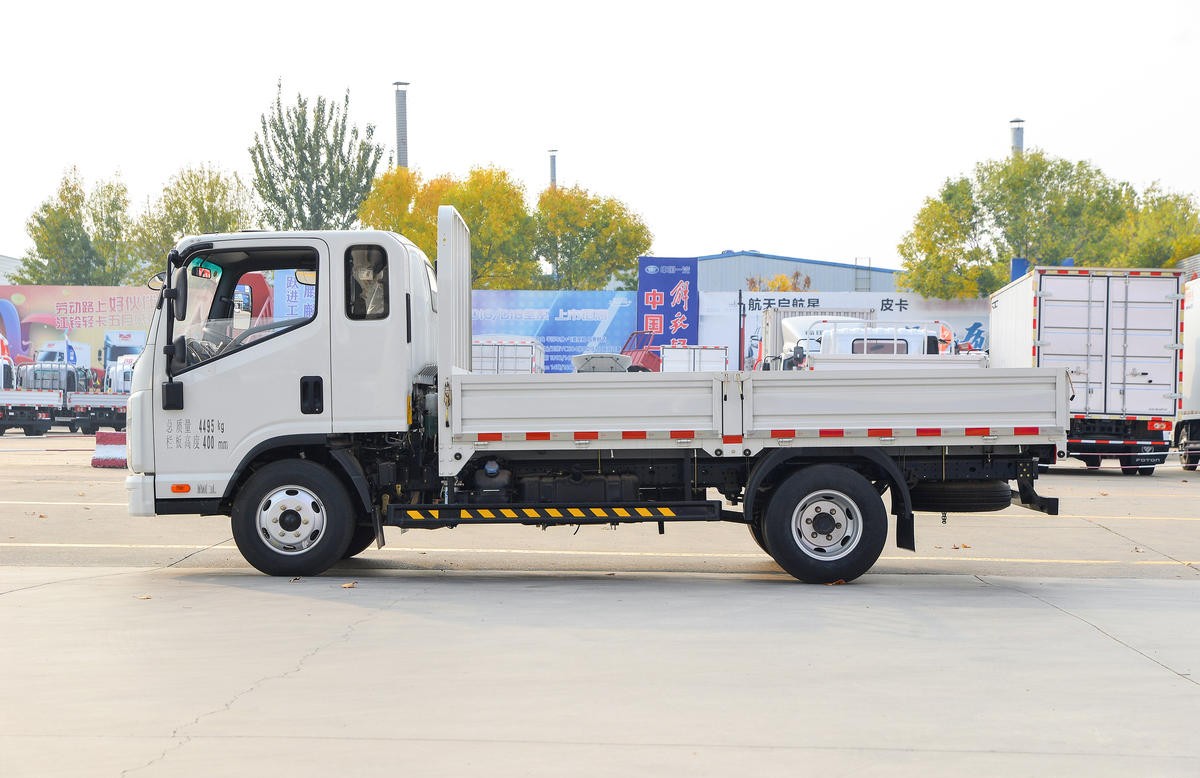

| Cargo box parameters | |||
| Cargo container type: | Parapet | Cargo box length: | 3.83 meters |
| Cargo box width: | 1.92 meters | Cargo box height: | 0.4 meters |
| * Cargo compartment internal width: | 1.92 | ||

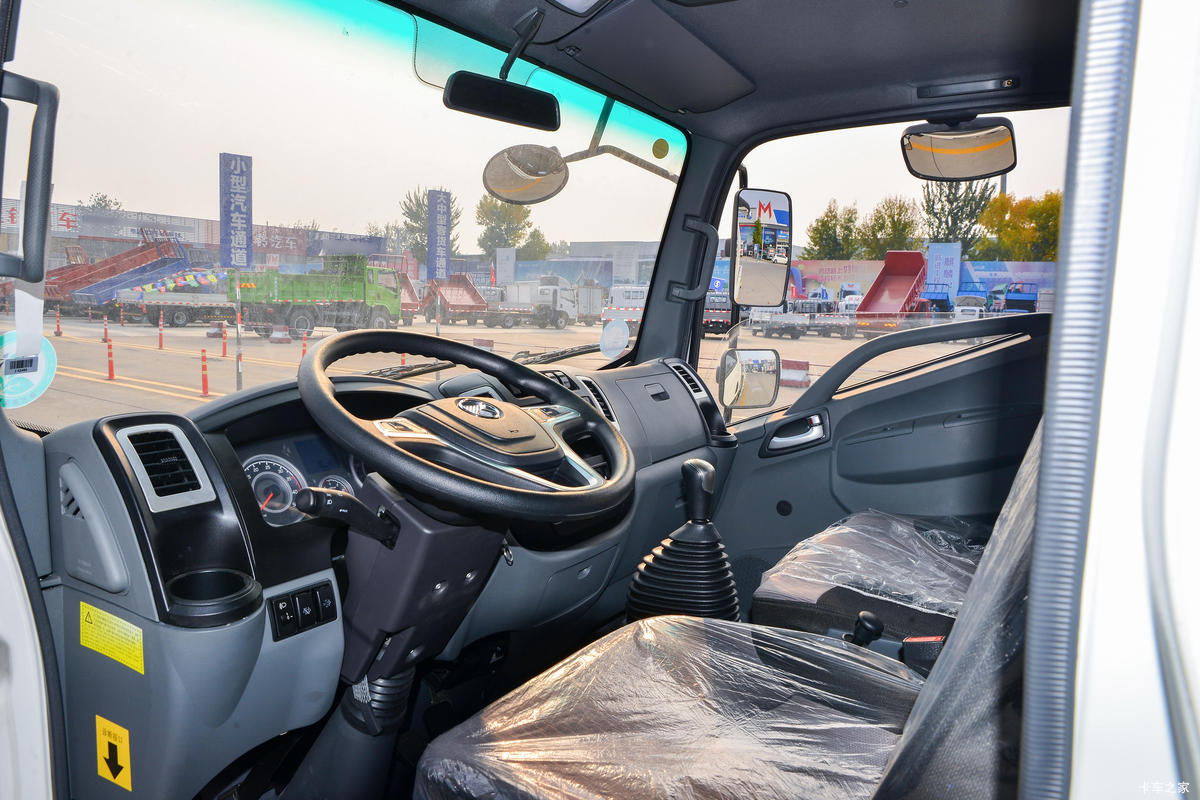

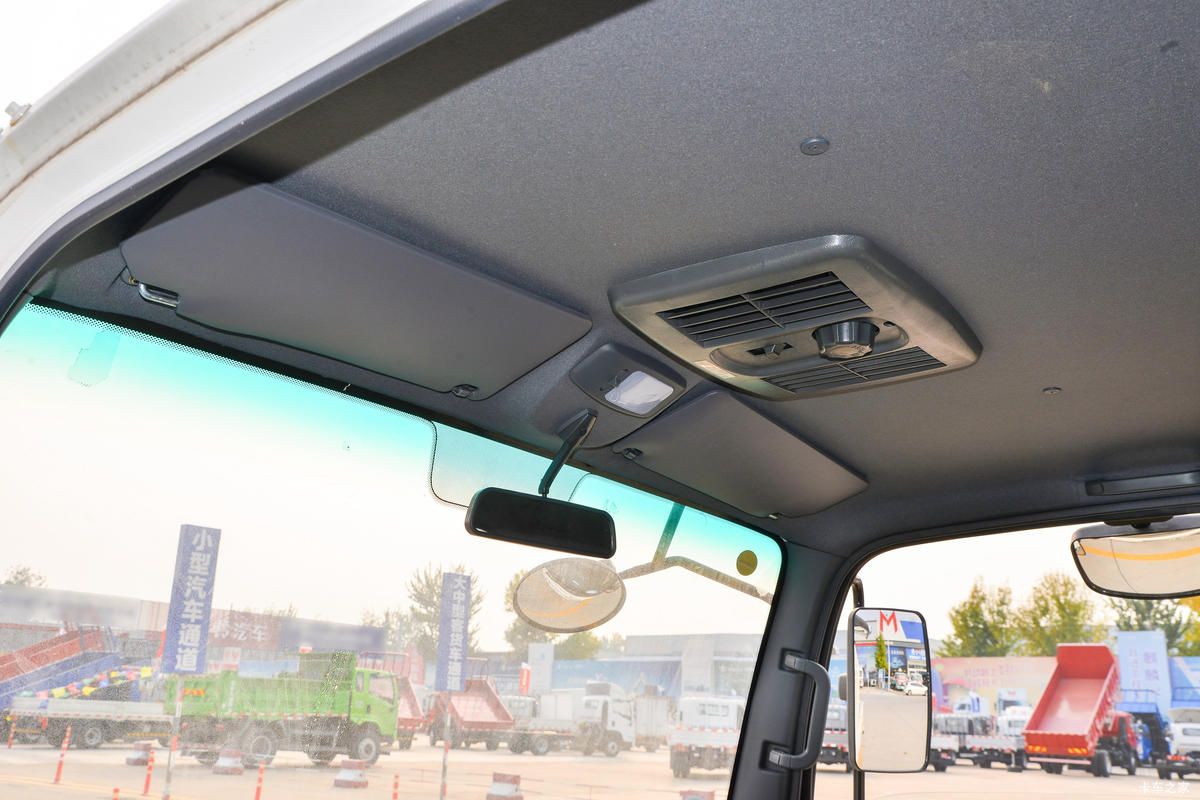

| Cab parameters | |||
| Cab width: | 1760mm | Passenger capacity: | 2 people |
| Number of rows of seats: | Half | ||
| Chassis parameters | |||
| Front axle allowable load: | 1860kg | Rear axle allowable load: | 2635kg |
| Speed atio: | 4.875 | Number of leaf springs: | 3/5+3 |
| tire | |||

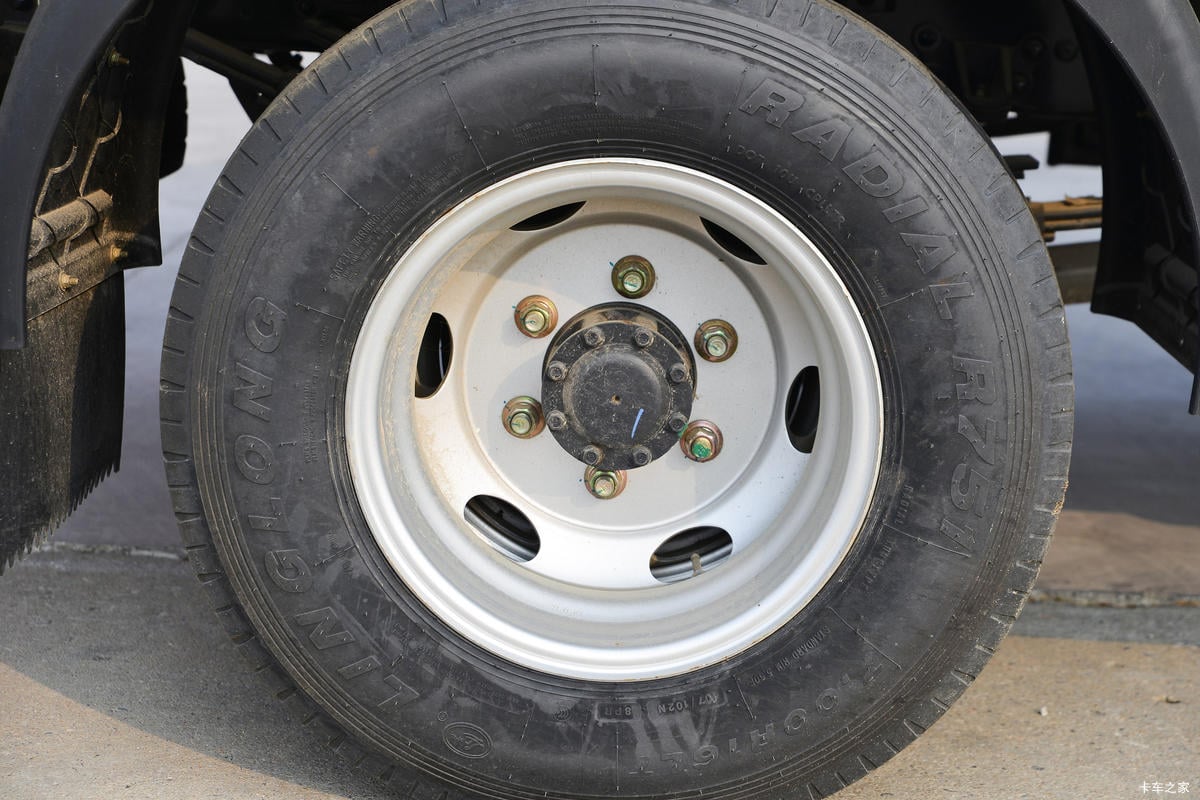

| Tire specifications: | 7.00R16LT 8P | Number of tires: | 6 |
| *Tire specifications (imperial units): | 7 | ||
| Braking | |||
| Vehicle braking type: | air brake | Parking brake: | Air brake |
