KAMA Flatbed Truck

Home /  Products  /  Cargo Truck /  KAMA Cargo Truck /  KAMA Flatbed Truck

KAMA Flatbed Truck

KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen
KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen

KAMA M6 cargo trucks Cost-effective KAMA Flatbed Truck Cargo Truck 4x2 with Heavy-duty Chassis, Cargo Truck for Logistics Fleet Procuremen

Get A Quote
  • Introduction
Introduction

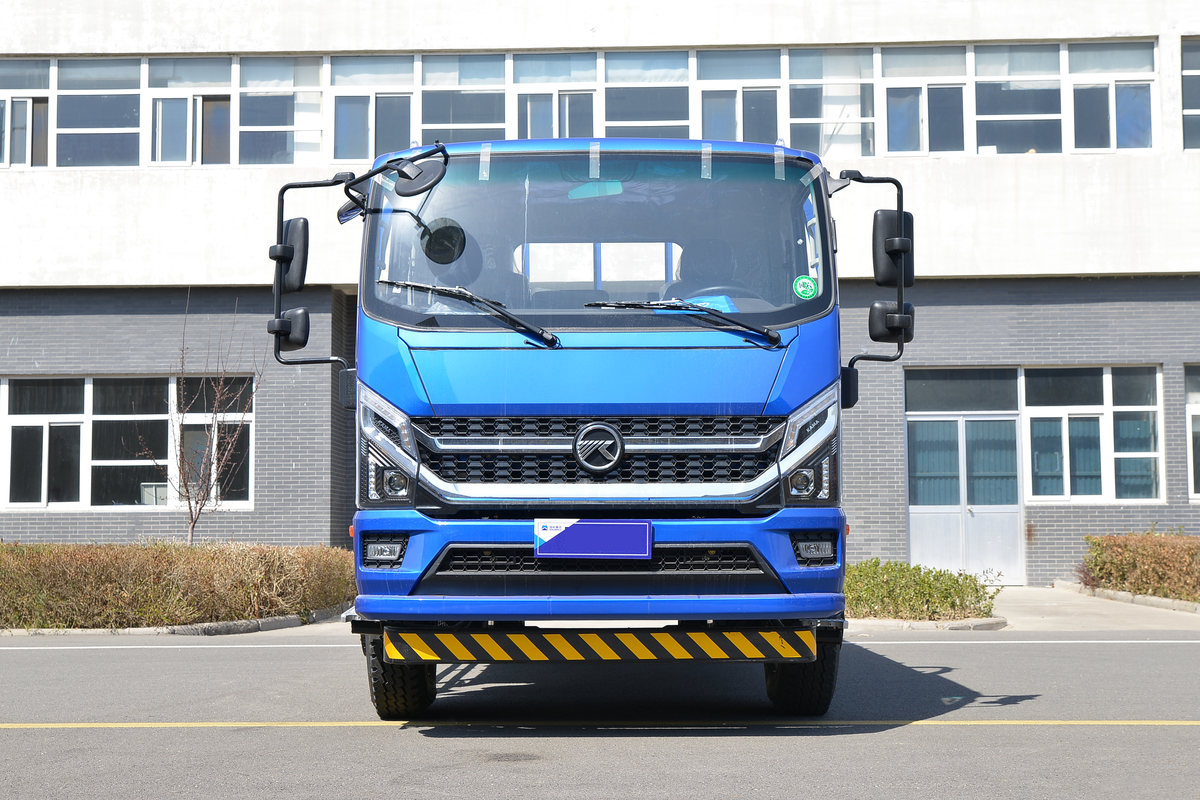

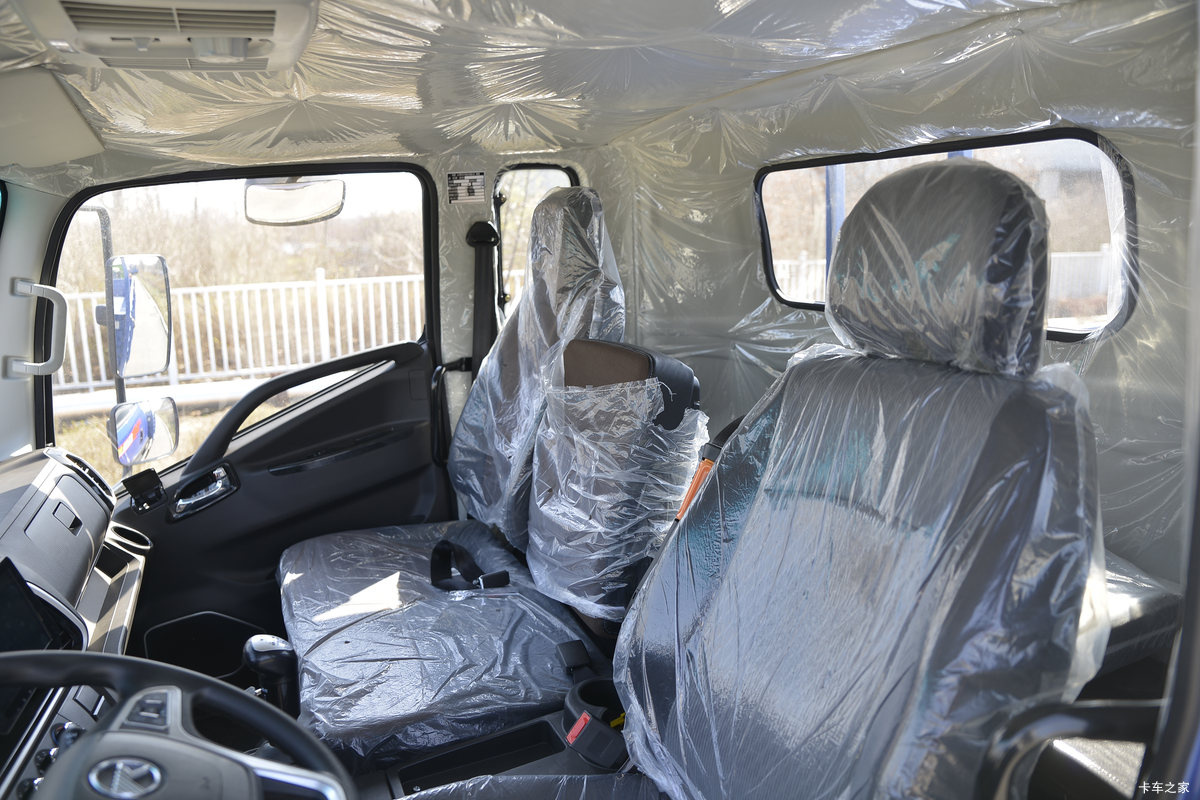

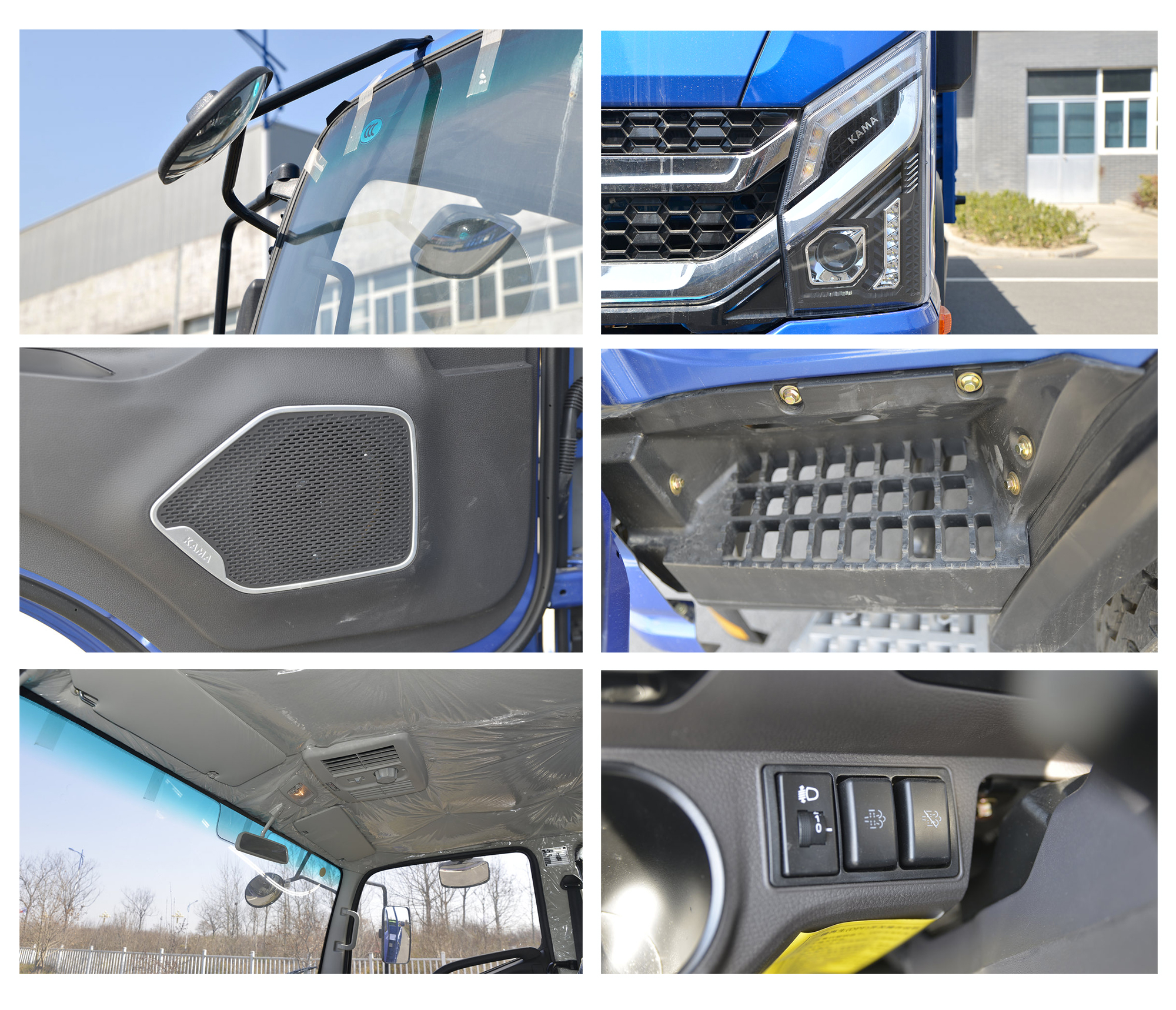

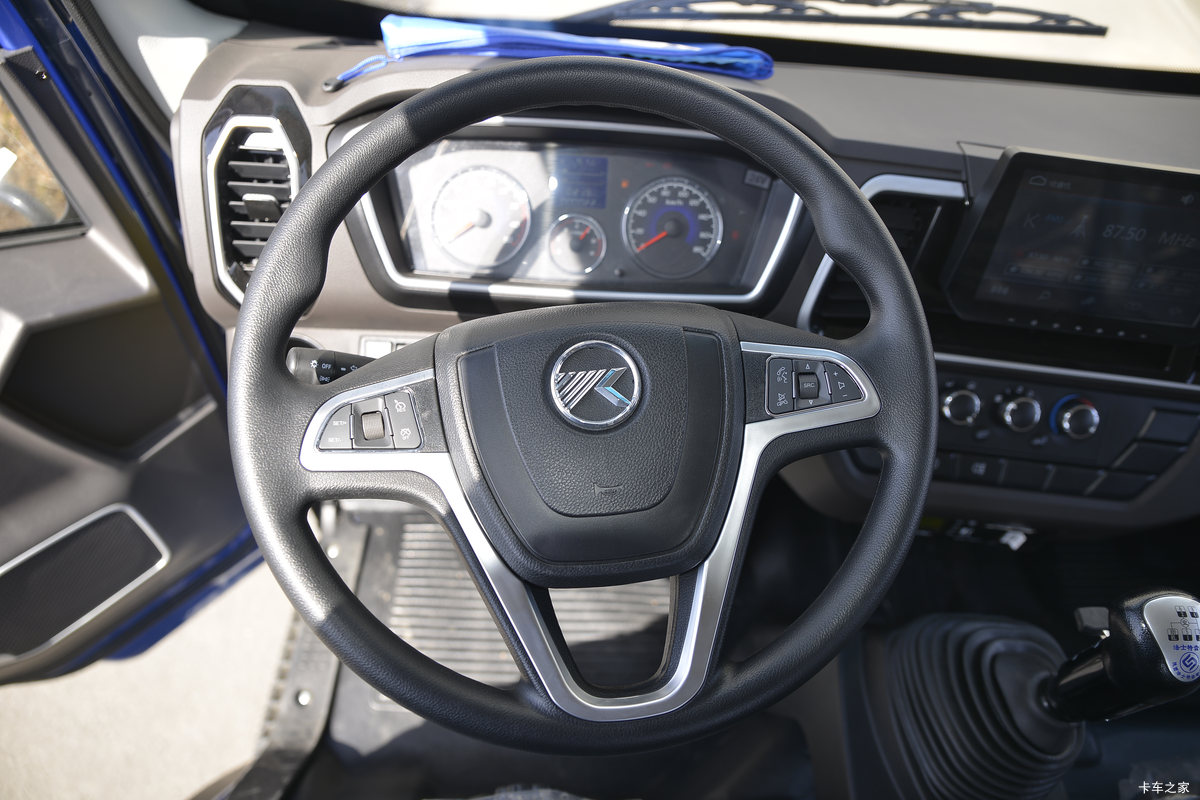

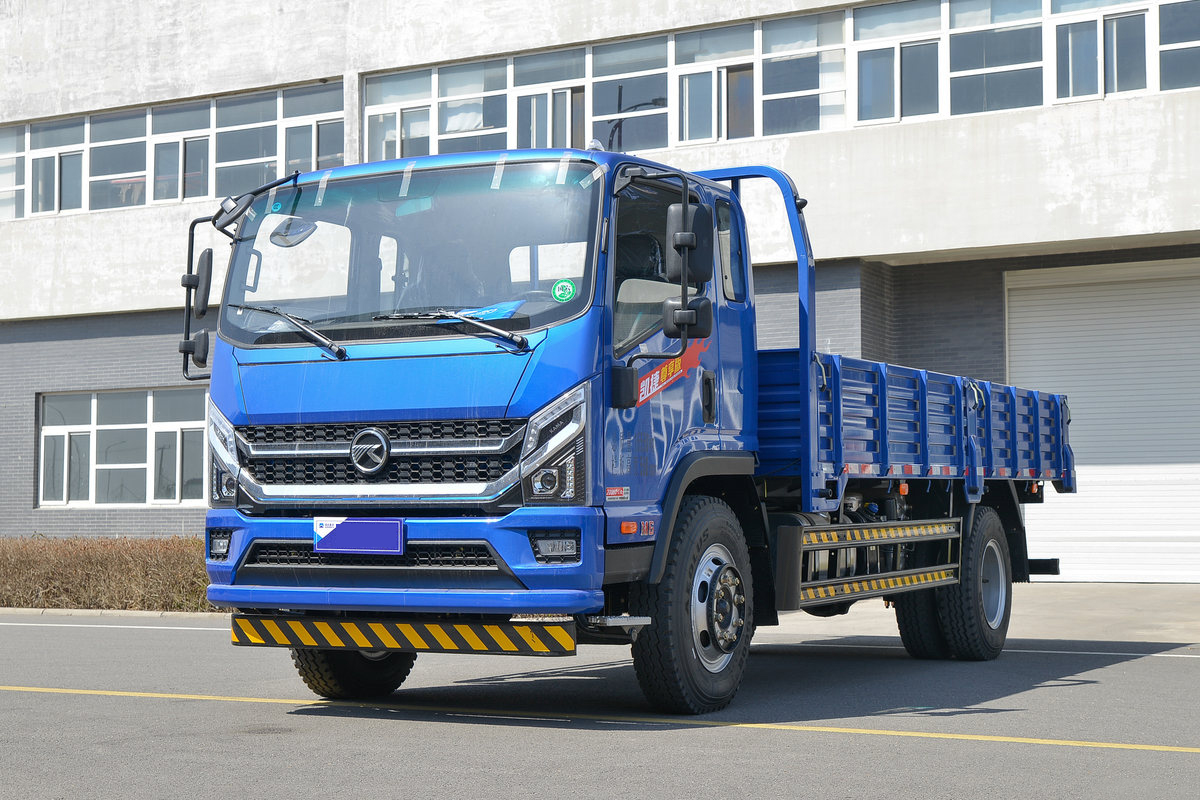

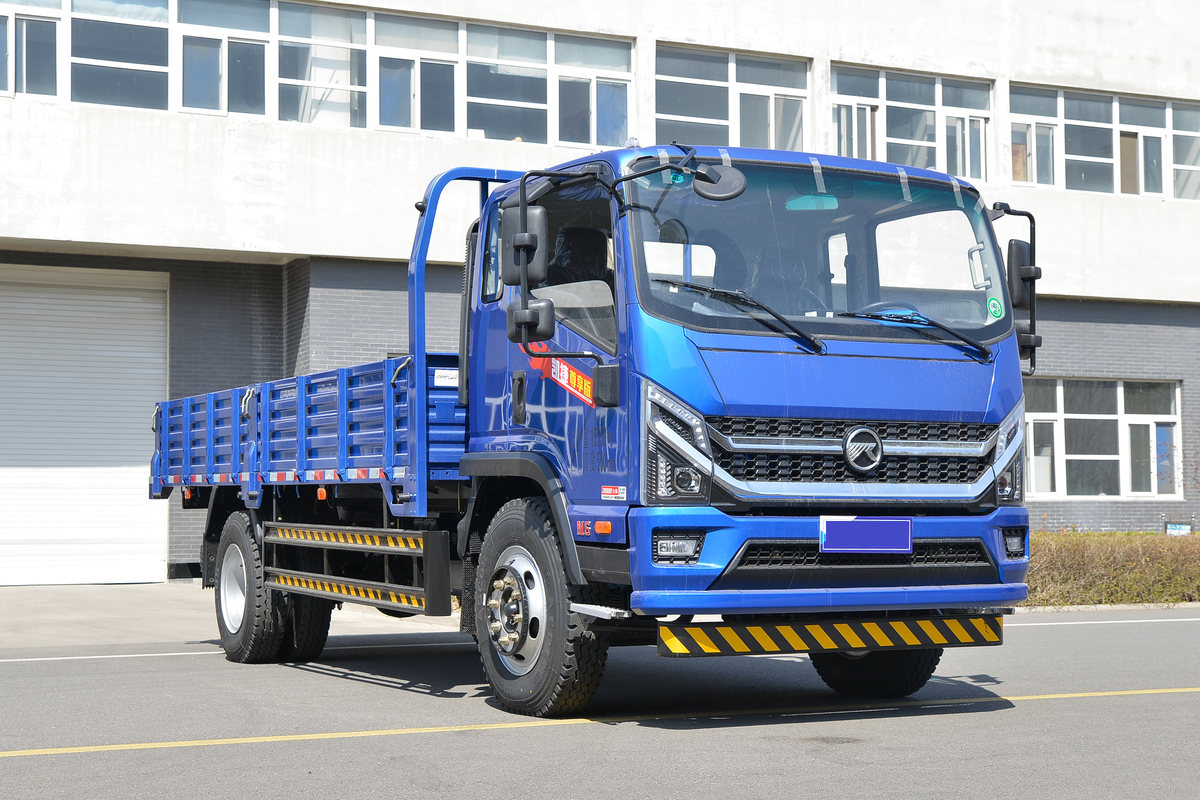

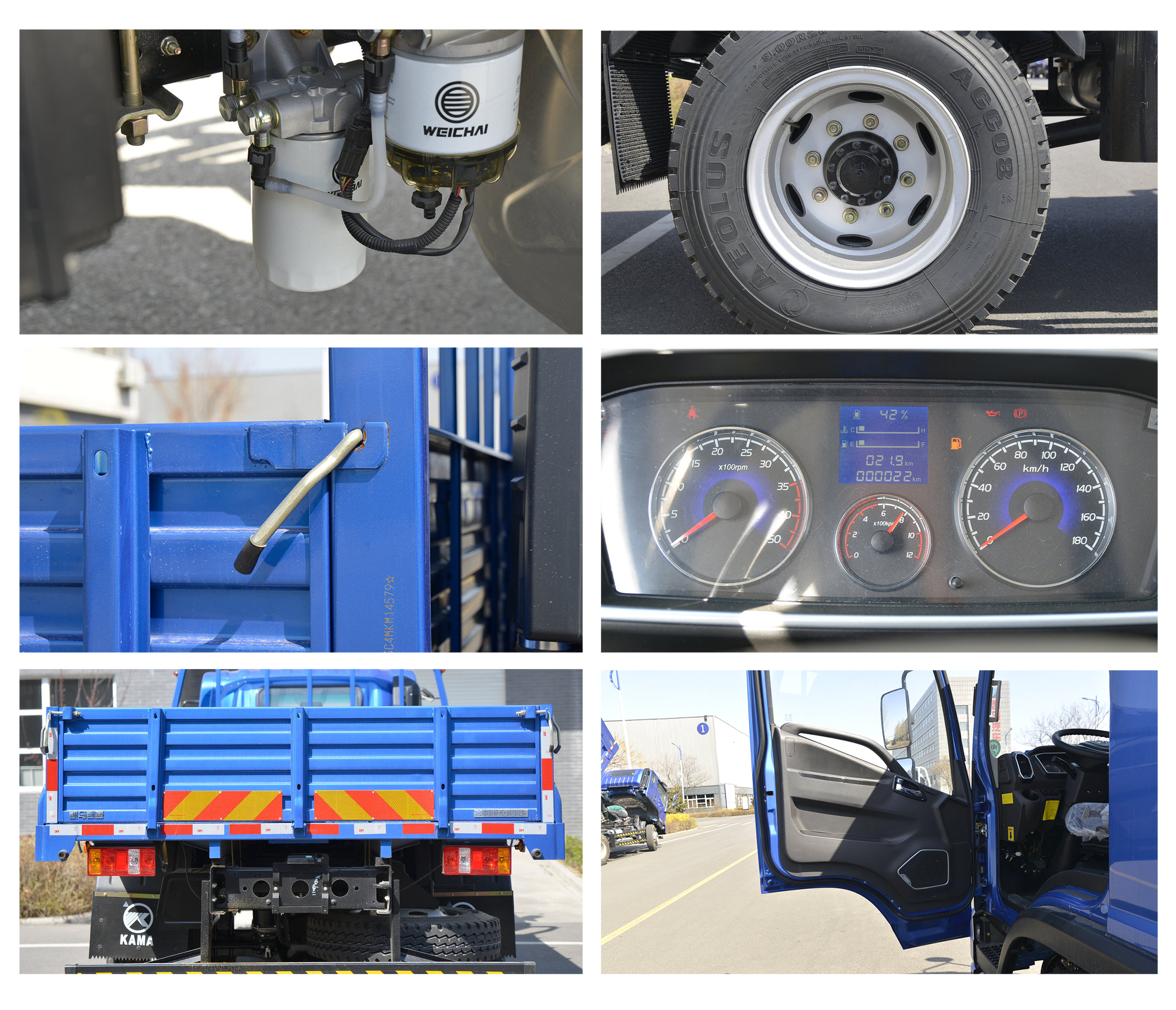

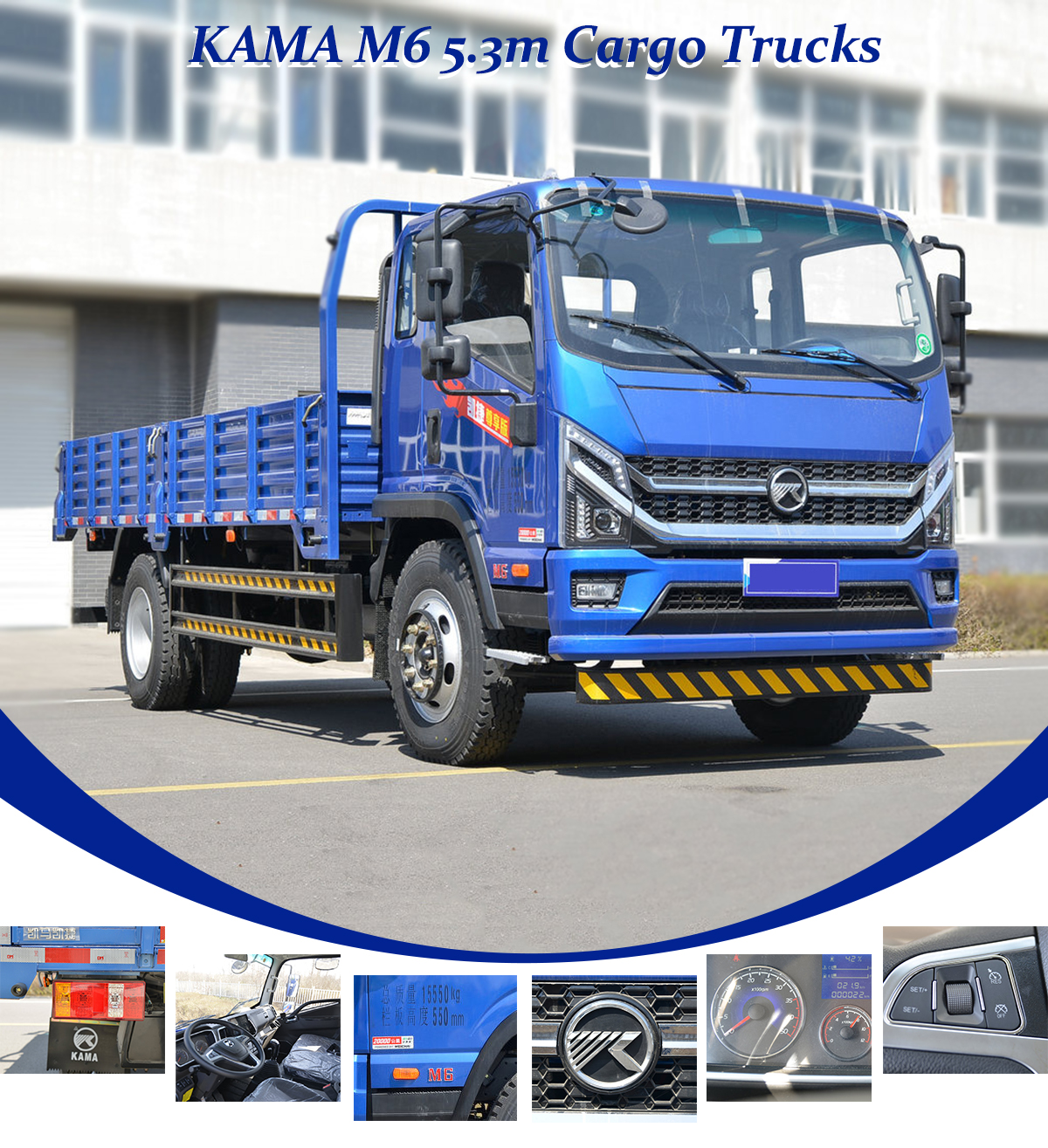

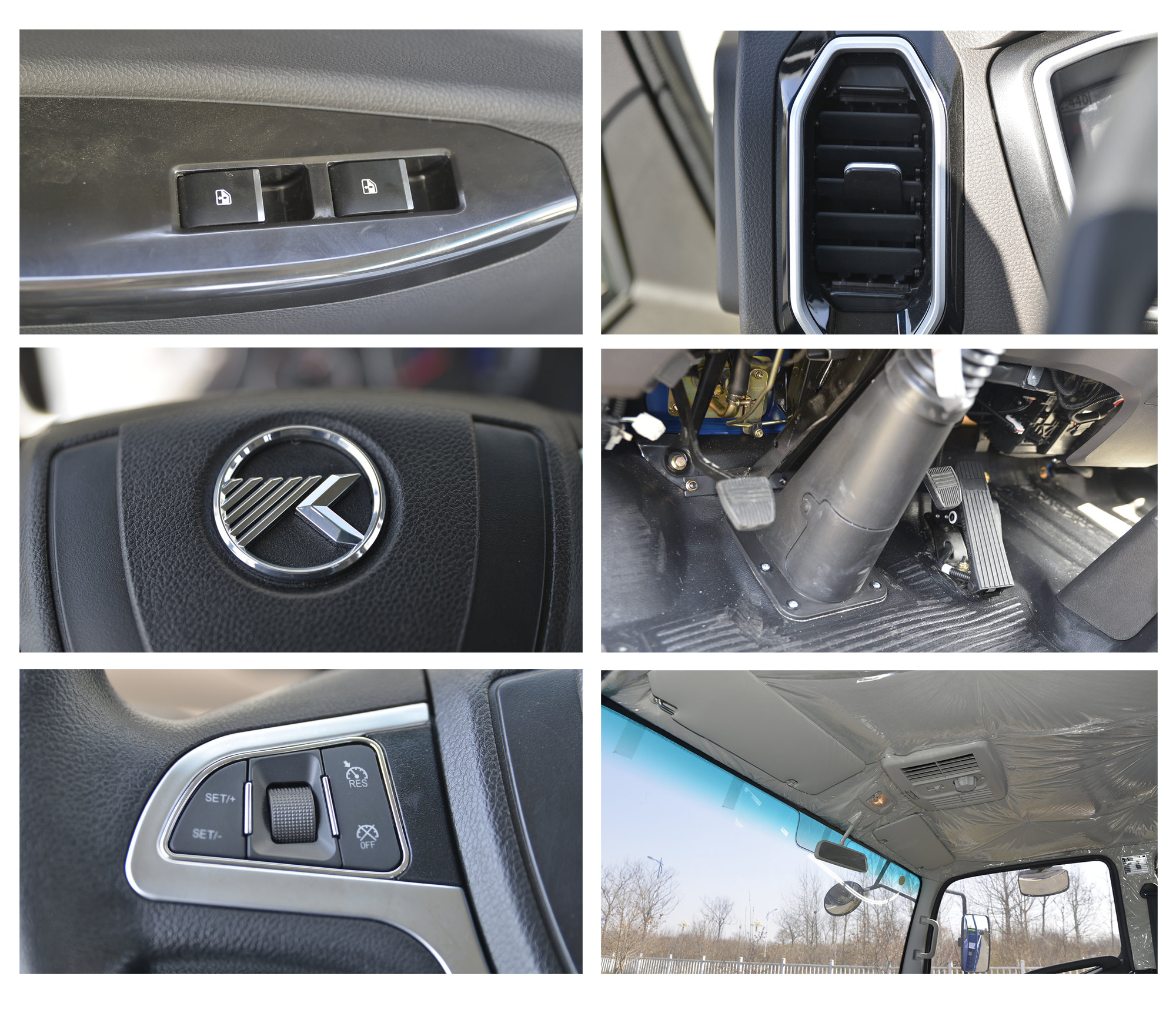

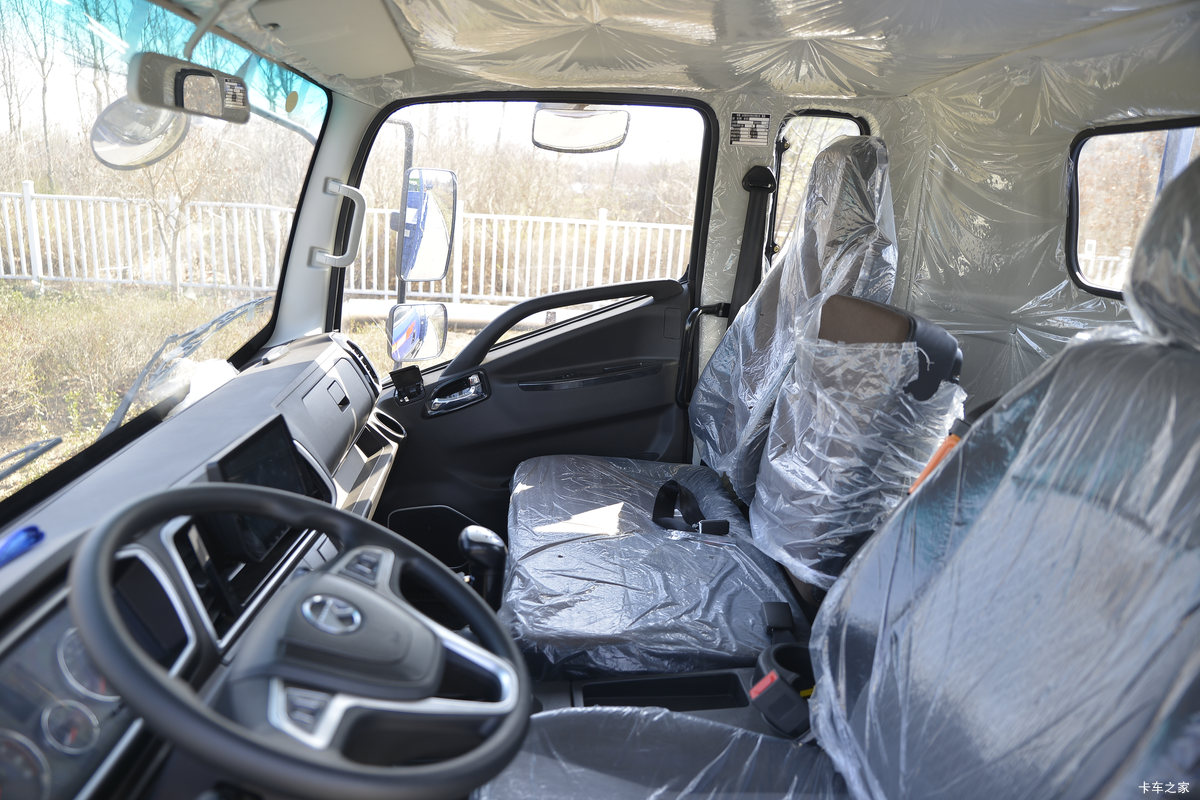

M6-5.3m-1.jpgM6-细节图1.jpgM6-细节图2.jpgM6-细节图3.jpgDM_20260610162651_001.jpgDM_20260610162651_002.jpgDM_20260610162651_003.jpgDM_20260610162731_012.jpgDM_20260610162731_006.jpgDM_20260610162731_007.jpg

Basic Information
Model number announced: KMC1162A420P6 type: cargo trucks
Drive type: 4X2 Wheelbase: 4200mm
Container length level: 5.3 meters engine: Weichai WP4.1NQ190E61
Transmission: Fast 8-speed Vehicle length: 7.58 meters
Vehicle width: 2.55 meters Vehicle height: 2.7 meters
Front track: 1825mm Rear track: 1740mm
Total vehicle weight: 5.36 tons Rated load: 9.995 tons
Total mass: 15.55 tons Maximum speed: 89km/h
Place of origin: Shouguang, Shandong Tonnage class: medium-sized truck
Driver's license: A1, A2, B2 Approach angle: 22 degrees
Departure angle: 14 degrees Market Segmentation: Less-than-truckload (LTL) shipping
Front/Rear Suspension: 1.29/2.09 meters Version: Premium Edition
Energy type: diesel fuel
Engine parameters
Engine brand: Weichai Engine model: Weichai WP4.1NQ190E61
Engine information: Weichai WP4 Number of cylinders: 4-cylinder
Fuel type: diesel fuel Cylinder arrangement: series
Displacement: 4.088L Emission standards: National VI
Maximum output power: 140kW Maximum horsepower: 190 horsepower
Maximum torque: 680Nm Maximum torque speed: 1300-1900rpm
Rated speed: 2600rpm Engine type: High-voltage common rail, EGR+DOC+DPF+SCR
Transmission parameters
Transmission model: Fast 8-speed Gearbox brand: Fast
Gear shifting method: Manual Forward gear: 8 gears
Number of inverted boxes: 2
Cargo box parameters
Cargo container type: Parapet Cargo box length: 5.33 meters
Cargo box width: 2.45 meters Cargo box height: 0.55 meters
*Internal width of the cargo compartment: 2.450000048
Cab parameters
Passenger capacity: 3 people Number of rows of seats: Half
Chassis parameters
Front axle allowable load: 5380kg Rear axle allowable load: 10170kg
Number of leaf springs: 9/11+8,3/4+3
tire
Tire specifications: 10R22.5 16PR Number of tires: 6
