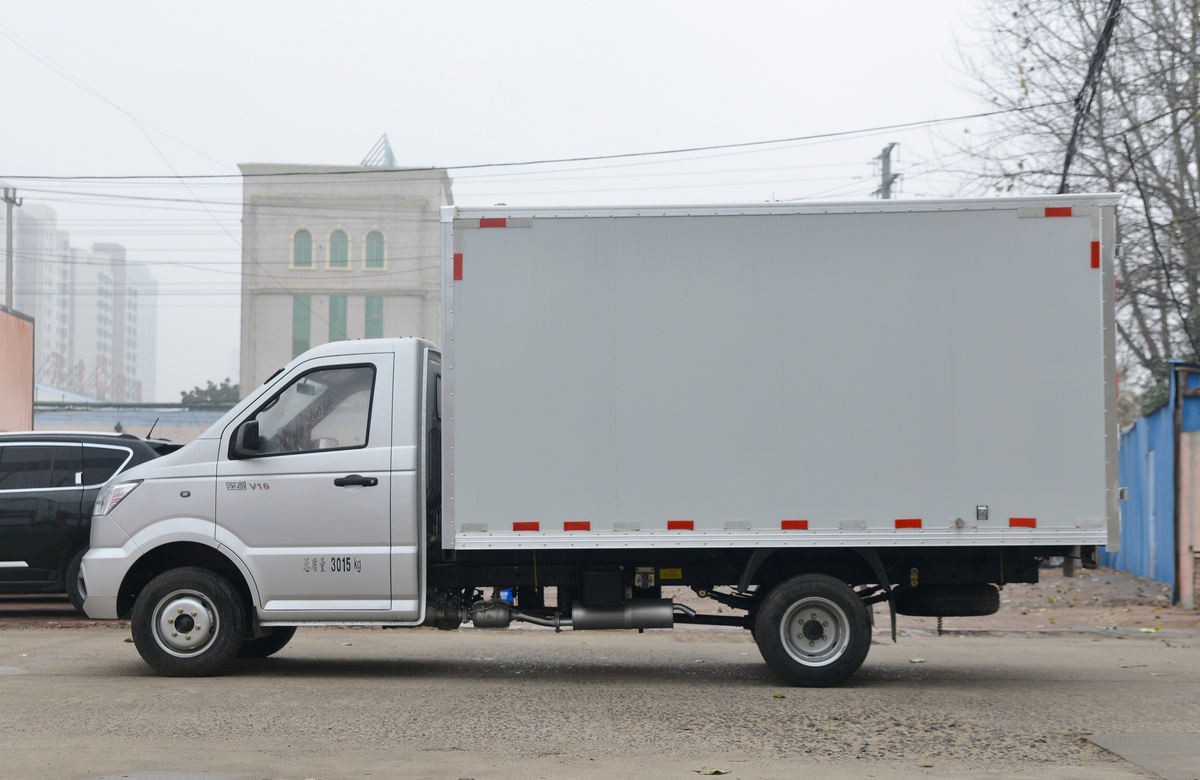

KAMA Mini BOX Truck

Introduction

Introduction

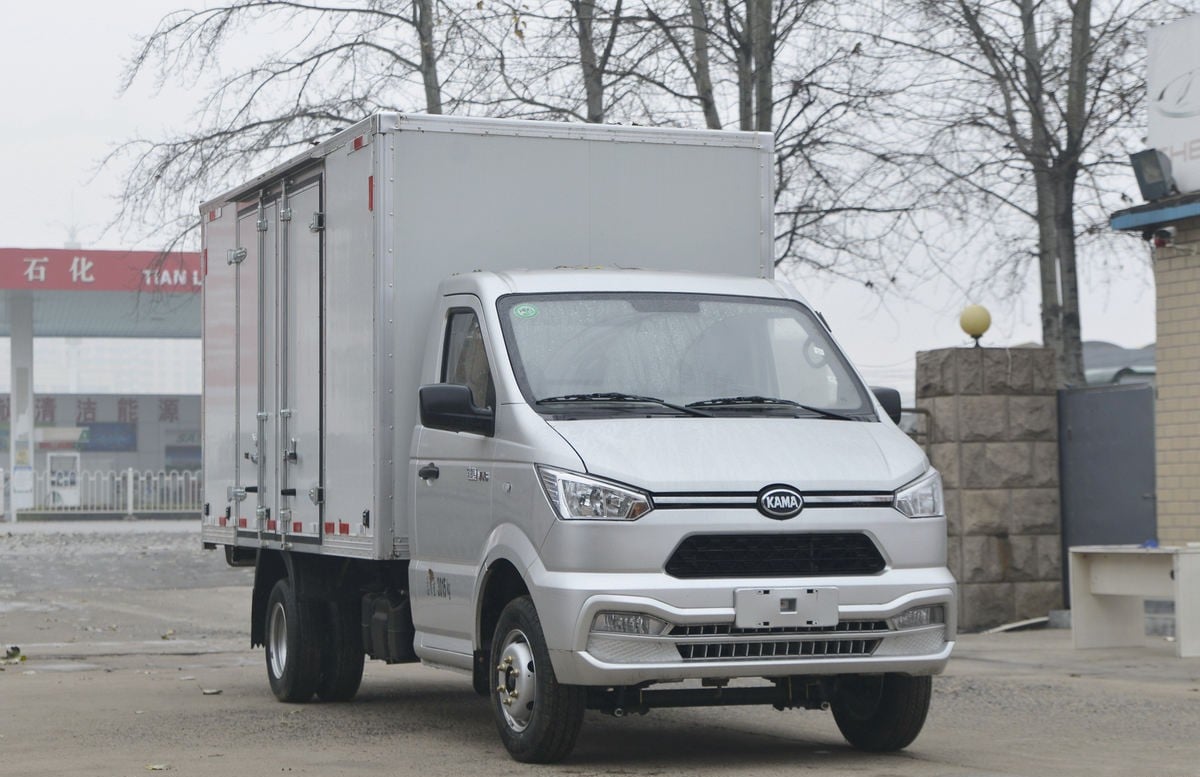

下载 (1).jpg

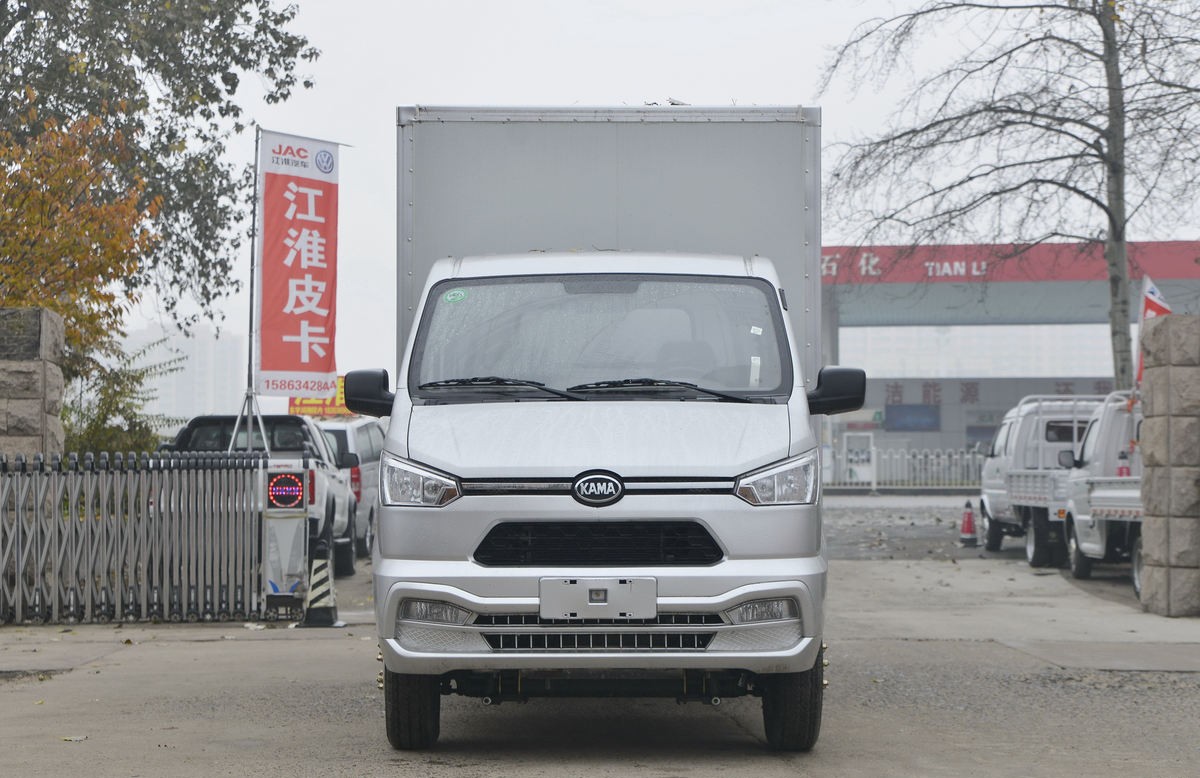

下载 (2).jpg

Basic Information
Model number announced:	KMC5033XXYQ360D6	type:	Box truck
Drive type:	4X2	Wheelbase:	3600mm
Container length level:	3.5 meters	engine:	Dong'an DAM16KR
Transmission:	Dong'an 5th gear	Vehicle length:	5.795 meters
Vehicle width:	1.81 meters	Vehicle height:	2.64 meters
Front track:	1440mm	Rear track:	1400mm
Total vehicle weight:	1.89 tons	Rated load:	0.995 tons
Total mass:	3.015 tons	Maximum speed:	100km/h
Place of origin:	Shouguang, Shandong	Tonnage class:	microcard
Driver's license:	A1, A2, B1, B2, C1	Approach angle:	27 degrees
Departure angle:	20 degrees	Market Segmentation:	City delivery
Remark:	Electronic assistance, ordinary paint	Front/Rear Suspension:	0.75/1.645 meters
*License plate (yellow/blue):	Blue Plate	Energy type:	gasoline
Engine parameters
Engine brand:	Dong'an	Engine model:	Dong'an DAM16KR
Engine information:	Dong'an 1.6L gasoline	Number of cylinders:	4-cylinder
Fuel type:	gasoline	Cylinder arrangement:	series
Displacement:	1.597L	Emission standards:	National VI
Maximum output power:	90kW	Maximum horsepower:	122 horsepower
Transmission parameters
Transmission model:	Dong'an 5th gear	Gearbox brand:	Dong'an
Gear shifting method:	Manual	Forward gear:	5 gears
Number of inverted boxes:	1

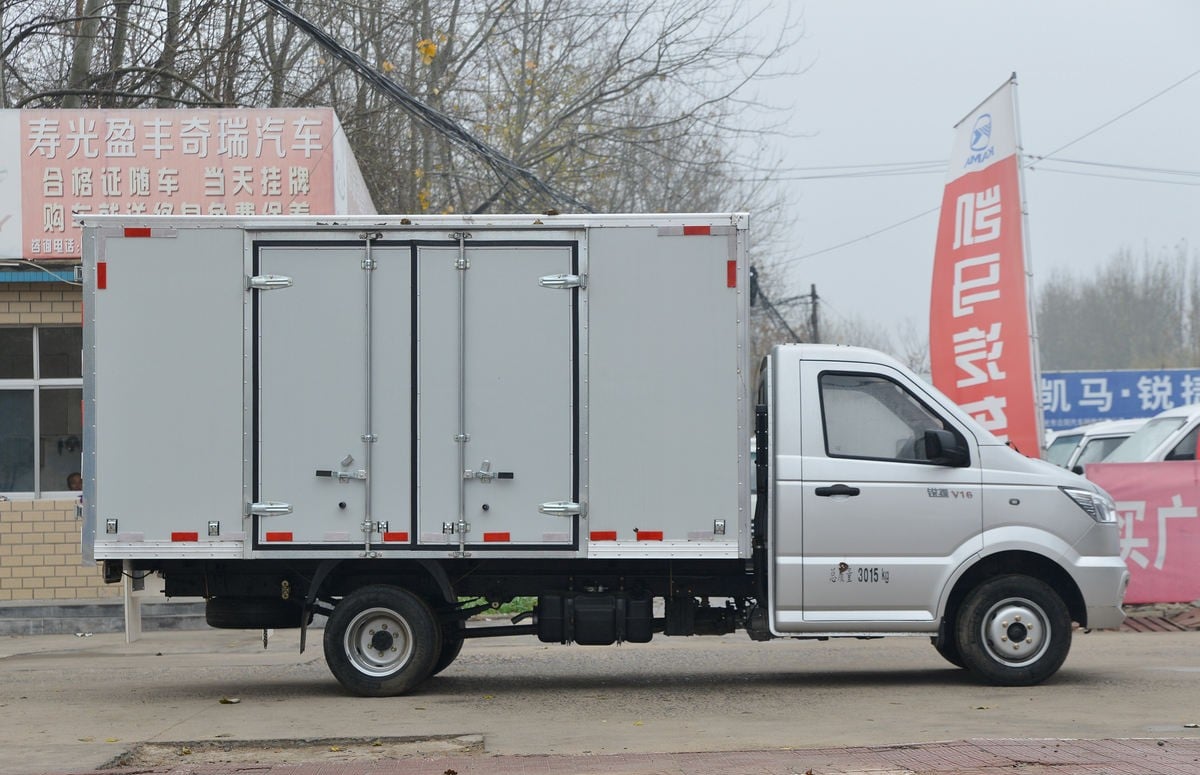

Cargo box parameters
Cargo container type:	Box	Cargo box length:	3.5 meters
Cargo box width:	1.72 meters	Cargo box height:	1.75 meters
* Cargo compartment internal width:	1.720000029

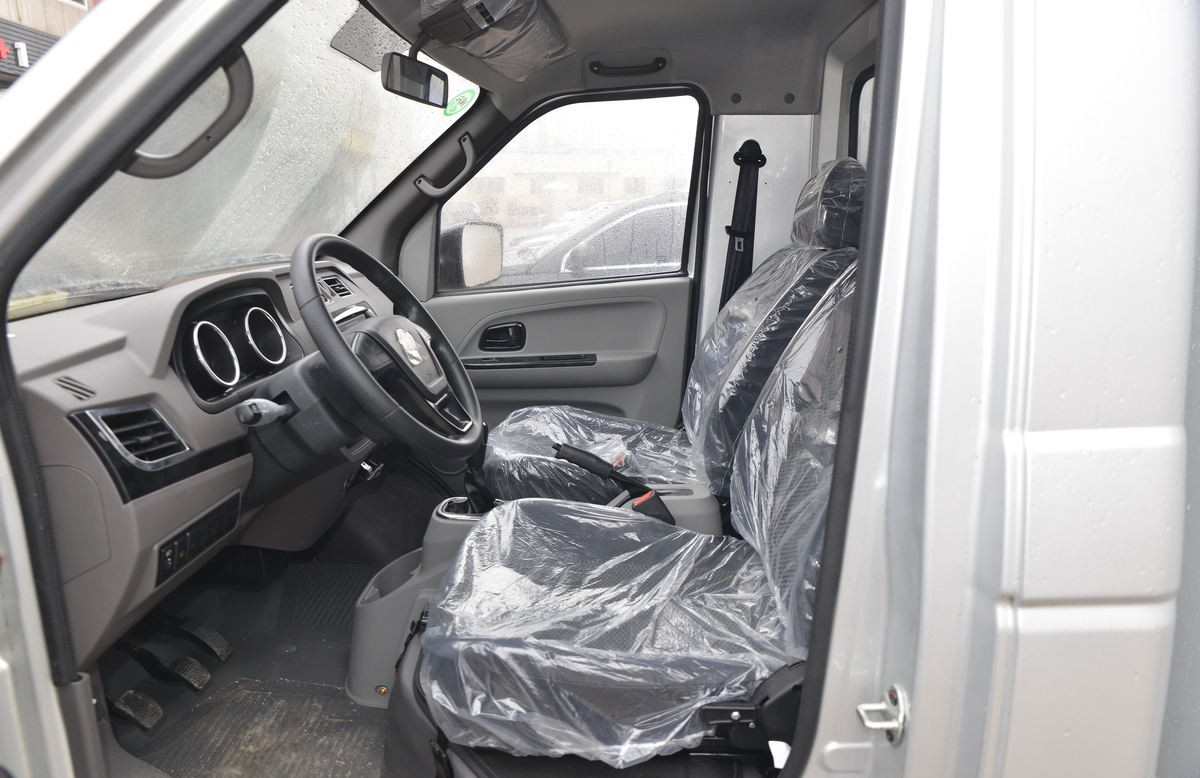

Cab parameters
Cab width:	1715mm	Passenger capacity:	2 people
Number of rows of seats:	single row
Chassis parameters
Front axle description:	212 front axle	Front axle allowable load:	1180kg
Rear axle description:	130 rear axle	Rear axle allowable load:	1835kg
Number of leaf springs:	6/7+4,3/5+3,3/5	Suspension type (front/rear):	Non-suspension
tire
Tire specifications:	185R14LT	Number of tires:	6
*Tire specifications (metric):	185
