| Basic Information | |||
| Model number announced: | KMC5042XXYD336DP6 | type: | Box truck |
| Drive type: | 4X2 | Wheelbase: | 3360mm |
| Container length level: | 4.2 meters | engine: | Xichai CA4DB1-13E6 |
| Transmission: | 5-speed gearbox | Vehicle length: | 5.995 meters |
| Vehicle width: | 2.2 meters | Vehicle height: | 3.14 meters |
| Front track: | 1570mm | Rear track: | 1590mm |
| Total vehicle weight: | 2.805 tons | Rated load: | 1.495 tons |
| Total mass: | 4.495 tons | Maximum speed: | 100km/h |
| Place of origin: | Shouguang, Shandong | Tonnage class: | light truck |
| Driver's license: | A1, A2, B1, B2, C1 | Approach angle: | 19 degrees |
| Departure angle: | 17 degrees | Market Segmentation: | Transportation of building materials and agricultural products |
| Remark: | Startup Edition | Front/Rear Suspension: | 1.125/1.51 meters |
| Version: | Startup Edition | *License plate (yellow/blue): | Blue Plate |
| Energy type: | diesel fuel | ||
| Engine parameters | |||
| Engine brand: | Xichai | Engine model: | Xichai CA4DB1-13E6 |
| Engine information: | Xichai 4DB | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.2L | Emission standards: | National VI |
| Maximum output power: | 95kW | Maximum horsepower: | 130 horsepower |
| Maximum torque: | 350Nm | Maximum torque speed: | 1600-2400rpm |
| Rated speed: | 3200rpm | Engine type: | Inline 4-cylinder, four-stroke, water-cooled, turbocharged and intercooled, BOSCH 1800BAR common rail system, EGR, DOC, DPF |
| Transmission parameters | |||
| Transmission model: | 5-speed gearbox | Gear shifting method: | Manual |
| Forward gear: | 5 gears | Number of inverted boxes: | 1 |
| Cargo box parameters | |||
| Cargo container type: | Box | Cargo box length: | 4.16 meters |
| Cargo box width: | 2.1 meters | Cargo box height: | 2.1 meters |
| *Internal width of the cargo compartment: | 2.099999905 | ||

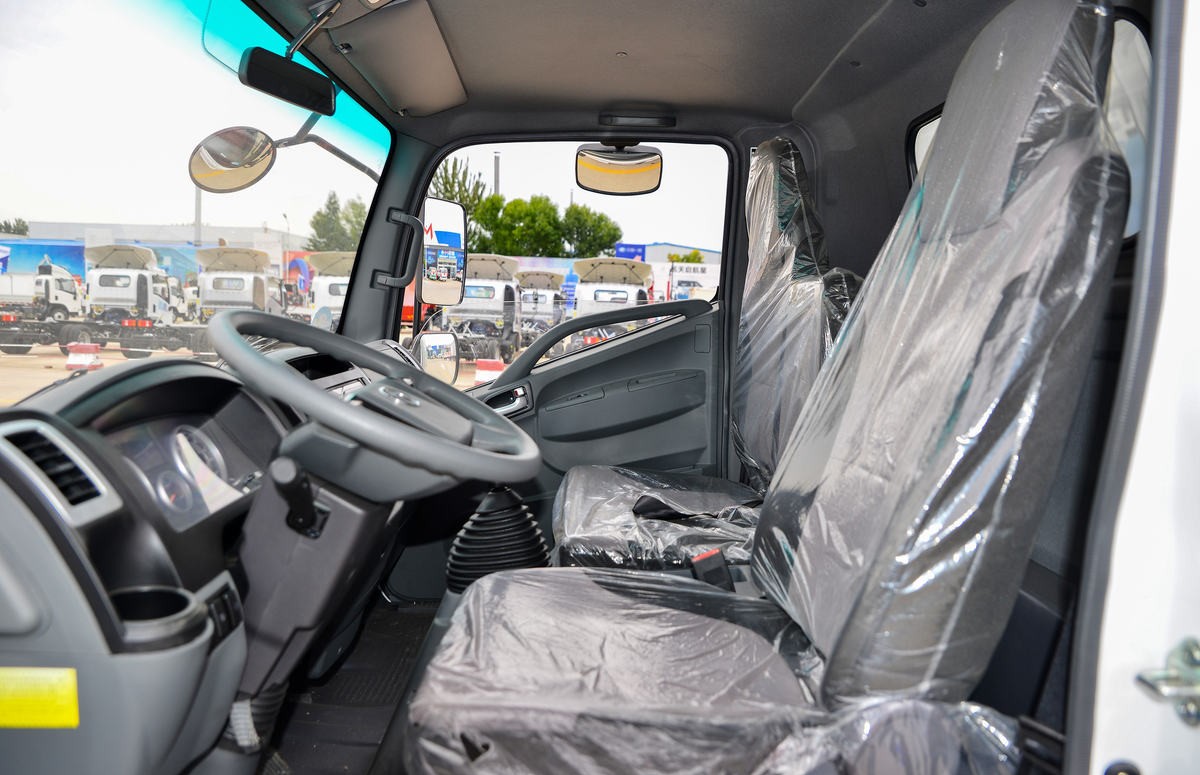

| Cab parameters | |||
| Passenger capacity: | 3 people | Number of rows of seats: | single row |
| fuel tank | |||
| Fuel tank material: | aluminum alloy | ||
| Chassis parameters | |||
| Front axle allowable load: | 1860kg | Rear axle description: | 1064 |
| Rear axle allowable load: | 2635kg | Number of leaf springs: | 3/5+3 |
| tire | |||
| Tire specifications: | 7.00R16LT 8PR | Number of tires: | 6 |
| *Tire specifications (metric): | 7 | ||
