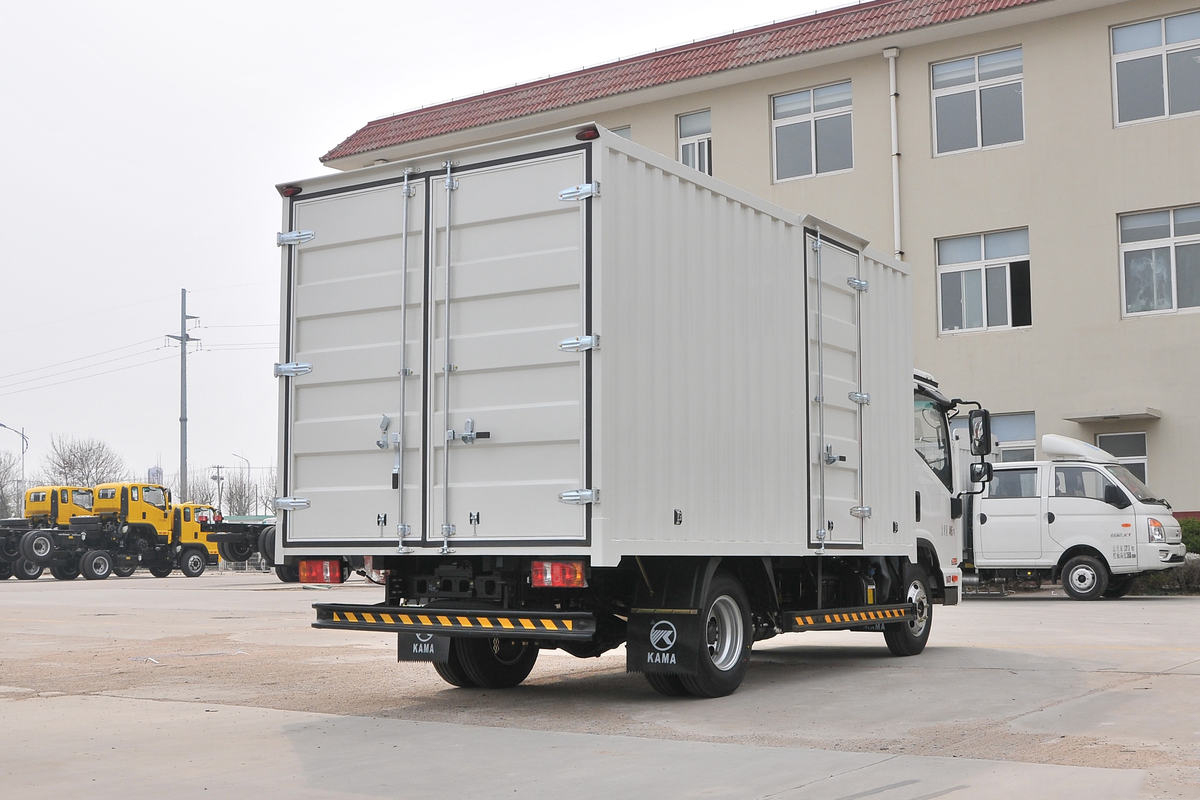

| Basic Information | |||
| Model number announced: | KMC5042XXYA336DP6 | type: | Box truck |
| Drive type: | 4X2 | Wheelbase: | 3360mm |
| Container length level: | 4.2 meters | engine: | Weichai WP2.3NQ130E61 |
| Transmission: | Wanliyang WLY6G40 | Rear axle ratio: | 4.333 |
| Vehicle length: | 5.995 meters | Vehicle width: | 2.21/2.4 meters |
| Vehicle height: | 3.14/3.34 meters | Front track: | 1570mm |
| Rear track: | 1590mm | Total vehicle weight: | 2.805 tons |
| Rated load: | 1.495 tons | Total mass: | 4.495 tons |
| Maximum speed: | 100km/h | Place of origin: | Shouguang, Shandong |
| Tonnage class: | light truck | Driver's license: | A1, A2, B1, B2, C1 |
| Approach angle: | 19 degrees | Departure angle: | 17 degrees |
| Market Segmentation: | City delivery | Front/Rear Suspension: | 1.125/1.51 meters |
| Energy type: | diesel fuel | ||
| Engine parameters | |||
| Engine brand: | Weichai | Engine model: | Weichai WP2.3NQ130E61 |
| Engine information: | WP2.3N series | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.29L | Emission standards: | National VI |
| Maximum output power: | 96kW | Maximum horsepower: | 130 horsepower |
| Maximum torque: | 380Nm | Maximum torque speed: | 1600-2400rpm |
| Rated speed: | 3200rpm | Engine type: | Four valves, high-pressure common rail, turbocharged intercooler |
| Transmission parameters | |||
| Transmission model: | Wanliyang WLY6G40 | Gearbox brand: | Wanliyang |
| Gear shifting method: | Manual | Forward gear: | 6 gears |
| Number of inverted boxes: | 1 | ||

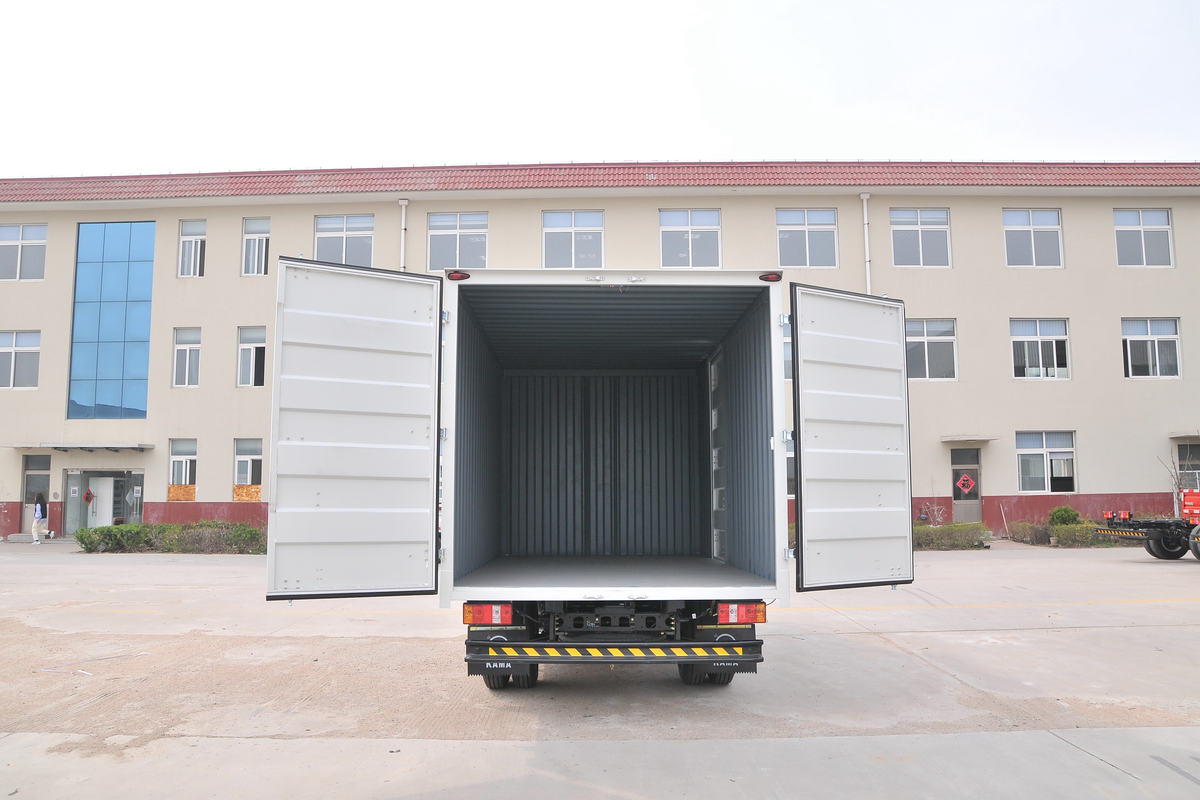

| Cargo box parameters | |||
| Cargo container type: | Box | Cargo box length: | 4.16 meters |
| Cargo box width: | 2.3 meters | Cargo box height: | 2.3 meters |
| *Internal width of the cargo compartment: | 2.299999952 | ||

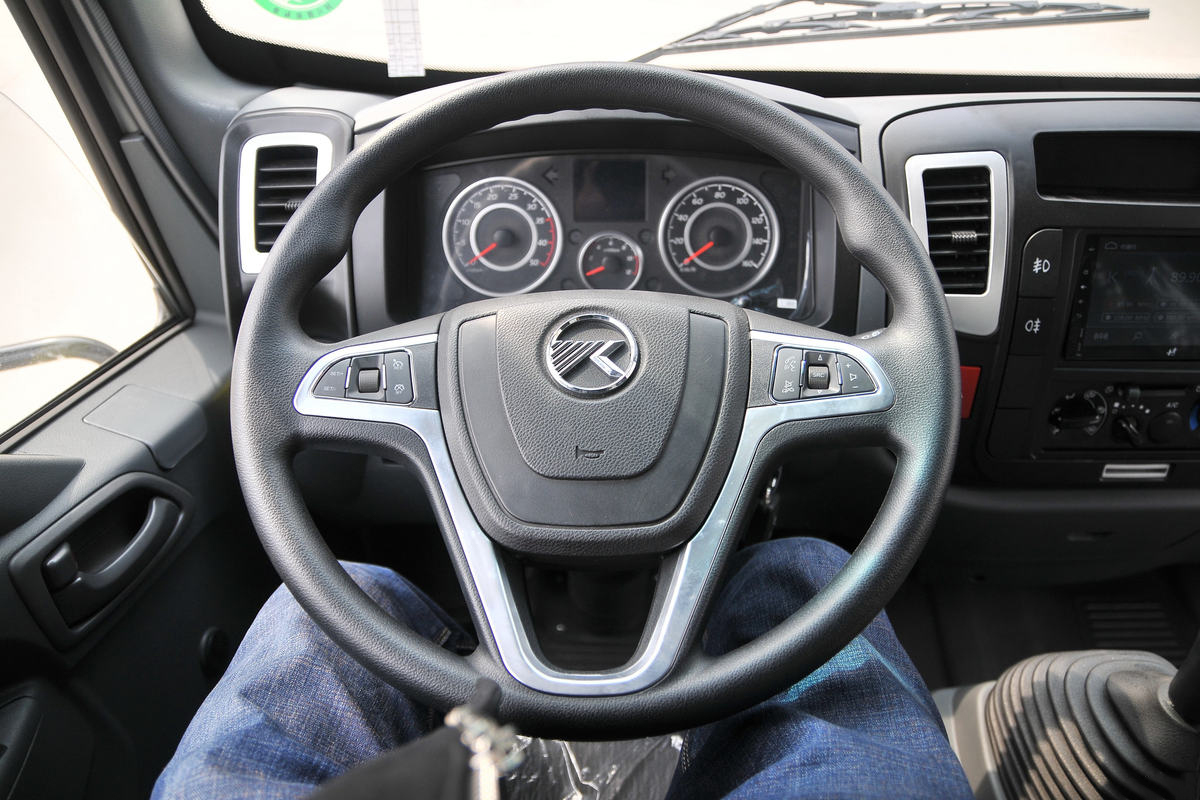

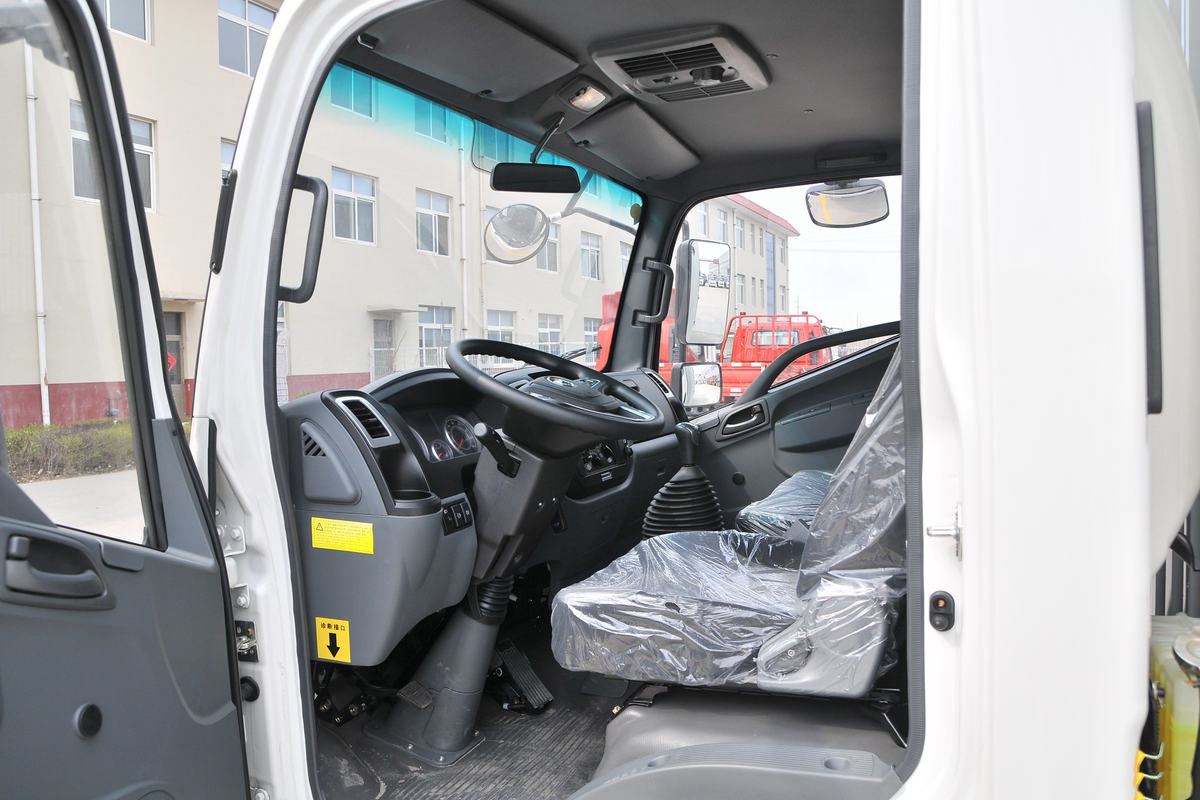

| Cab parameters | |||
| Passenger capacity: | 3 people | Number of rows of seats: | single row |
| Chassis parameters | |||
| Front axle description: | 1064AQSM | Front axle allowable load: | 1860kg |
| Rear axle description: | 1064AQDSM | Rear axle allowable load: | 2635kg |
| Speed atio: | 4.333 | Number of leaf springs: | 3/5+3 |
| tire | |||
| Tire specifications: | 7.00R16LT 8PR | Number of tires: | 6 |
