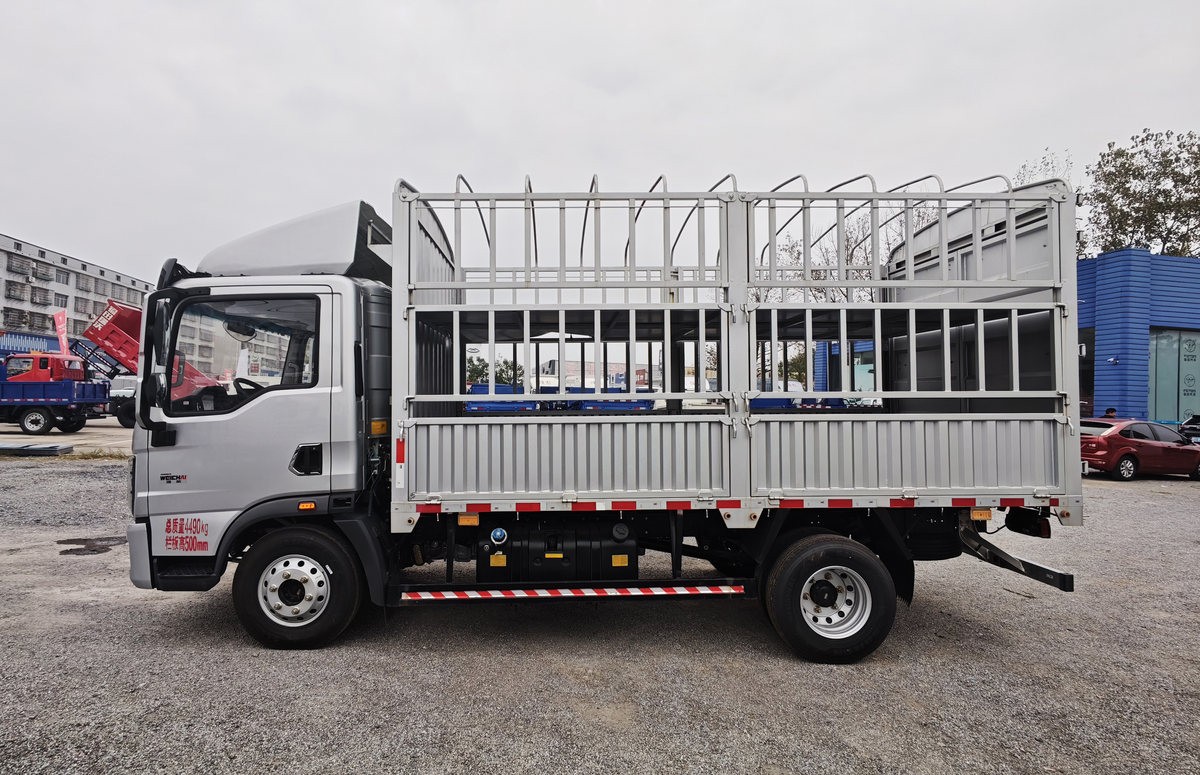

| Basic Information | |||
| Model number announced: | ZZ5047CCYF3319F145 | type: | Cargo truck |
| Drive type: | 4X2 | Wheelbase: | 3300mm |
| Container length level: | 4.2 meters | engine: | Weichai WP2.5NQ180E62 |
| Transmission: | China National Heavy Duty Truck Group HW90510C2 | Rear axle ratio: | 4.875 |
| Vehicle length: | 5.995 meters | Vehicle width: | 2.2 meters |
| Vehicle height: | 3.1 meters | Front track: | 1805mm |
| Rear track: | 1645mm | Total vehicle weight: | 2.715 tons |
| Rated load: | 1.585 tons | Total mass: | 4.495 tons |
| Maximum speed: | 95km/h | Place of origin: | Zhangqiu, Shandong |
| Tonnage class: | light truck | Driver's license: | A1, A2, B1, B2, C1 |
| Approach angle: | 19 degrees | Departure angle: | 17 degrees |
| Remark: | Optional features include a 3280mm wheelbase, a 4.333 gear ratio, and a 1900mm wide cab. | Front/Rear Suspension: | 1.135/1.56 meters |
| *License plate (yellow/blue): | Blue Plate | Energy type: | diesel fuel |
| Engine parameters | |||
| Engine brand: | Weichai | Engine model: | Weichai WP2.5NQ180E62 |
| Engine information: | Weichai WP2.5N | Number of cylinders: | 4-cylinder |
| Fuel type: | diesel fuel | Cylinder arrangement: | series |
| Displacement: | 2.493L | Emission standards: | National VI |
| Maximum output power: | 132kW | Maximum horsepower: | 180 horsepower |
| Maximum torque: | 500Nm | Maximum torque speed: | 1400-1800rpm |
| Rated speed: | 2900rpm | ||
| Transmission parameters | |||
| Transmission model: | China National Heavy Duty Truck Group HW90510C2 | Gearbox brand: | China National Heavy Duty Truck Group |
| Gear shifting method: | Manual | Forward gear: | 10 gears |
| Number of archives: | 2 | ||

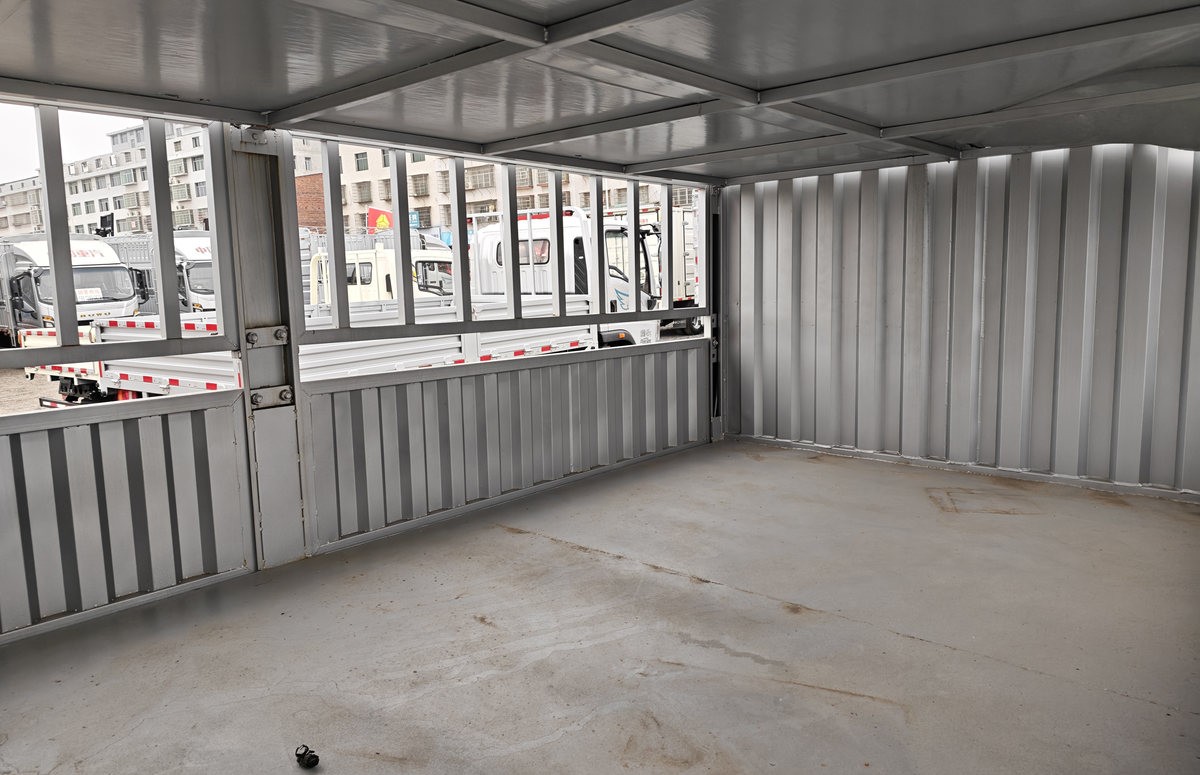

| Cargo box parameters | |||
| Cargo container type: | Silo type | Cargo box length: | 4.15 meters |
| Cargo box width: | 2.1 meters | *Internal width of the cargo compartment: | 2.1 |

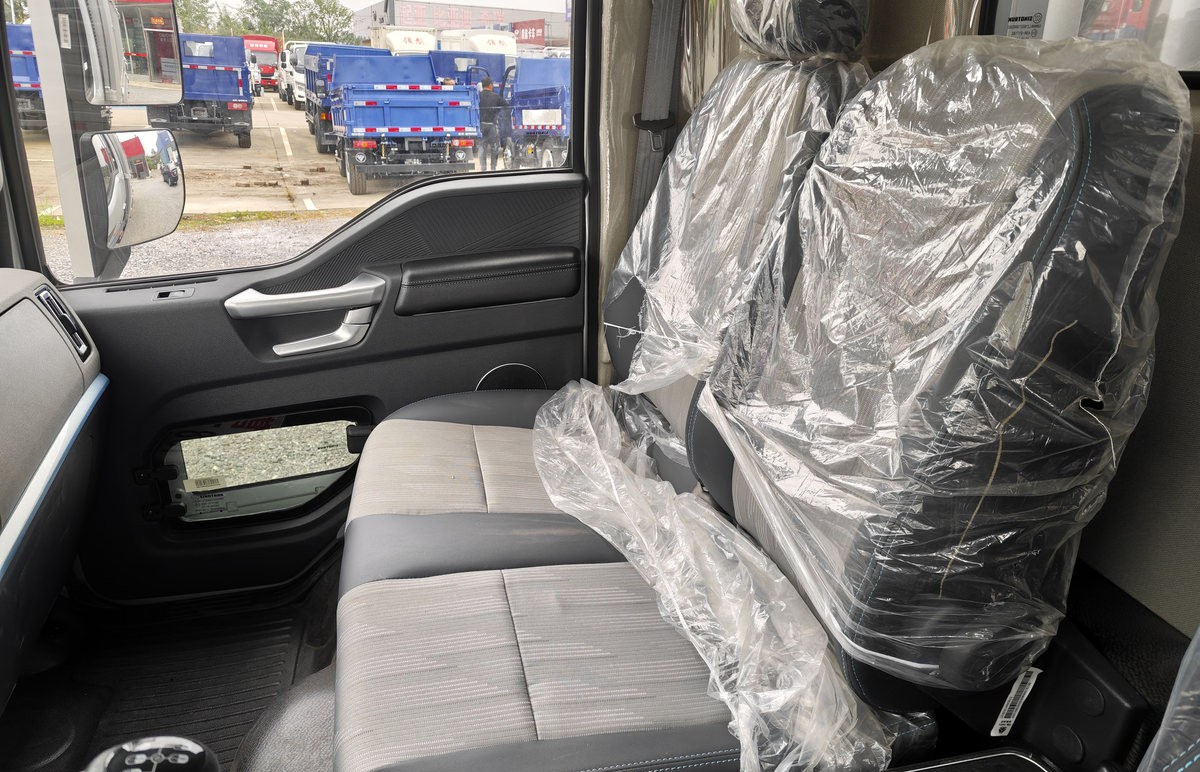

| Cab parameters | |||
| Cab width: | 2100mm | Passenger capacity: | 3 people |
| Number of rows of seats: | single row | ||
| fuel tank | |||
| Fuel tank capacity: | 120L | ||
| Chassis parameters | |||
| Front axle allowable load: | 1790kg | Rear axle description: | 8T rear axle |
| Rear axle allowable load: | 2705kg | Speed atio: | 4.875 |
| Number of leaf springs: | 3/8+6,8/9+6 | Aluminum alloy wheels: | |
| tire | |||
| Tire specifications: | 7.00R16LT 10PR | Number of tires: | 6 |
| *Tire specifications (imperial units): | 7 | ||
