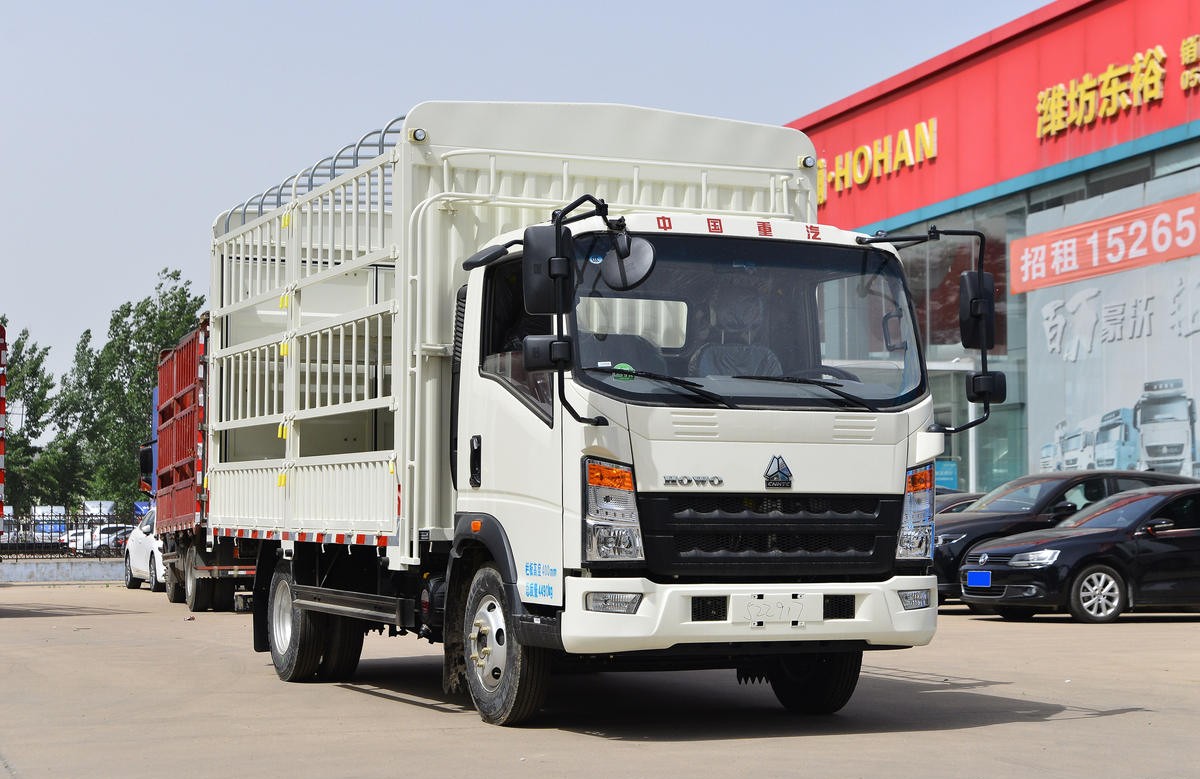

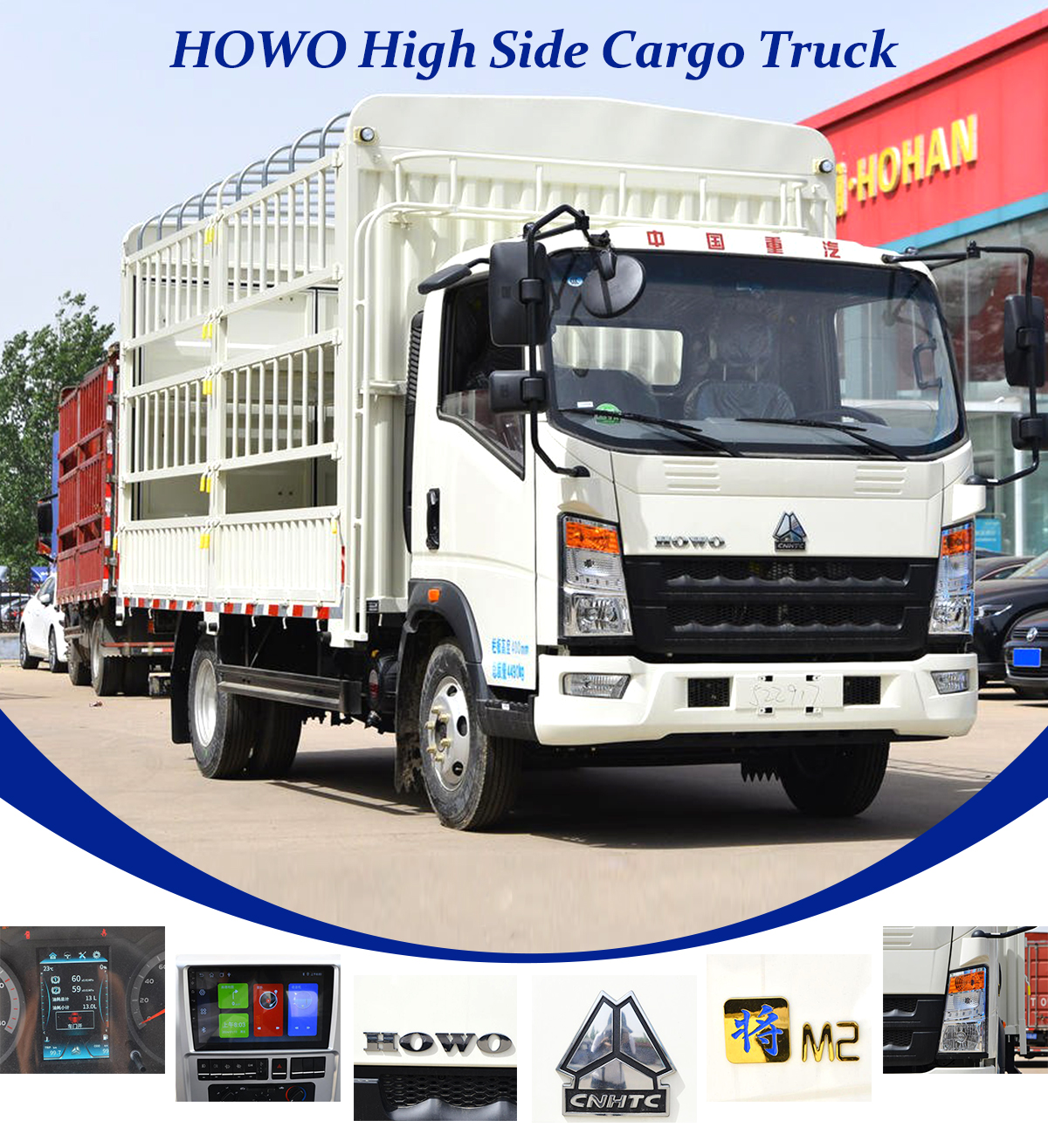

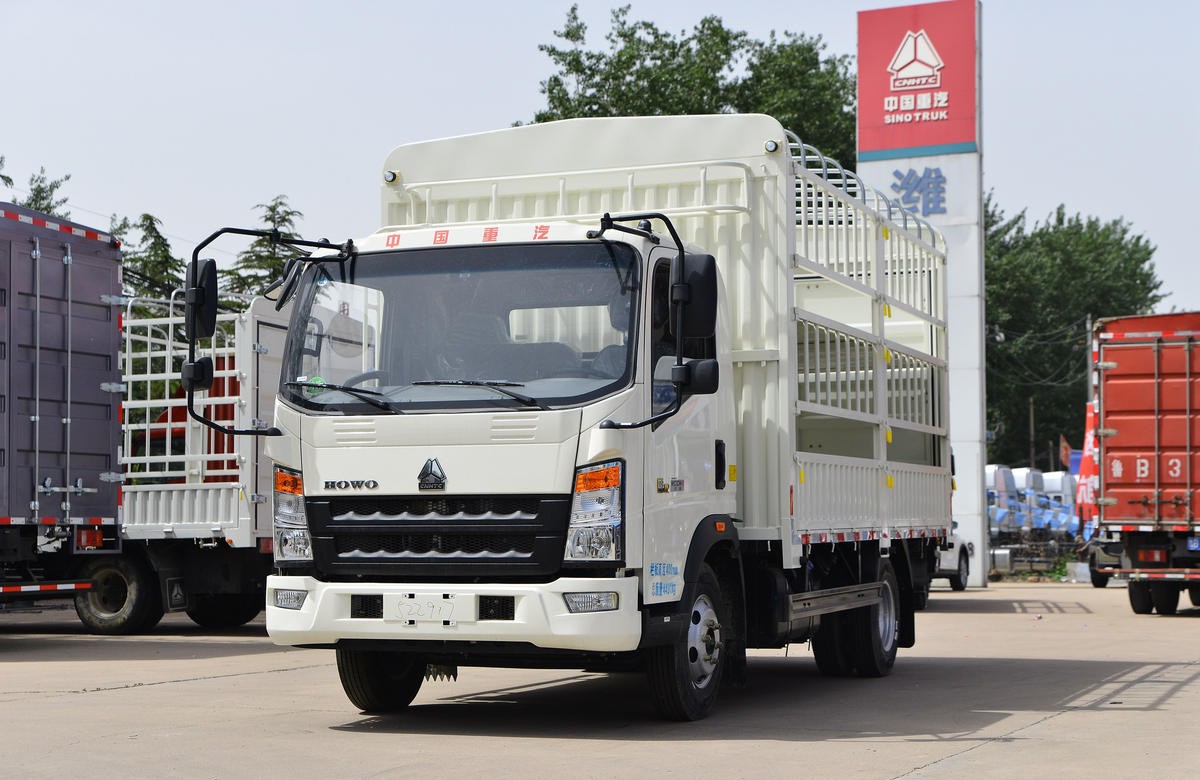

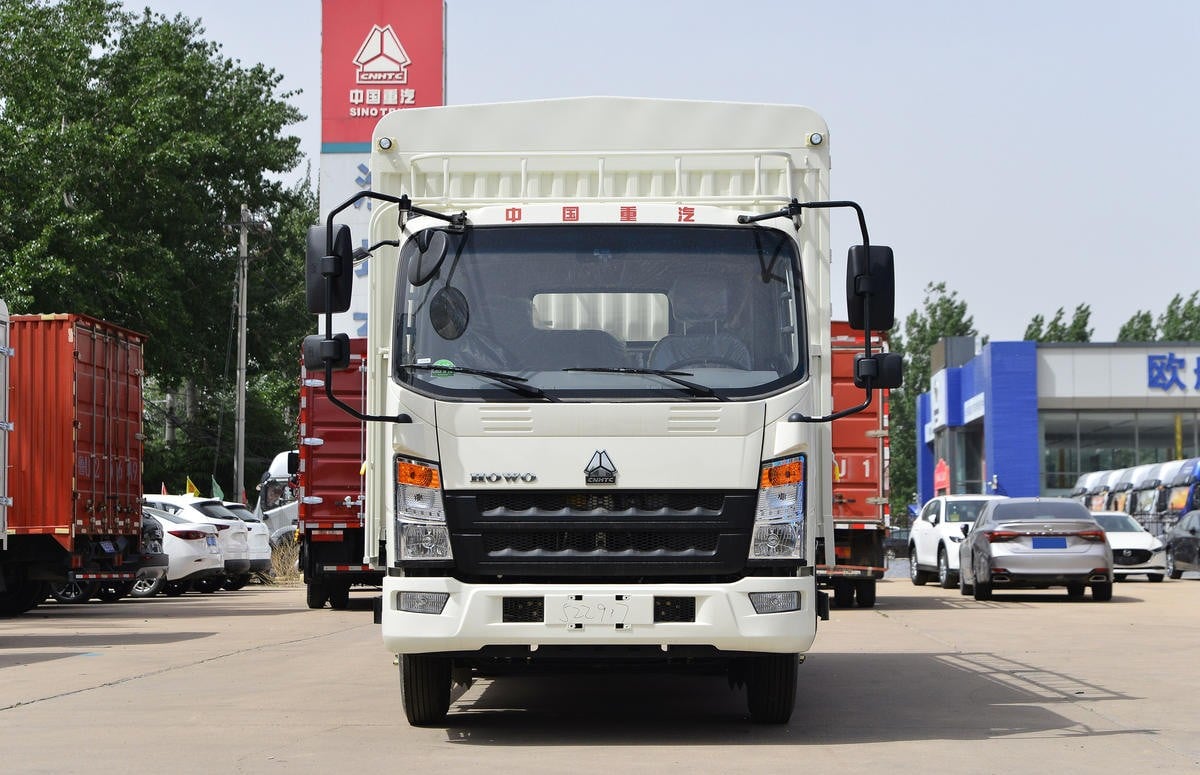

HOWO Stake Light Truck

Introduction

Introduction


Basic Information
Model number announced:	ZZ5047CCYG3215F144B	type:	cargo trucks
Drive type:	4X2	Wheelbase:	3280mm
Container length level:	4.2 meters	engine:	Weichai WP2.3Q140E62
Transmission:	Wanliyang WLY5G32	Rear axle ratio:	4.875
Vehicle length:	5.995 meters	Vehicle width:	2.2 meters
Vehicle height:	2.85 meters	Front track:	1640mm
Rear track:	1645mm	Total vehicle weight:	2.715 tons
Rated load:	1.58 tons	Total mass:	4.49 tons
Maximum speed:	95km/h	Place of origin:	Zhangqiu, Shandong
Tonnage class:	light truck	Driver's license:	A1, A2, B1, B2, C1
Approach angle:	18 degrees	Departure angle:	17 degrees
Remark:	Optional 4.333 speed ratio	Front/Rear Suspension:	1.16/1.555 meters
Energy type:	diesel fuel
Engine parameters
Engine brand:	Weichai	Engine model:	Weichai WP2.3Q140E62
Engine information:	Weichai 2.3L	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	2.289L	Emission standards:	National VI
Maximum output power:	103kW	Maximum horsepower:	140 horsepower
Maximum torque:	320N路m	Maximum torque speed:	1600-2400rpm
Rated speed:	3200rpm	Engine type:	High-pressure common rail
Engine oil change interval:	50,000 kilometers
Transmission parameters
Transmission model:	Wanliyang WLY5G32	Gearbox brand:	Wanliyang
Gear shifting method:	Manual	Forward gear:	5 gears
Number of inverted boxes:	1

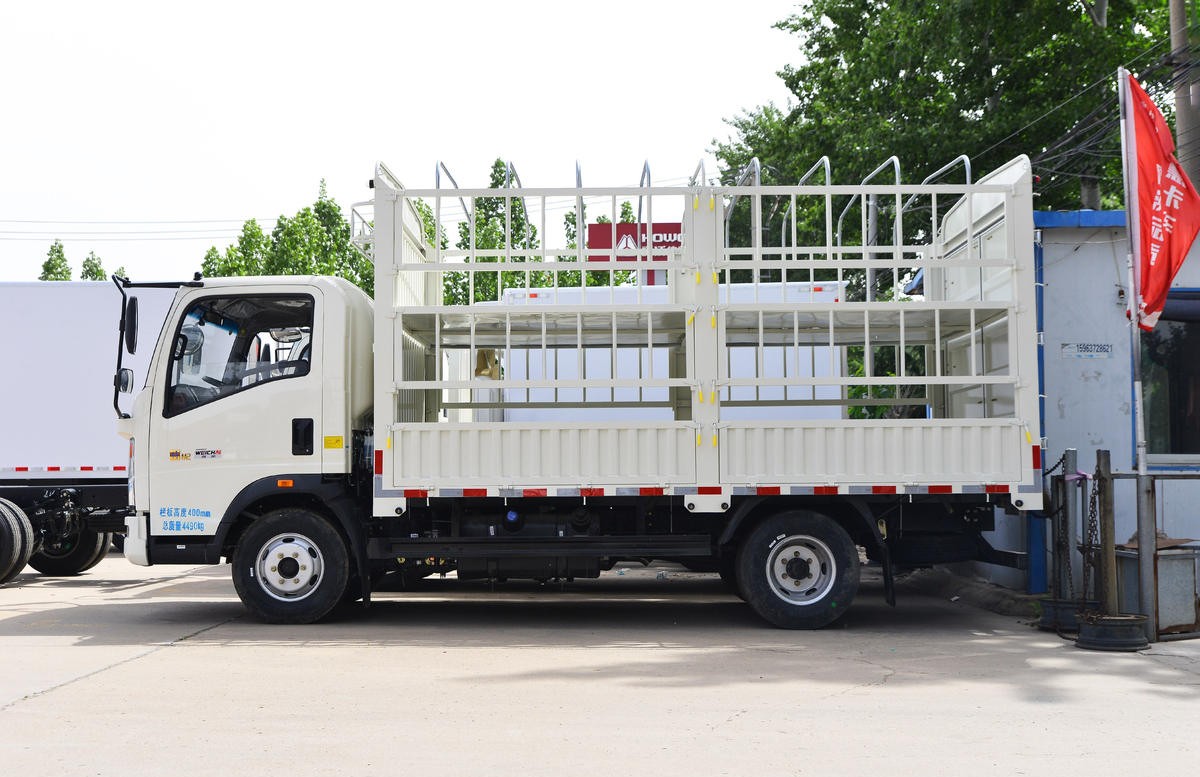

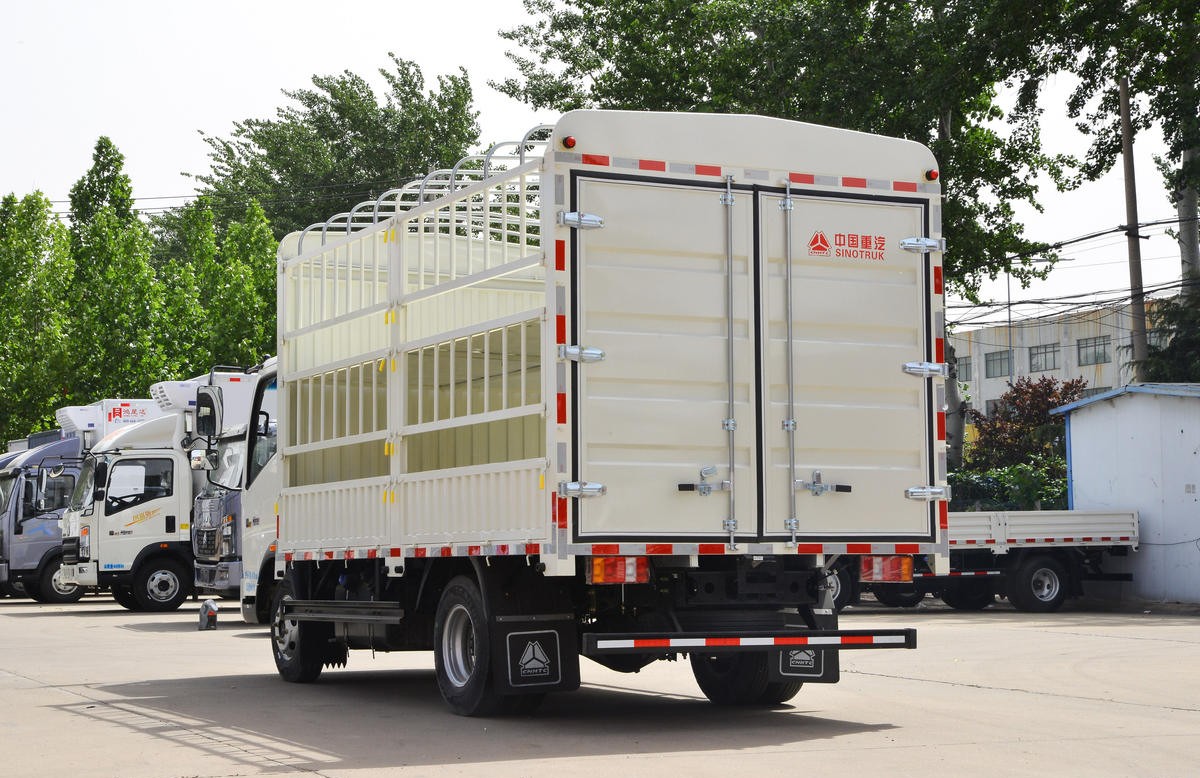

Cargo box parameters
Cargo container type:	Silo type	Cargo box length:	4.15 meters
Cargo box width:	2.1 meters	* Cargo compartment internal width:	2.1

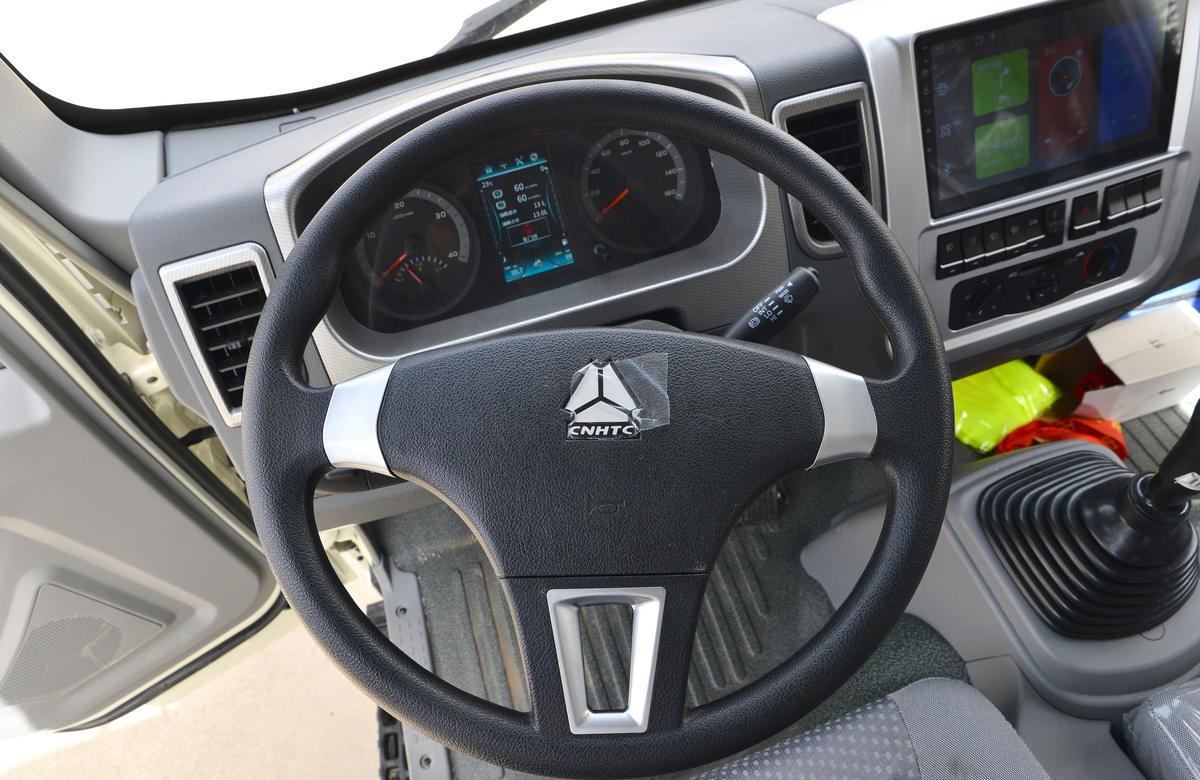

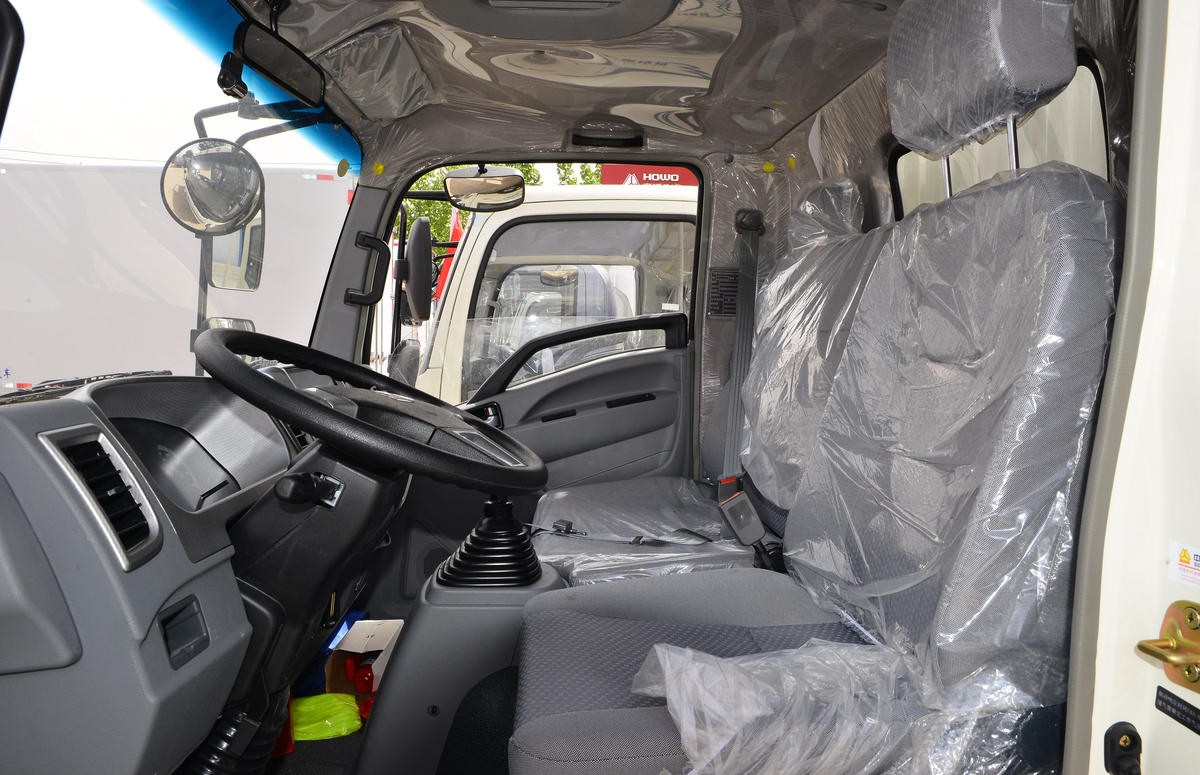

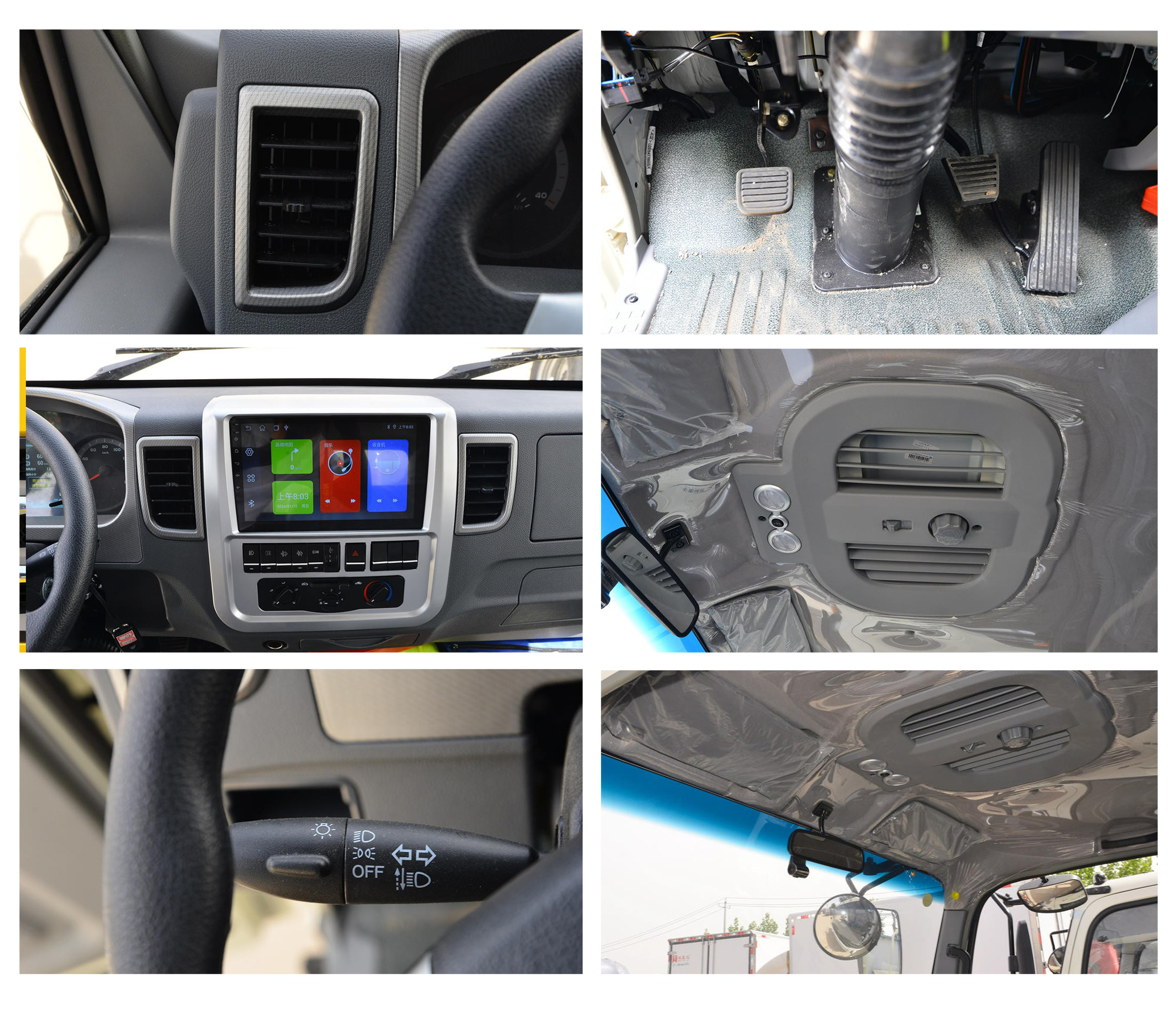

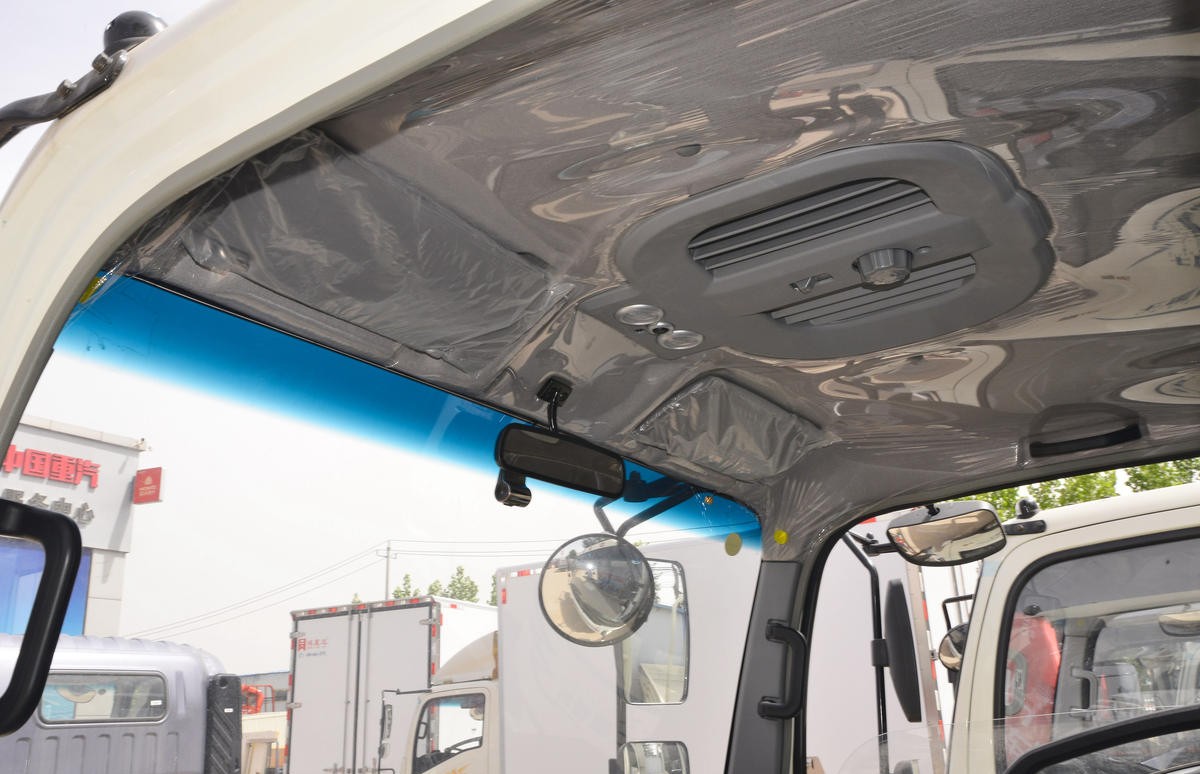

Cab parameters
Cab width:	1760mm	Passenger capacity:	3 people
Number of rows of seats:	single row
Chassis parameters
Front axle allowable load:	1790kg	Rear axle description:	4T rear axle
tire
Tire specifications:	7.00R16LT 10PR	Number of tires:	6
