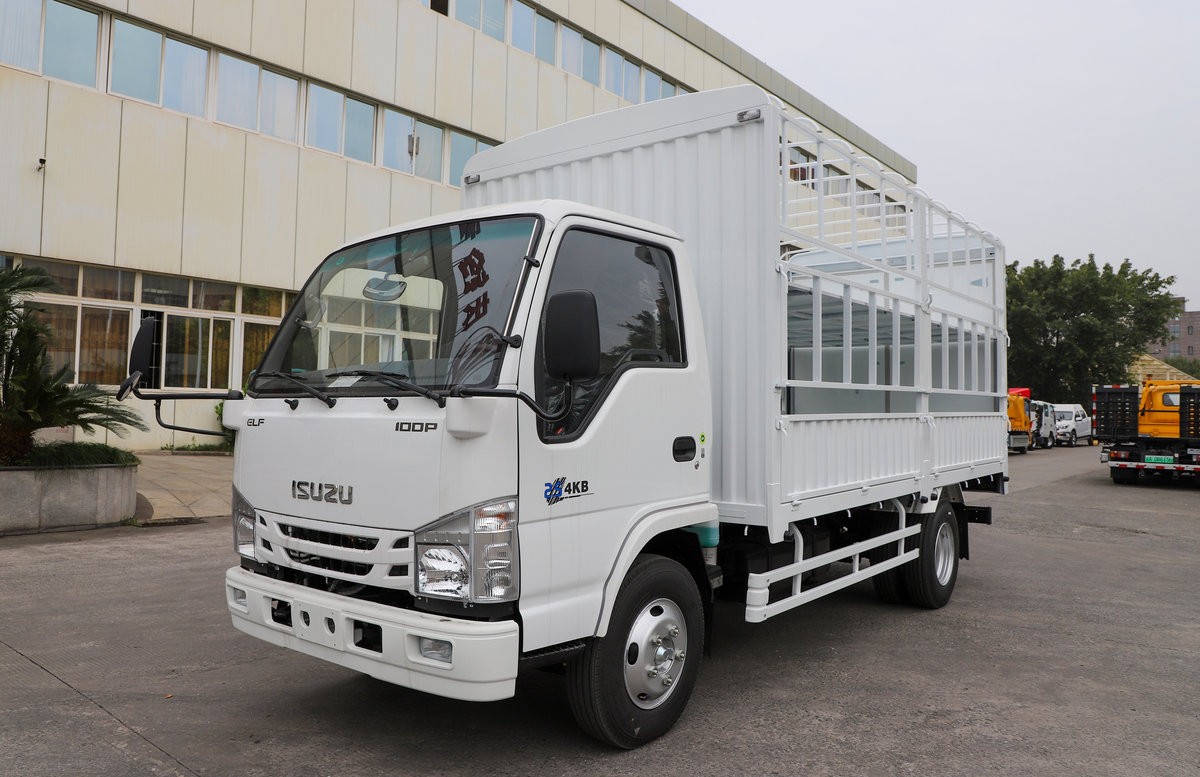

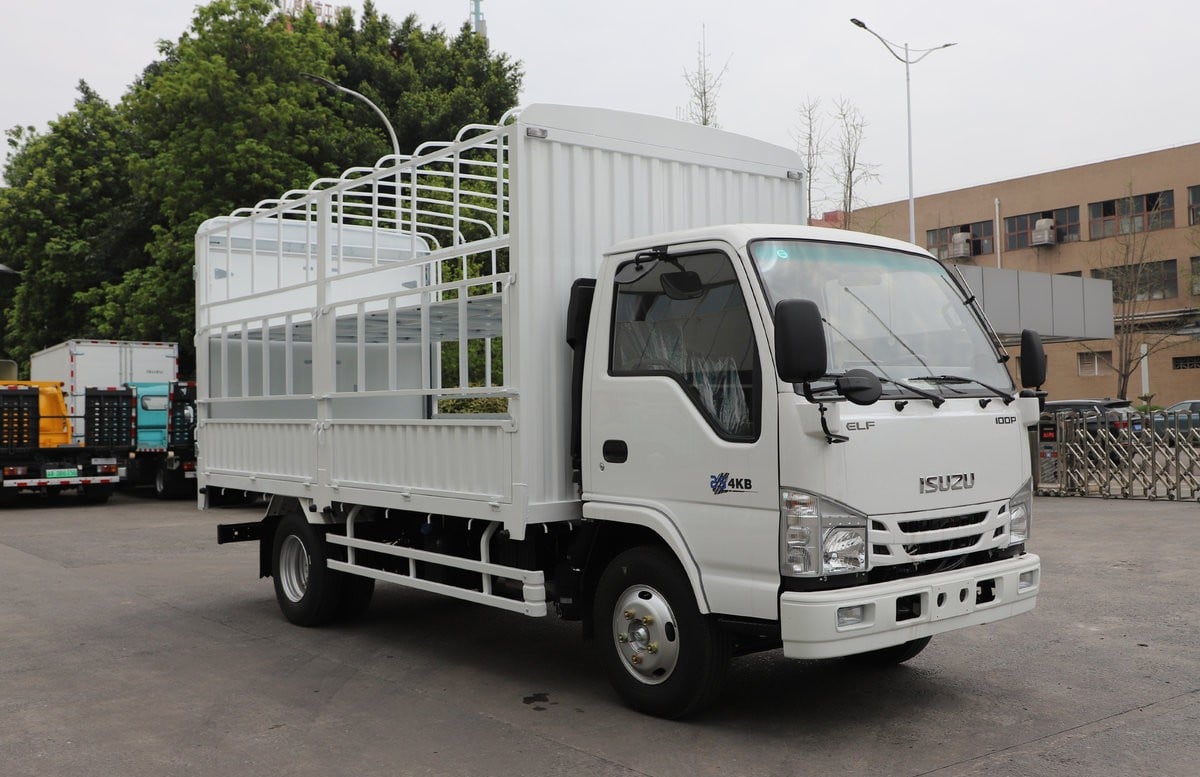

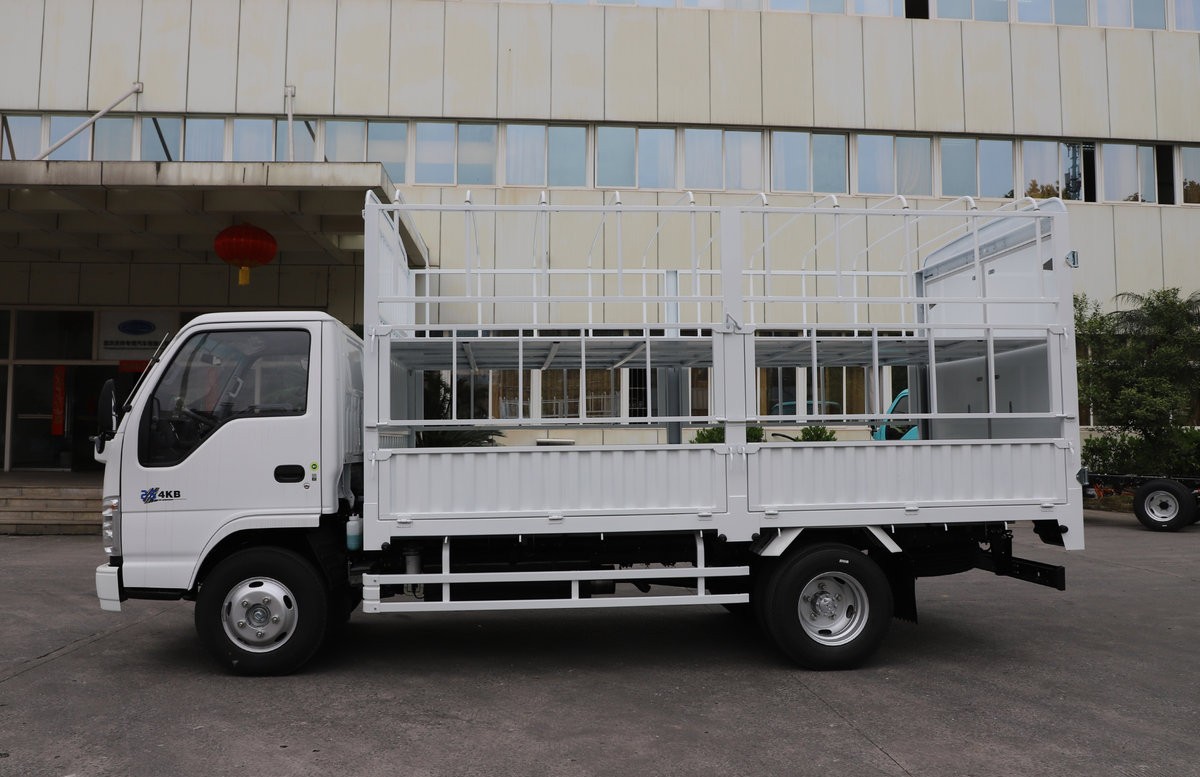

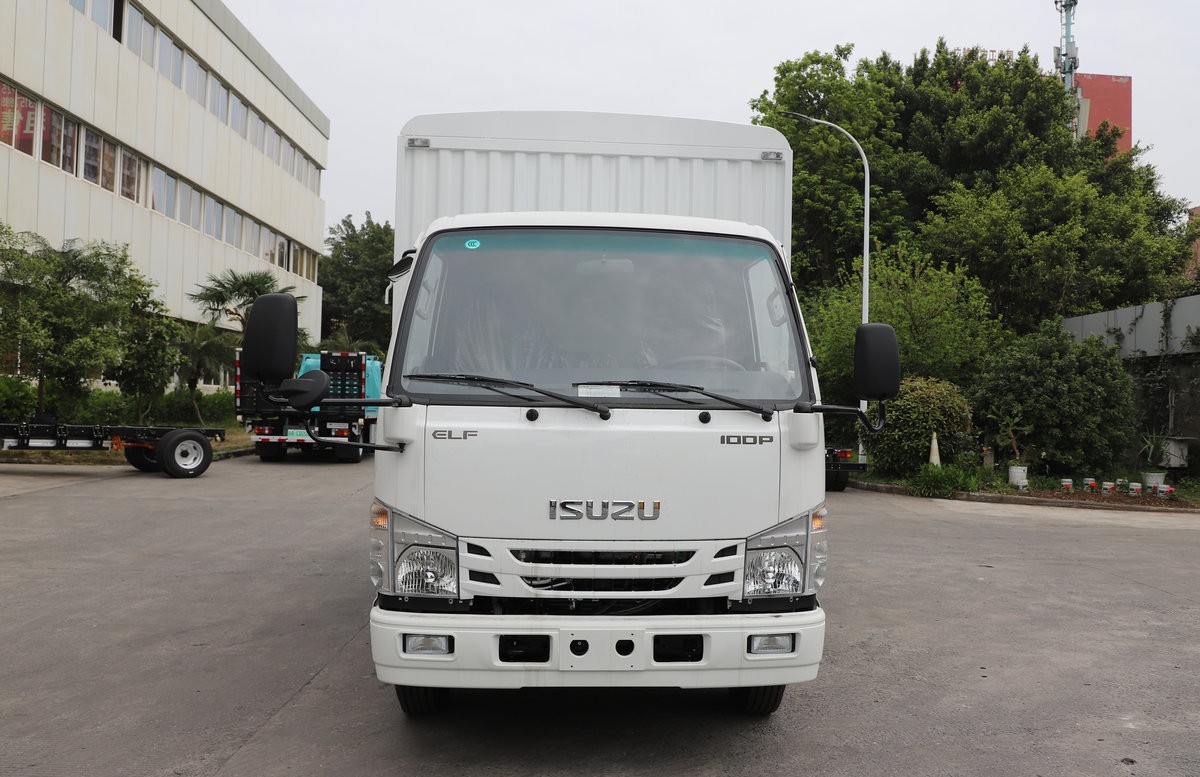

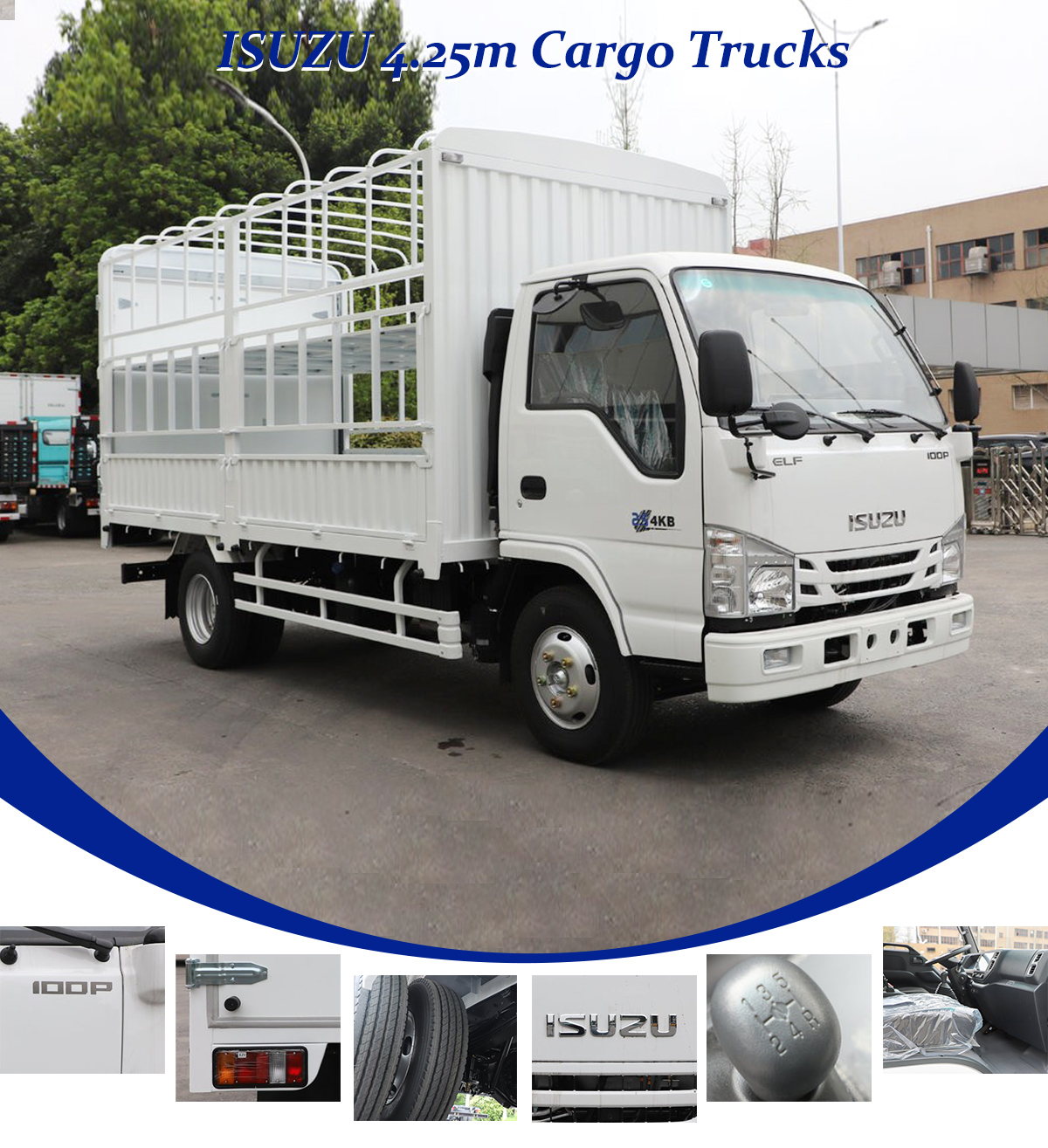

ISUZU 100P Stake Truck, Front & Rear Drum Air Brake Light Lorry for Mountain Heavy Load Freight

ISUZU 100P Stake Truck, Front & Rear Drum Air Brake Light Lorry for Mountain Heavy Load Freight

Introduction

Introduction


Basic Information
Model number announced:	QL5041CCYMVHA	type:	cargo trucks
Drive type:	4X2	Wheelbase:	3360mm
Container length level:	4.3 meters	engine:	Qingling Isuzu 4KB1-TCG60
Transmission:	Isuzu MSB-5MT	Rear axle ratio:	5.571
Vehicle length:	5.995 meters	Vehicle width:	1.98 meters
Vehicle height:	2.96 meters	Front track:	1504mm
Rear track:	1525mm	Total vehicle weight:	2.72 tons
Rated load:	1.64 tons	Total mass:	4.49 tons
Maximum speed:	100km/h	Place of origin:	Jiulongpo District, Chongqing
Tonnage class:	light truck	Driver's license:	A1, A2, B1, B2, C1
Approach angle:	24 degrees	Departure angle:	10 degrees
Front/Rear Suspension:	1.015/1.62 meters	Energy type:	diesel fuel
Engine parameters
Engine brand:	Qingling Isuzu	Engine model:	4KB1-TCG60
Engine information:	Isuzu 2.5L	Number of cylinders:	4-cylinder
Fuel type:	diesel fuel	Cylinder arrangement:	series
Displacement:	2.499L	Emission standards:	National VI
Maximum output power:	96kW	Maximum horsepower:	131 horsepower
Maximum torque speed:	1400-2400rpm
Transmission parameters
Transmission model:	Isuzu MSB-5MT	Gearbox brand:	Isuzu

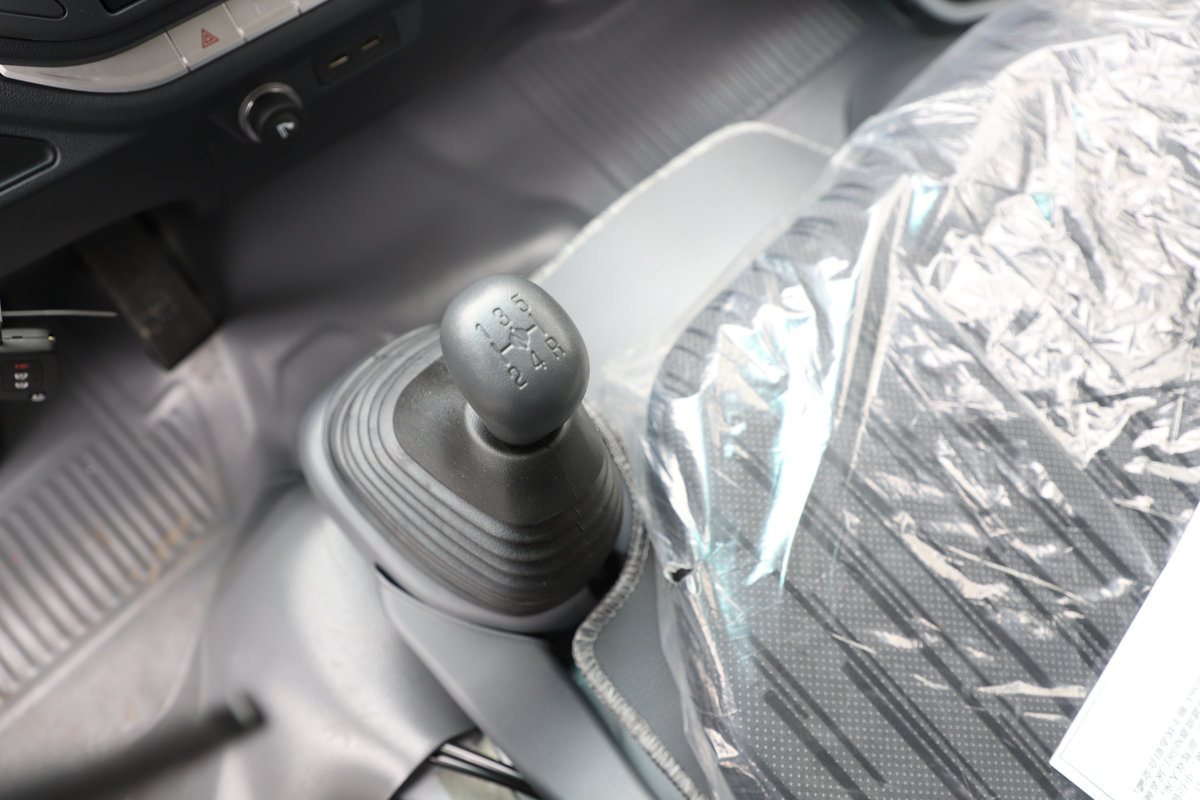

Gear shifting method:	Manual	Forward gear:	5 gears
Number of inverted boxes:	1

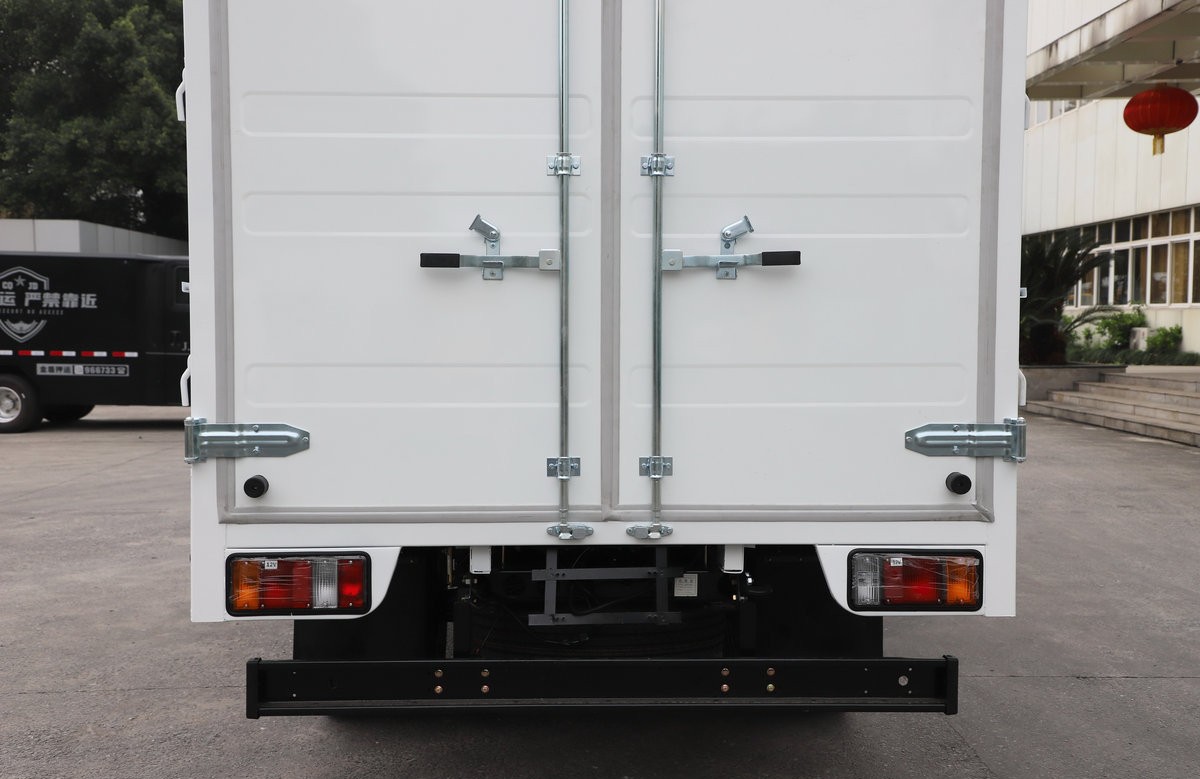

Cargo box parameters
Cargo container type:	Silo	Cargo box length:	4.25 meters
Cargo box width:	1.85 meters

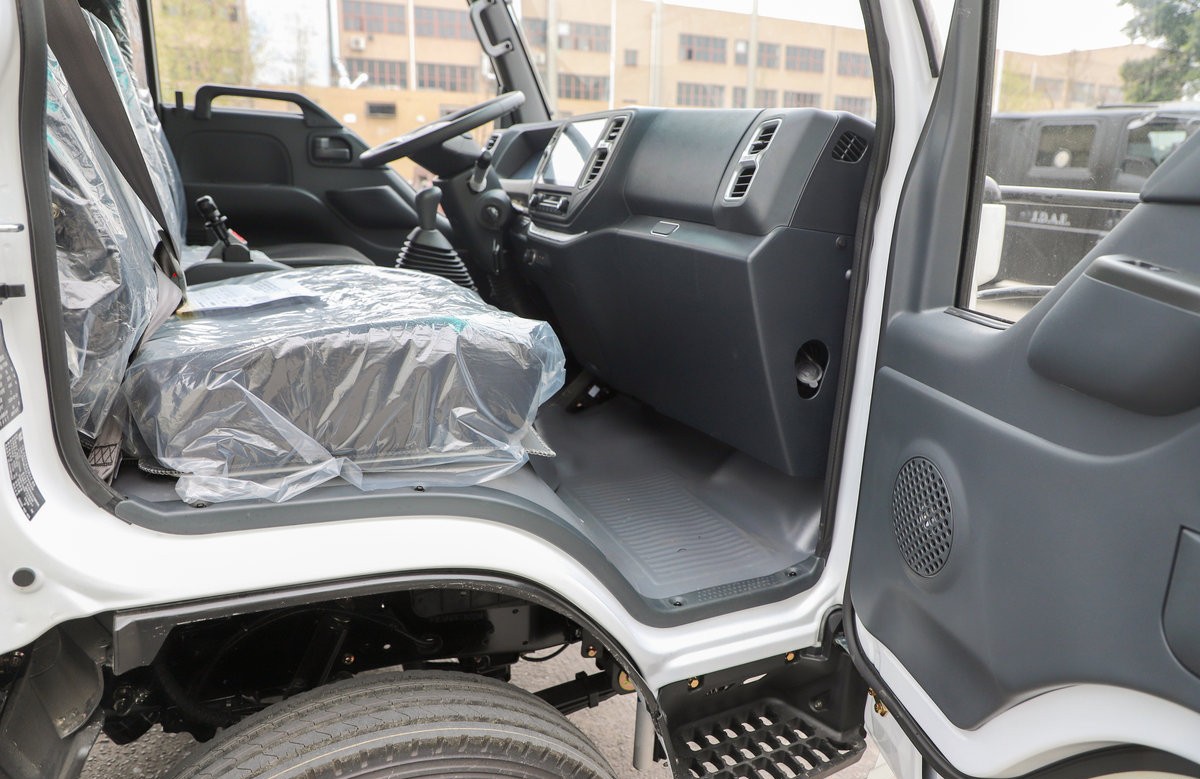

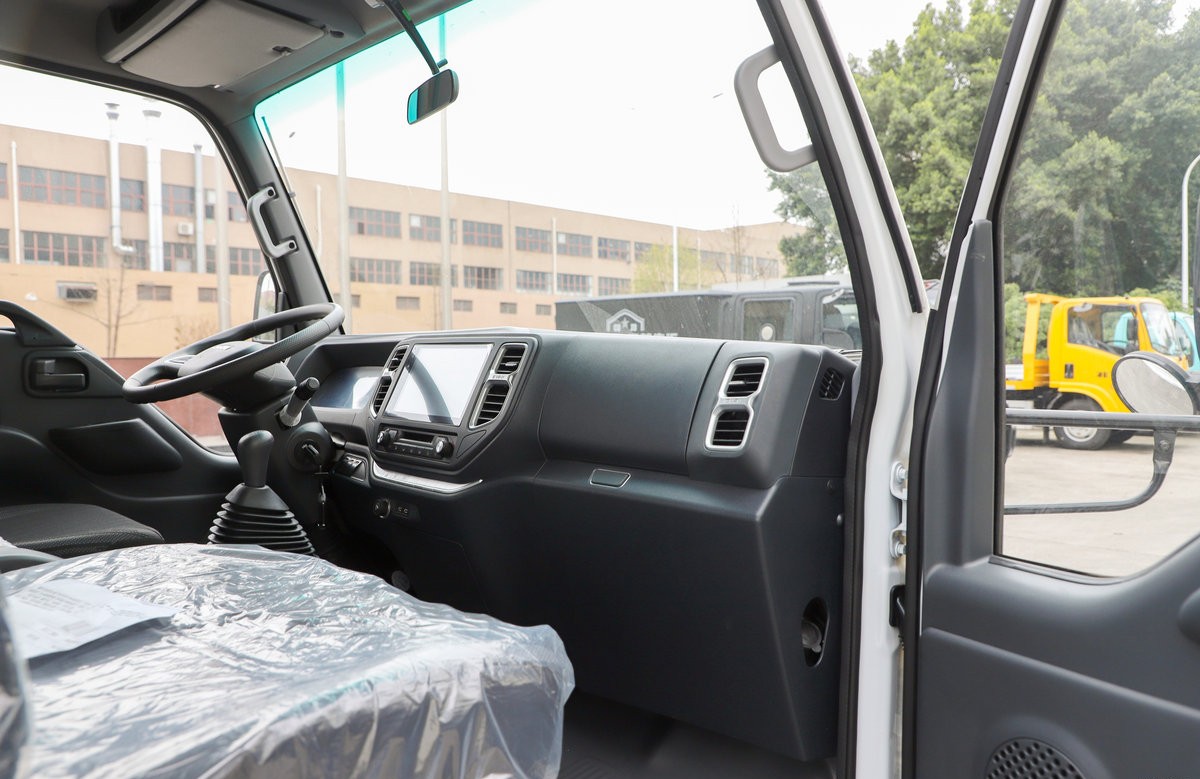

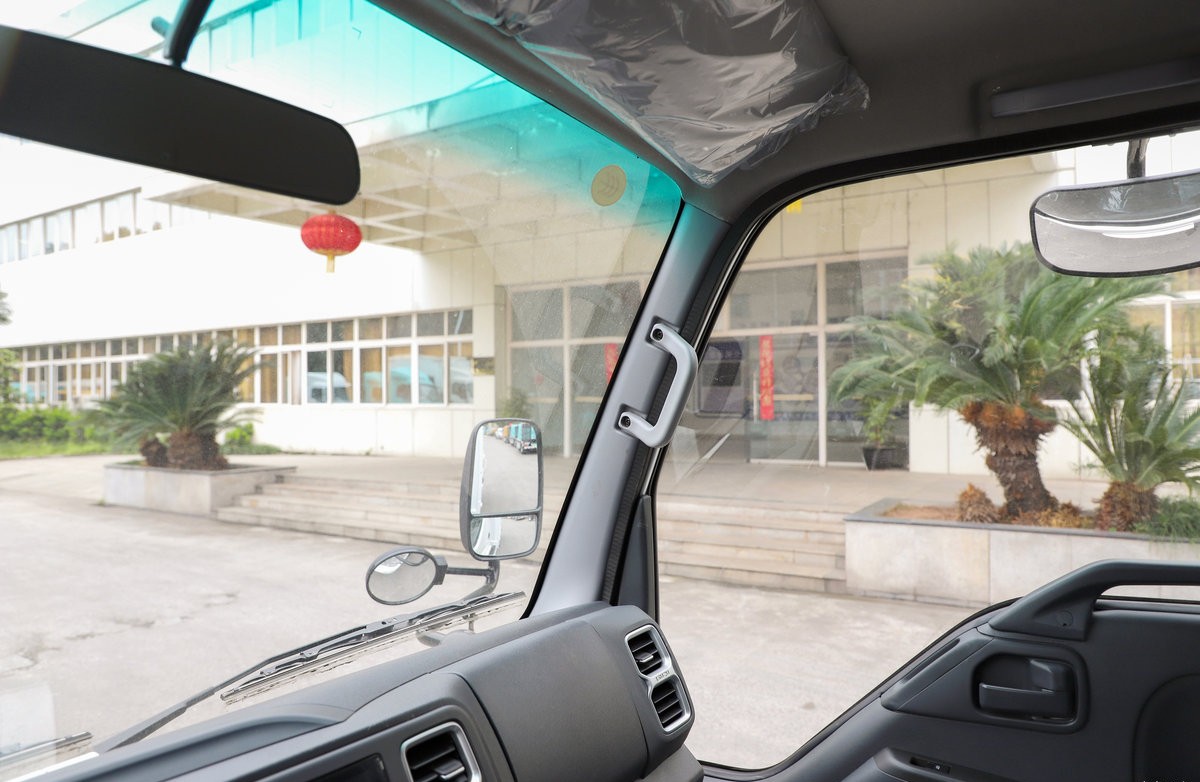

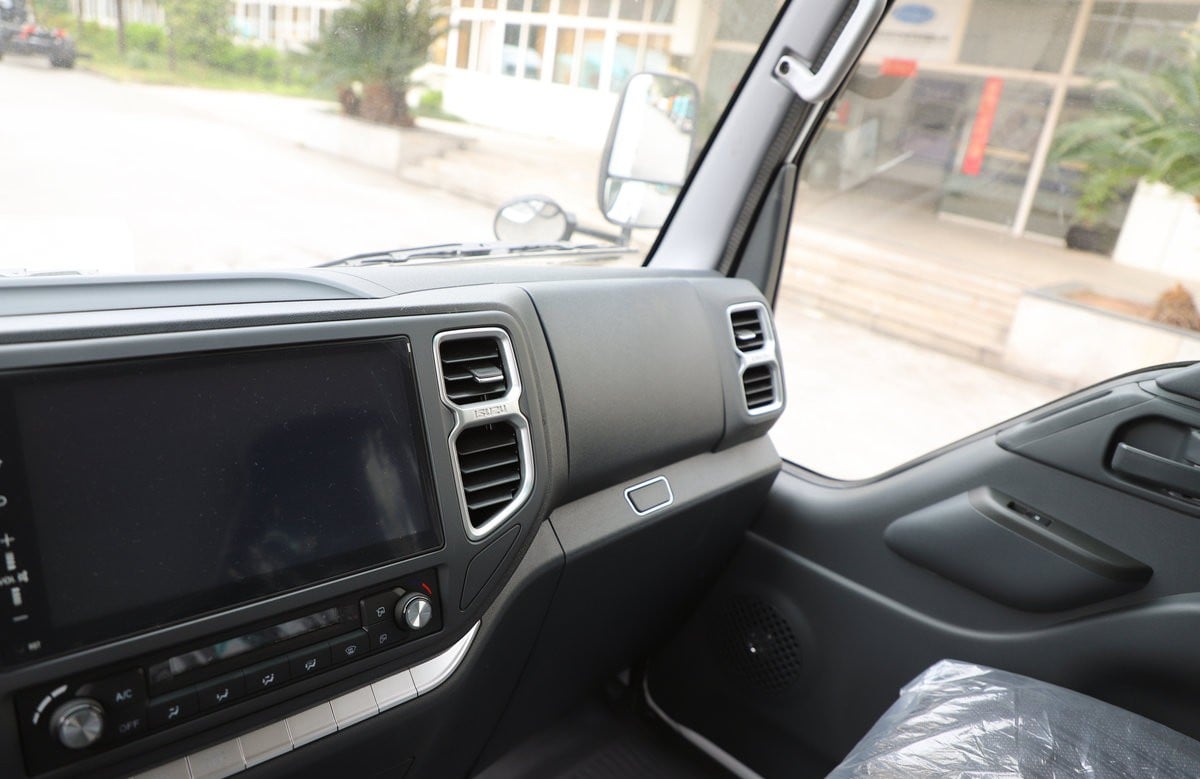

Cab parameters
Cab width:	1690mm	Passenger capacity:	2 people
Number of rows of seats:	single row
Chassis parameters
Front axle allowable load:	1800kg	Rear axle allowable load:	2690kg
Speed atio:	5.571	Number of leaf springs:	3/3+2
tire
Tire specifications:	7.00R16LT 8PR	Number of tires:	6
Braking
Vehicle braking type:	air brake	Parking brake:	Air brake
Front wheel brakes:	Drum	Rear wheel brakes:	Drum
