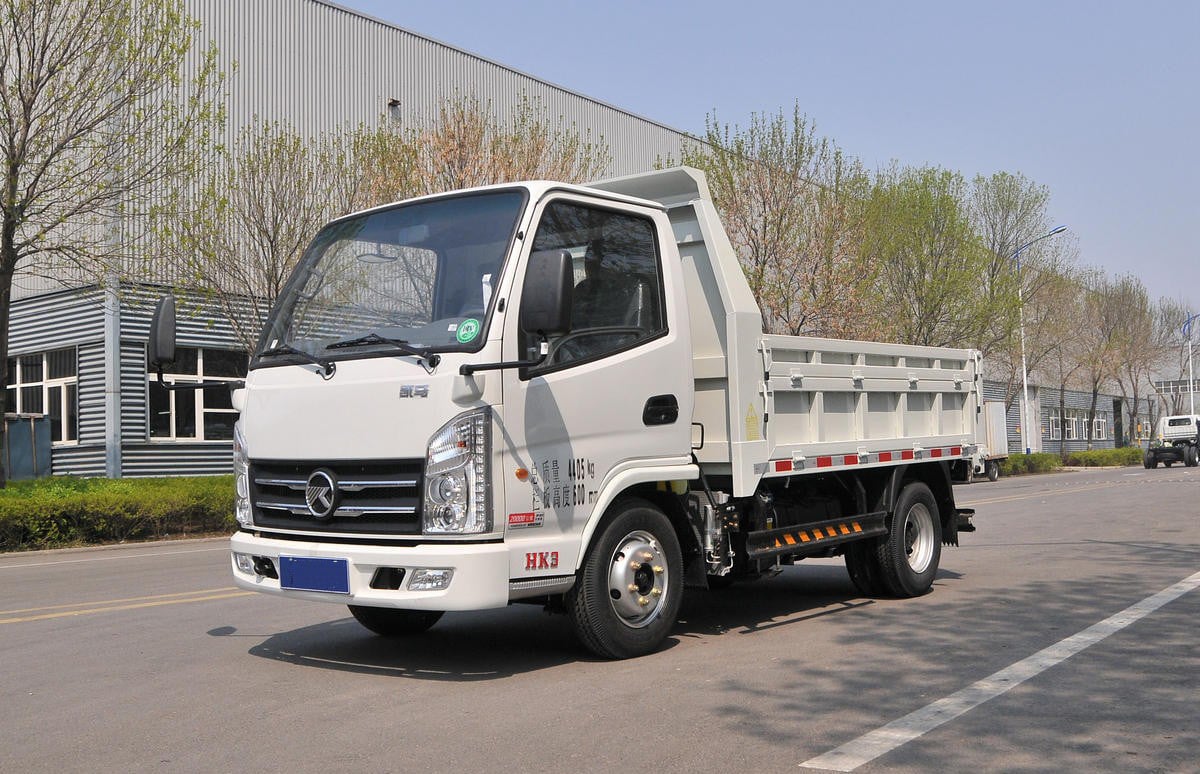

KAMA Mini Dumper Truck

Introduction

Introduction

Basic Information
Driver's license:	A1, A2, B1, B2, C1	Model number announced:	KMC3040HA26D5
Drive type:	4X2	Wheelbase:	2600mm
engine:	Weichai WP2.3Q95E50	Transmission:	Monvo MR528
Rear axle ratio:	4.875	Vehicle length:	4.99 meters
Vehicle width:	1.85 meters	Vehicle height:	2.23 meters
Front track:	1395mm	Rear track:	1375mm
Total vehicle weight:	2.28 tons	Rated load:	1.93 tons
Total mass:	4.405 tons	Tonnage class:	light truck
Approach angle:	18 degrees	Departure angle:	17 degrees
Place of origin:	Shouguang, Shandong	Market Segmentation:	Engineering Transportation
Energy type:	diesel fuel	*License plate (yellow/blue):	Yellow card
Engine parameters
Engine model:	Weichai WP2.3Q95E50	Engine brand:	Weichai
Number of cylinders:	4-cylinder	Fuel type:	diesel fuel
Displacement:	2.29L	Emission standards:	National V emission standard
Maximum horsepower:	95 horsepower	Maximum output power:	70kW
Maximum torque:	245Nm	Maximum torque speed:	1700-2300rpm
Rated speed:	3200rpm	Engine type:	Common rail + SCR
Transmission parameters
Transmission model:	Monvo MR528	Gearbox brand:	Monvoie
Forward gear:	5 gears	Number of inverted boxes:	1

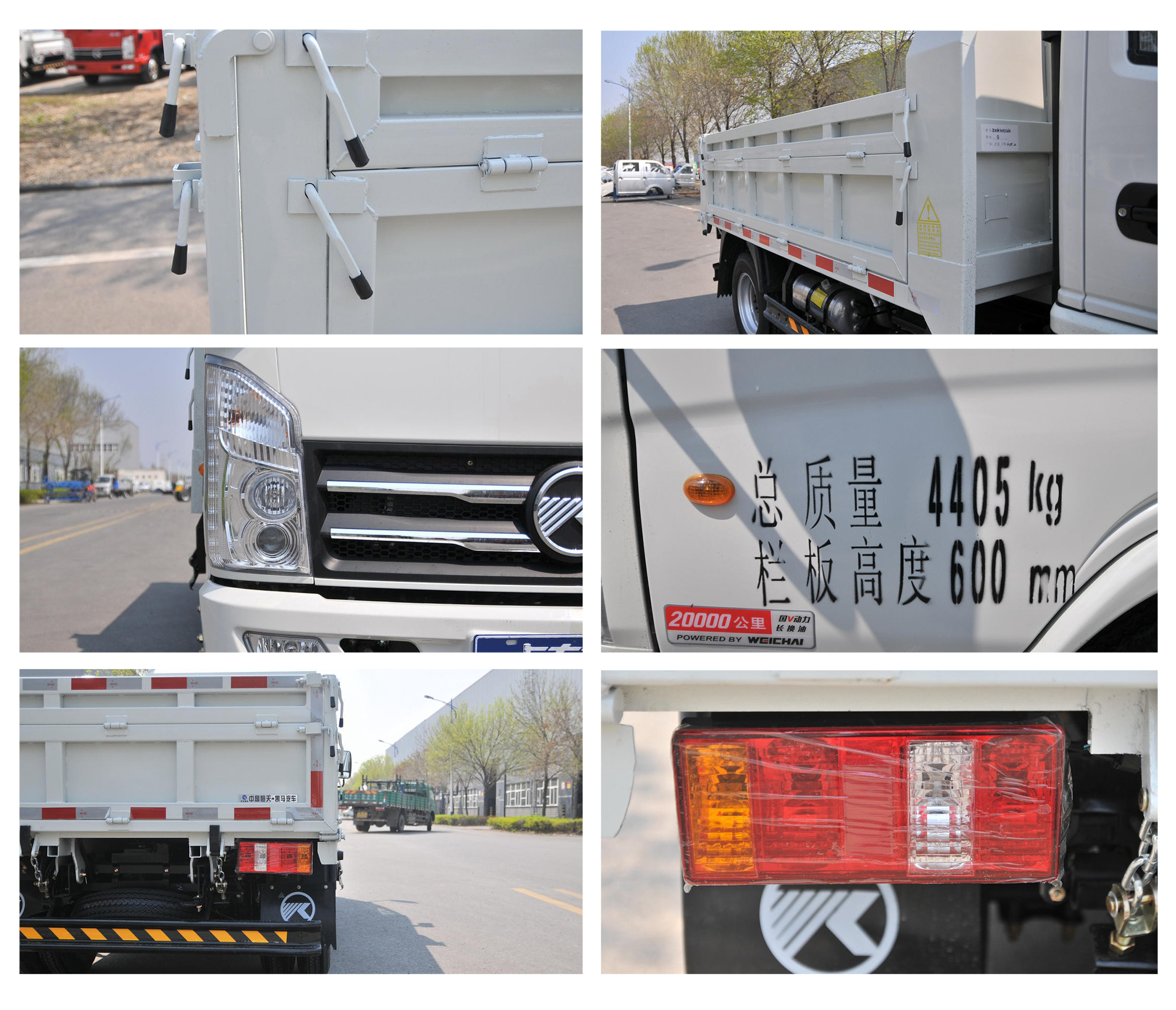

Cargo box parameters
Cargo box length:	3.18 meters	Cargo box width:	1.72 meters
Cargo box height:	0.6 meters	Cargo container type:	Self-unloading
Unloading method:	Self-unloading	*Internal width of the cargo compartment:	1.720000029

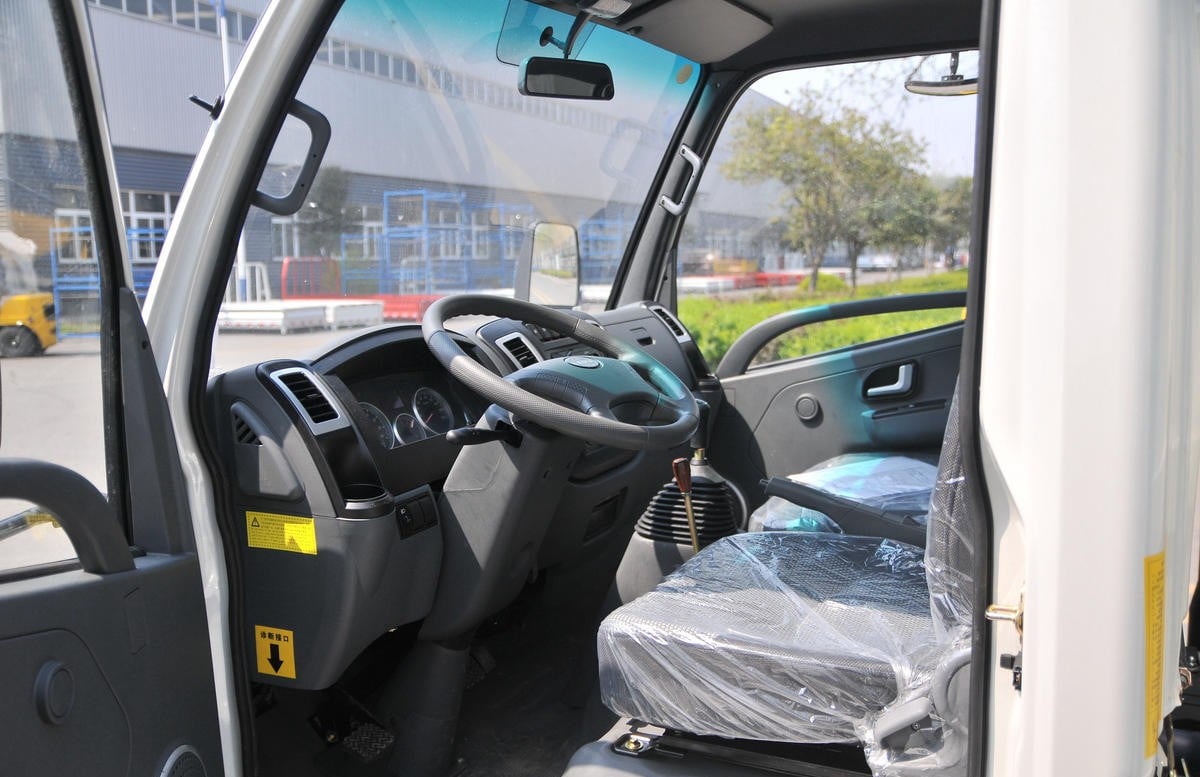

Cab parameters
Driver's cab:	flat top	Cab width:	1580mm
fuel tank
Fuel tank capacity:	55L
Chassis parameters
Front axle allowable load:	1585kg	Rear axle allowable load:	2820kg
Speed atio:	4.875	Number of leaf springs:	9/8+4,3/5+3
tire
Tire specifications:	6.00-14LT,6.00-15LT,6.00R15LT 10PR	Number of tires:	6
*Tire specifications (metric):	6
